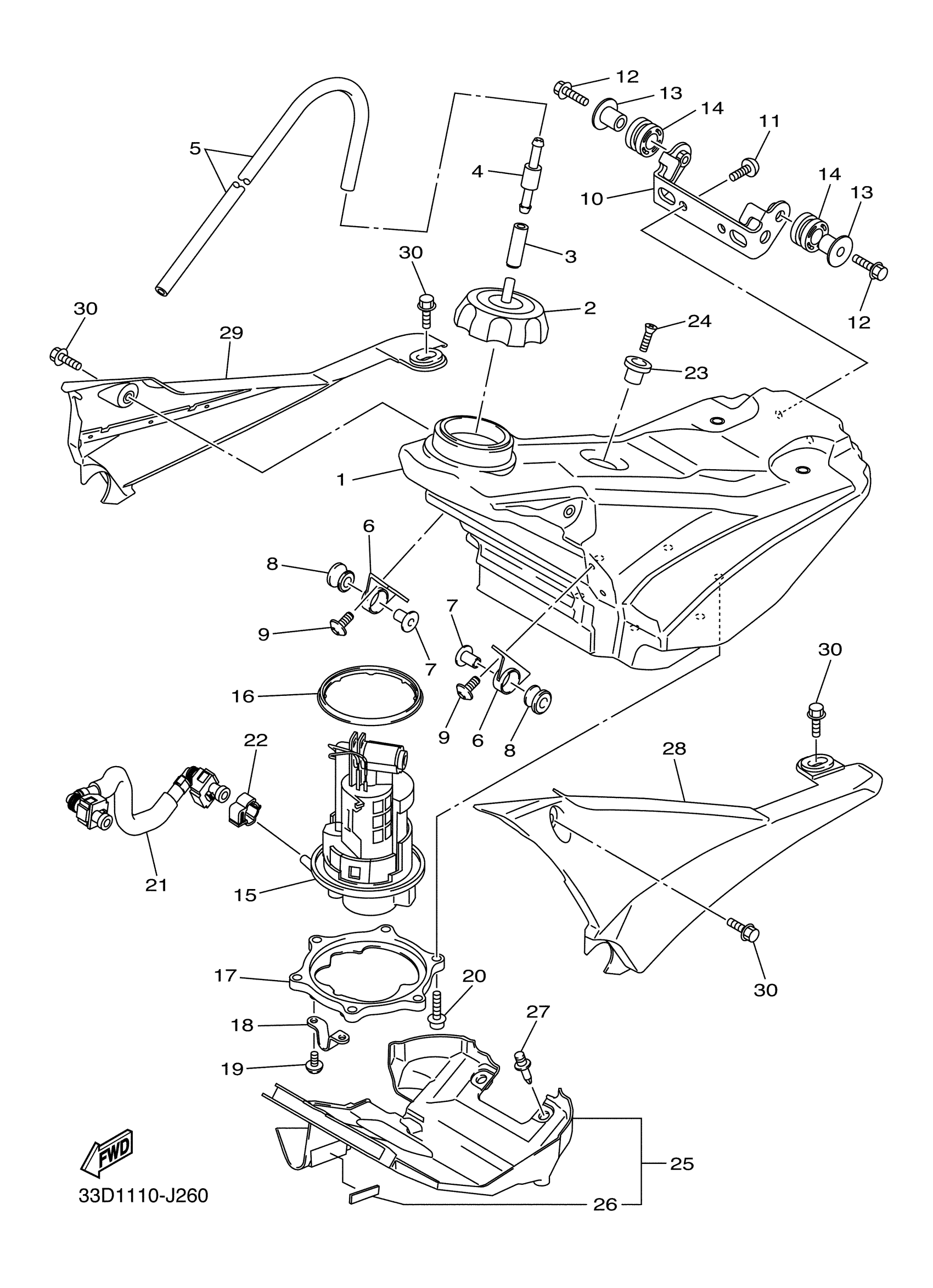

Yamaha YZ450FZW (YZ450F) 33D10 2010 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

33D-24110-00-00

Unavailable

2

CAP ASSY

5NY-24610-10-00

$61.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

5

HOSE (L420)

90445-092K1-00

$12.49

6

HOLDER, DAMPER

33D-24144-00-00

Unavailable

7

COLLAR

90387-06091-00

$8.49

8

GROMMET(4AA)

90480-18549-00

$10.49

9

BOLT, BUTTON HEAD

92017-06016-00

$8.49

10

HOLDER

33D-2419A-00-00

$61.99

11

BOLT, BUTTON HEAD

92017-06016-00

$8.49

12

BOLT, FLANGE

95022-06025-00

$3.62

13

COLLAR

90387-06236-00

$7.49

14

GROMMET

90480-01023-00

$5.60

15

FUEL PUMP COMP.

33D-13907-02-00

$536.99

16

O-RING

33D-24486-00-00

Unavailable

17

BRACKET, FUEL PUMP

33D-24491-00-00

Unavailable

18

BRACKET, FUEL TANK 2

33D-24192-00-00

Unavailable

19

SCREW, BINDING

98907-05008-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

Unavailable

21

PIPE, FUEL 1

33D-13971-01-00

Unavailable

22

CLAMP 1

33D-24135-00-00

Unavailable

23

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

24

SCREW, FLAT HEAD

98702-06025-00

Unavailable

25

COVER

33D-24217-00-00

Unavailable

26

DAMPER

33D-24665-00-00

Unavailable

27

RIVET

90269-07001-00

Unavailable

28

TANK SIDE COVER ASSY 1

33D-24106-00-00

Unavailable

29

TANK SIDE COVER ASSY 2

33D-24108-00-00

Unavailable

30

BOLT, FLANGE

90105-06064-00

Unavailable
