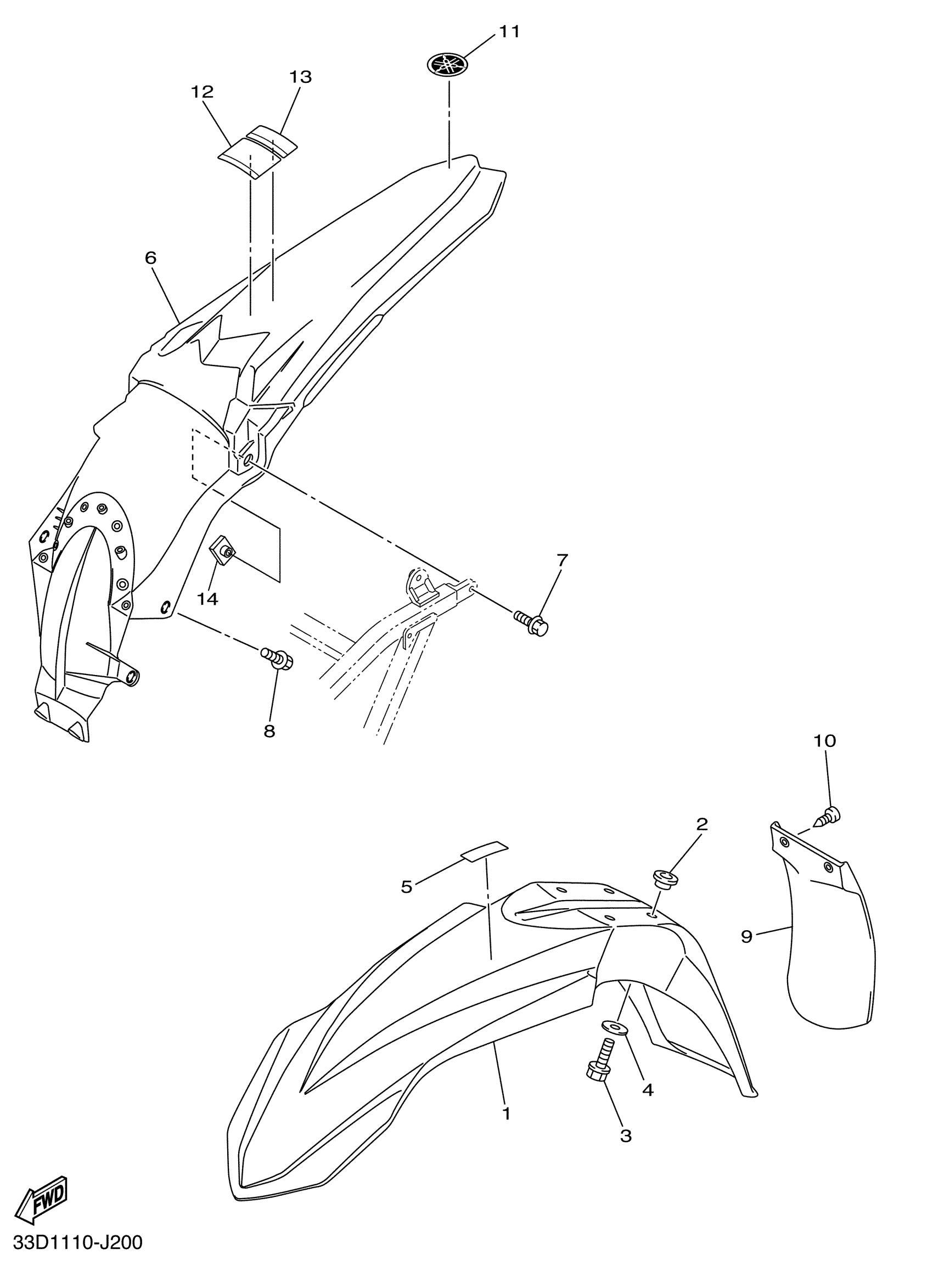

Yamaha YZ450FZW (YZ450F) 33D10 2010 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

17D-21511-50-00

$26.59

2

COLLAR

90387-06259-00

$5.76

3

BOLT, FLANGE

90105-06127-00

$5.75

4

WASHER, PLATE

90201-06108-00

Unavailable

5

LABEL, CAUTION

3FB-2415E-02-00

$3.90

6

REAR FENDER COMP.

33D-21610-00-00

Unavailable

7

BOLT, FLANGE

90105-06100-00

$5.20

8

BOLT, FLANGE

90105-06170-00

$3.95

9

GUARD, FLAP

33D-21642-00-00

$21.91

10

SCREW, TAPPING

97702-60016-00

$1.15

11

EMBLEM

3C5-2411B-20-00

$8.11

12

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

13

LABEL 5

3XJ-2151H-A1-00

$6.29

14

NUT, REAR FENDER

5XE-21635-10-00

$11.84
