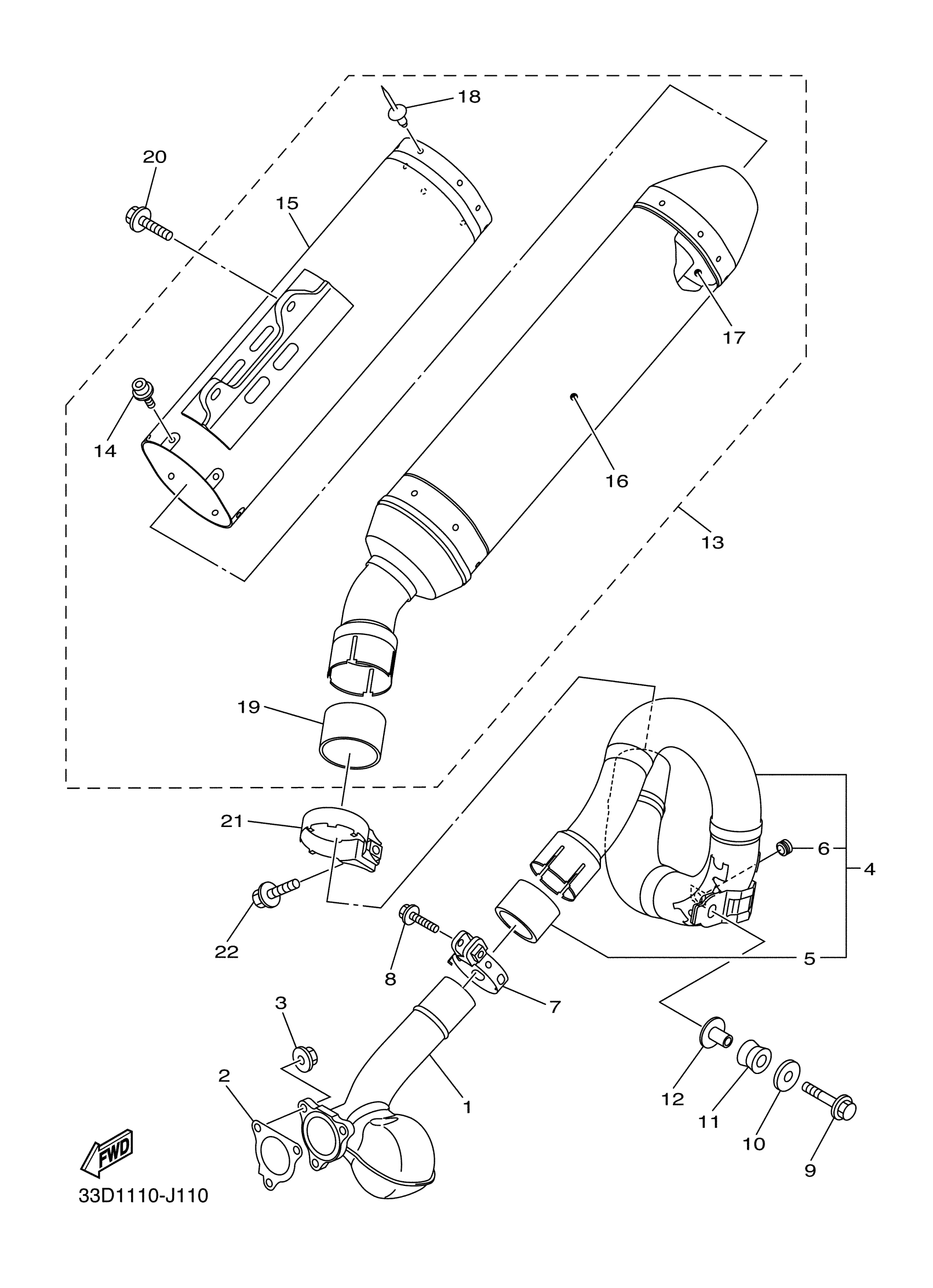

Yamaha YZ450FZW (YZ450F) 33D10 2010 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

33D-14611-00-00

Unavailable

2

GASKET, EXHAUST PIPE

33D-14613-00-00

$5.87

3

NUT, FLANGE(7NB)

95780-06500-00

$1.88

4

EXHAUST PIPE ASSY 2

33D-14620-01-00

Unavailable

5

GASKET, MUFFLER

5PH-14714-00-00

$35.56

6

DAMPER, MUFFLER

2D1-14737-01-00

Unavailable

7

BAND, SILENCER

33D-14788-00-00

$31.23

8

BOLT, FLANGE(3EF)

95024-08035-00

$5.75

9

BOLT, FLANGE

90105-08137-00

$3.30

10

WASHER, PLATE

90201-08061-00

$5.80

11

DAMPER, MUFFLER

5VY-14747-00-00

$11.48

12

COLLAR

90387-08081-00

$6.94

13

SILENCER ASSY

33D-14750-00-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$6.18

15

BODY, SILENCER

33D-1466G-00-00

Unavailable

16

FIBER

33D-1469A-00-00

Unavailable

17

FIBER

2S2-1469F-00-00

Unavailable

18

. RIVET, BLIND

90267-48084-00

$2.25

19

GASKET, MUFFLER

8GL-14714-00-00

Unavailable

20

BOLT, WITH WASHER

90119-08133-00

Unavailable

21

BAND, SILENCER

8GL-14789-00-00

Unavailable

22

BOLT, FLANGE(4GY)

95024-08025-00

Unavailable
