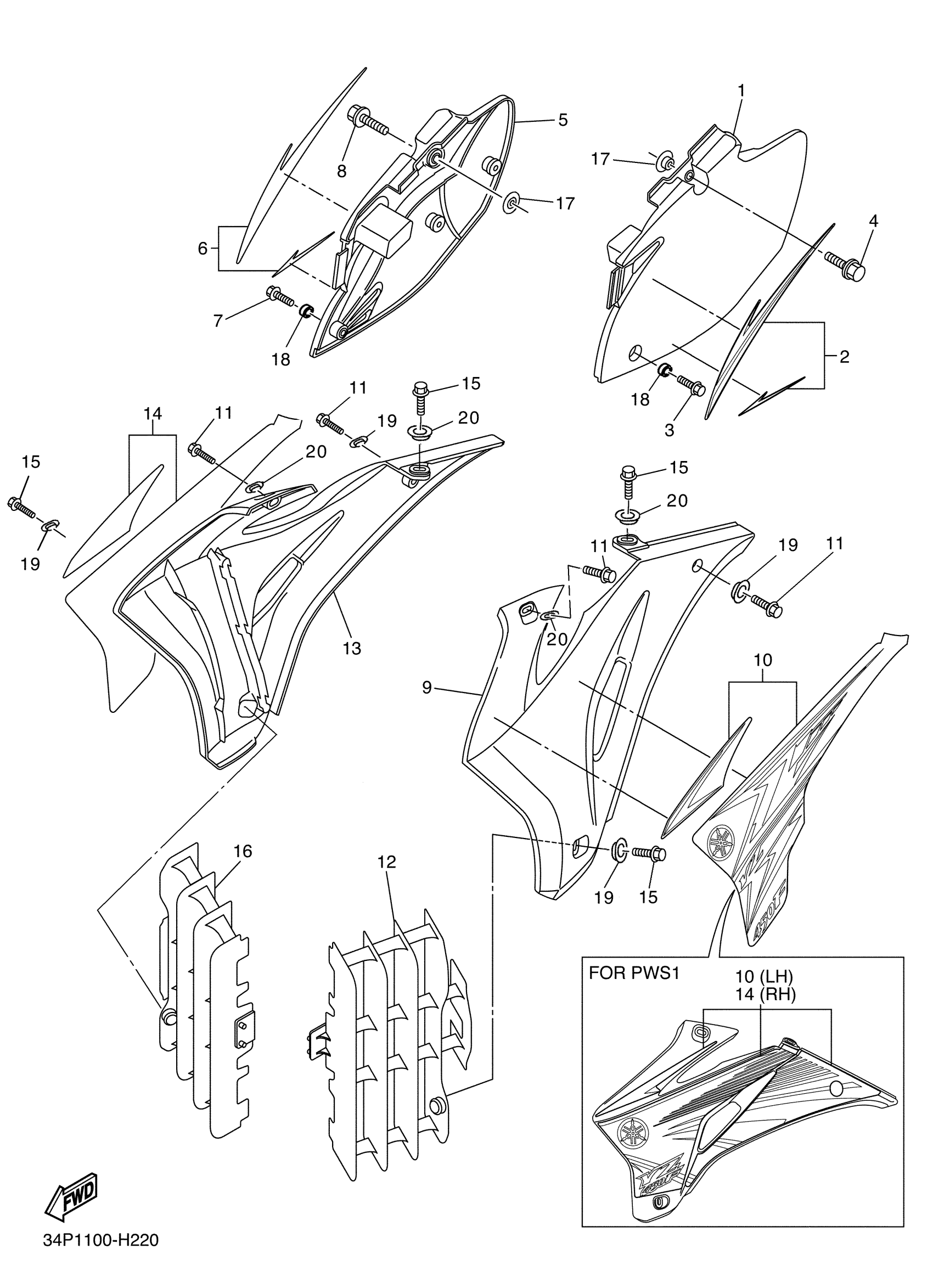

Yamaha YZ450FYW (YZ450F) 34P10 2009 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

5XC-21710-90-00

$26.45

2

GRAPHIC SET (DEEP PURPLISH BLUE SOLID E)

34P-2167A-00-00

Unavailable

3

BOLT, FLANGE

90105-06103-00

$3.96

4

BOLT, WITH WASHER

90119-08095-00

$5.81

5

SIDE COVER ASSY 2

5XC-21720-90-00

$30.51

6

GRAPHIC SET 2

34P-2167B-00-00

Unavailable

7

BOLT, FLANGE

90105-06103-00

$3.96

8

BOLT, WITH WASHER

90119-08095-00

$5.81

9

SIDE COVER ASSY 3 (INDIGO) (INDIGO) (PURPLISH WHITE SOLID 1)

2S2-21730-70-00

Unavailable

9

SIDE COVER ASSY 3

5XC-21730-90-00

$32.40

10

GRAPHIC SET 1

34P-2173L-09-00

Unavailable

11

BOLT, FLANGE

90105-06064-00

$2.49

12

PANEL 1

2S2-2172A-70-00

$33.73

13

SIDE COVER ASSY 4

2S2-21740-70-00

$39.69

13

SIDE COVER ASSY 4

5XC-21740-90-00

Unavailable

14

GRAPHIC SET 2 (DEEP PURPLISH BLUE SOLID E)

34P-2174L-00-00

$103.51

15

BOLT, FLANGE

90105-06064-00

$2.49

16

PANEL 1

2S2-2172A-80-00

Unavailable

17

COLLAR

5BE-21749-00-00

Unavailable

18

COLLAR

90387-06009-00

Unavailable

19

COLLAR

5TA-21749-00-00

Unavailable

20

COLLAR

5XC-21749-90-00

Unavailable
