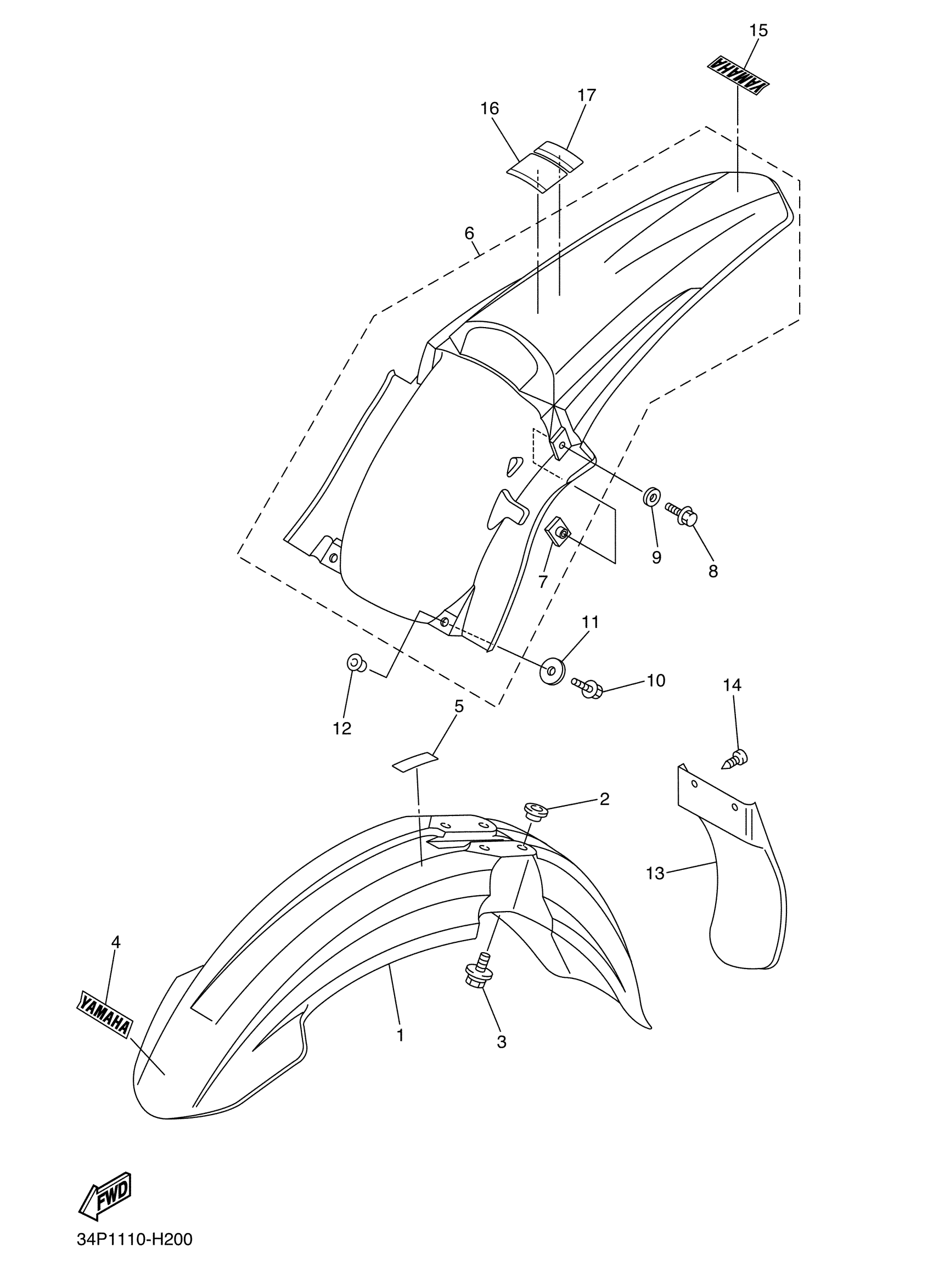

Yamaha YZ450FYW (YZ450F) 34P10 2009 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

1

FENDER, FRONT

2S2-21511-70-00

Unavailable

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

REAR FENDER COMP.

2S2-21610-70-00

$55.99

6

REAR FENDER COMP.

5XC-21610-90-00

$39.99

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

BOLT, FLANGE

90105-06100-00

$7.49

9

WASHER, PLATE

90201-06104-00

$5.60

10

BOLT, FLANGE

90105-06106-00

$3.76

11

WASHER, PLATE

90201-06085-00

$3.02

12

COLLAR

90387-06009-00

$10.49

13

GUARD, FLAP

5TA-21642-00-00

$39.99

14

SCREW, TAPPING

97702-60016-00

Unavailable

15

EMBLEM, YAMAHA

3WF-2153E-11-00

Unavailable

16

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

17

LABEL 5

3XJ-2151H-A1-00

Unavailable
