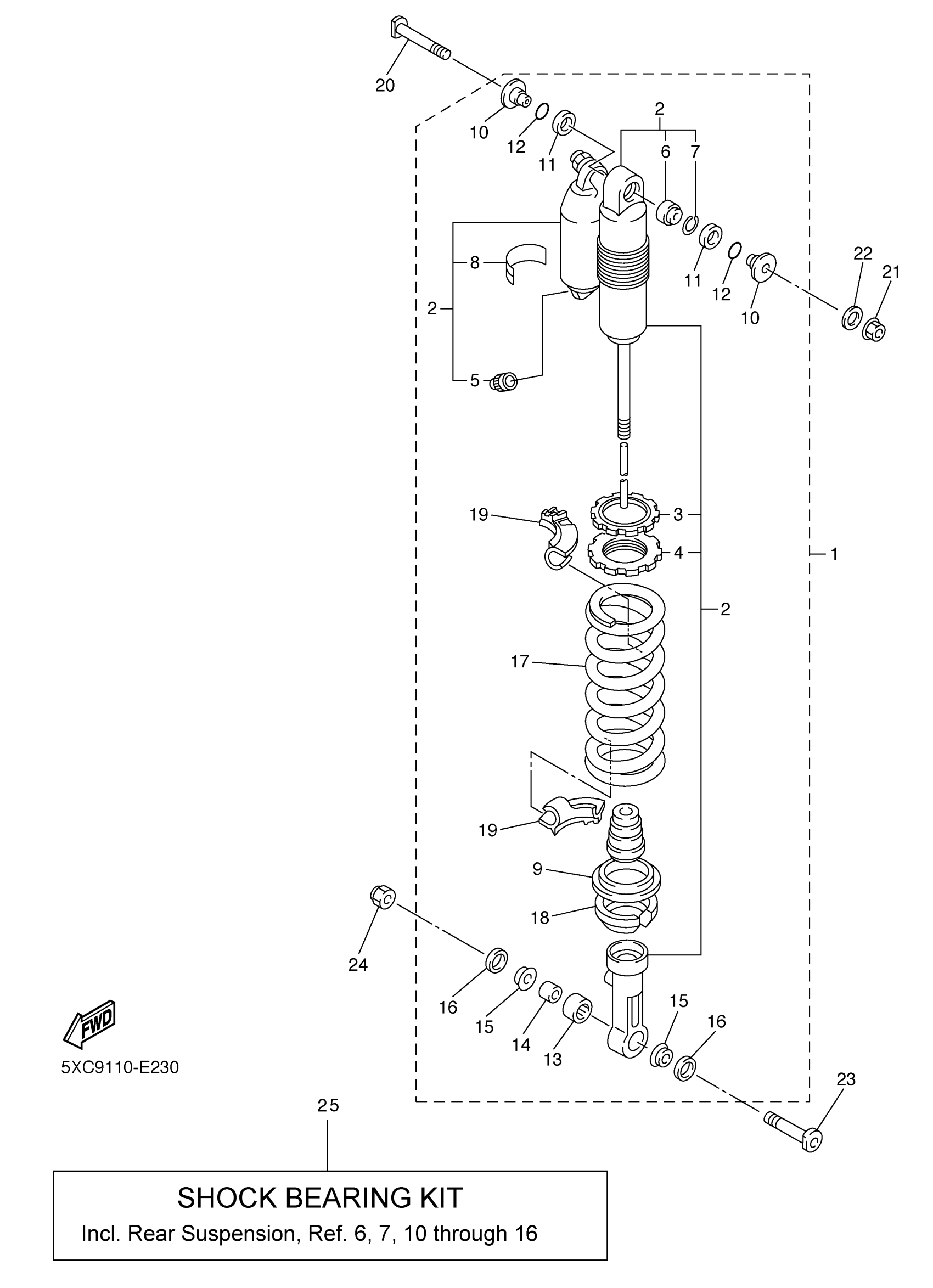

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2S2-22200-A0-00

Unavailable

1

SHOCK ABSORBER ASSY, REAR

2S2-22200-F0-00

Unavailable

2

. DAMPER SUB ASSY

2S2-22201-A0-00

Unavailable

2

DAMPER SUB ASSY

2S2-22201-F0-00

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

4

SEAT, SPRING UPPER

1C3-22213-L0-00

$43.99

5

CAP, AIR VALVE

509-23184-L0-00

$6.99

6

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

7

CIRCLIP

5DH-23183-00-00

$5.49

8

LABEL, WARNING

4AA-22259-80-00

$13.49

9

GUIDE, SPRING 2

5MV-22224-00-00

$24.99

10

COLLAR, DISTANCE

1C3-22253-50-00

$45.99

11

SEAL, DUST

3JE-22475-00-00

$13.49

12

SEAL, RING

4EW-22474-00-00

$6.99

13

BEARING

5UN-22176-00-00

$32.99

14

BUSH

5MV-22184-00-00

Unavailable

15

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

15

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

16

SEAL, DUST

5NY-22475-00-00

Unavailable

17

. SPRING (K=54N/MM)

1C3-22212-50-00

Unavailable

17

SPRING

1C3-22212-B0-00

Unavailable

18

GUIDE, SPRING 1

1C3-22214-50-00

Unavailable

19

SPRING SEAT

1C3-22565-00-00

Unavailable

20

BOLT 2

5XE-22242-01-00

Unavailable

21

NUT, S/L FLANGE

95602-10200-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

23

BOLT 1

5NY-22241-00-00

Unavailable

24

NUT, SELF-LOCKING

90185-10012-00

Unavailable

25

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable
