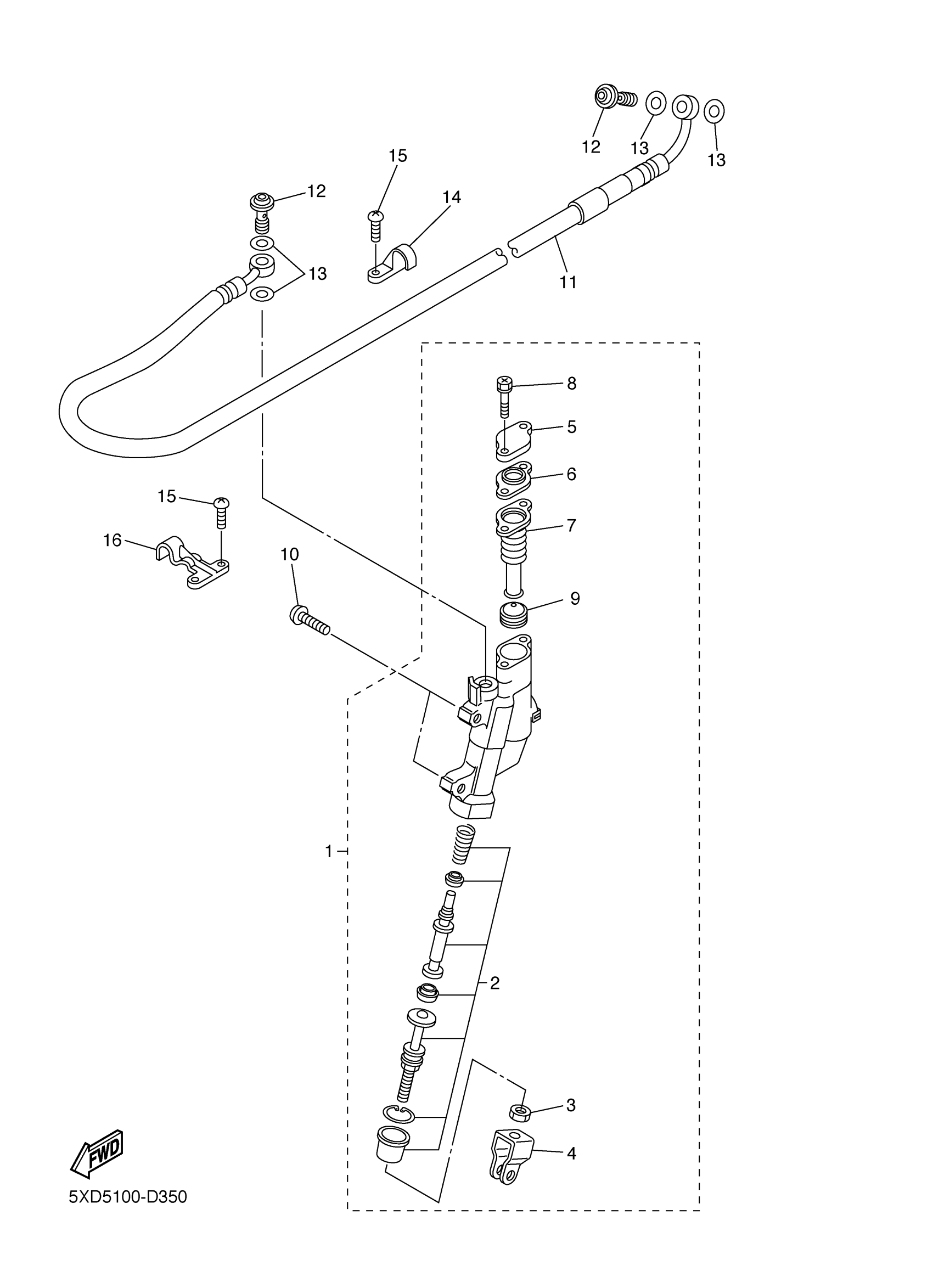

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 REAR MASTER CYLINDER Diagram

Description

Price

RR. MASTER CYLINDER ASSY.

1C3-2583V-00-00

$285.50

CYLINDER KIT, MASTER

5UN-W0042-50-00

$72.61

NUT

5UN-27218-00-00

$3.97

JOINT

5UN-27222-00-00

$14.29

CAP, RESERVOIR

5UN-25852-50-00

$14.24

PLATE, DIAPHRAGM

5UN-2585B-00-00

$5.99

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$11.48

BOLT

5UN-27217-00-00

$4.44

SEPARATOR ASSY

5CG-25715-00-00

$9.87

BOLT

90111-06059-00

$3.65

HOSE, BRAKE 2

5XC-25873-L2-00

Unavailable

BOLT, UNION

90401-10172-00

$3.46

GASKET

90430-10005-00

$6.57

HOLDER, BRAKE HOSE

1C3-25886-50-00

$10.40

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

HOLDER, BRAKE HOSE 2

1C3-25876-50-00

Unavailable
