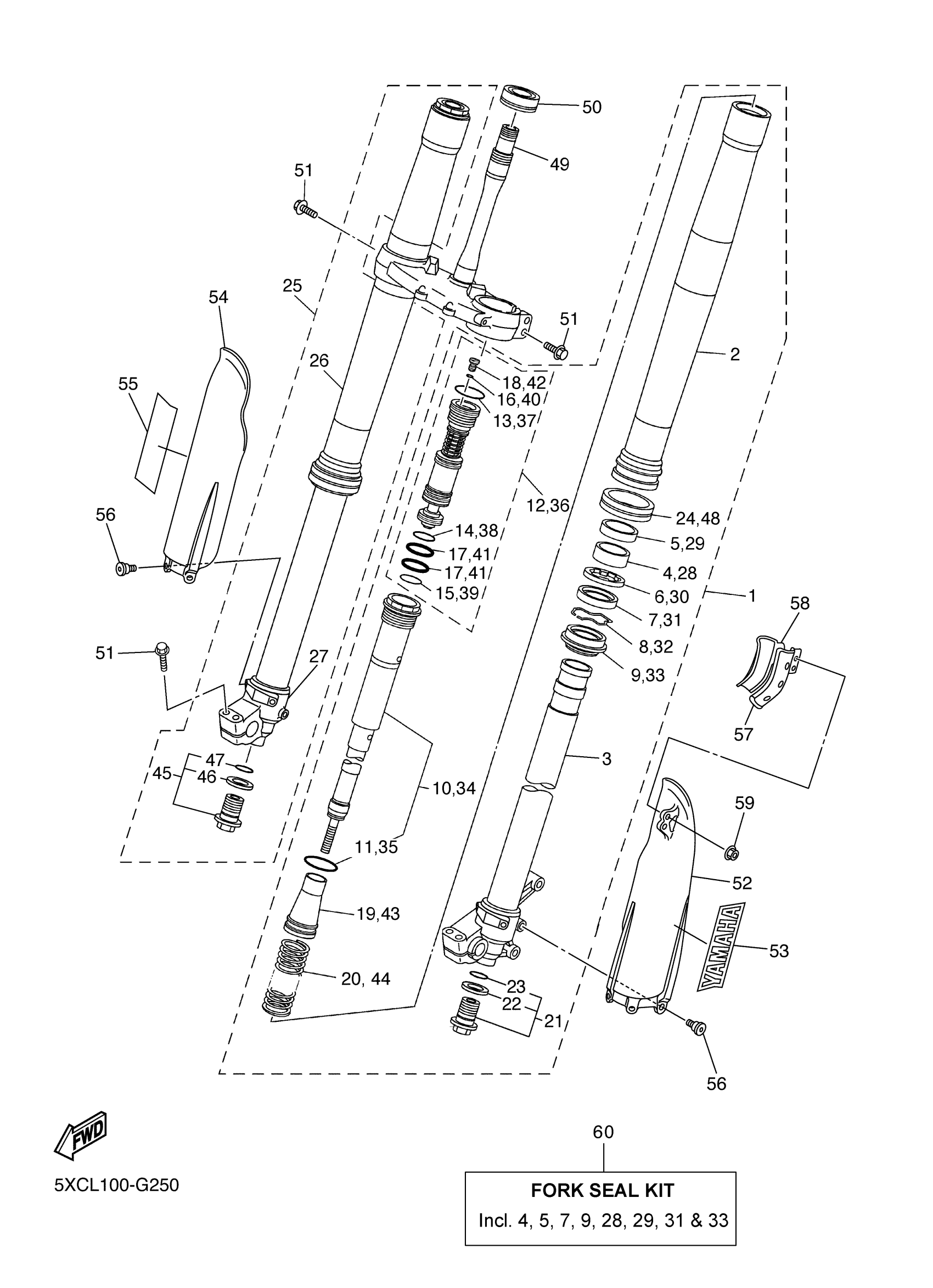

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
2S2-23102-A0-00
Unavailable
2
. TUBE, OUTER (RIGHT)
2S2-23136-00-00
Unavailable
3
. INNER TUBE COMP 2
2S2-23120-00-00
Unavailable
16
O-RING
1C3-23188-R1-00
Unavailable
17
O-RING
1W4-23114-L0-00
Unavailable
18
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
19
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
20
SPRING, FRONT FORK(K=4.6N/MM)
1C3-23141-H1-00
Unavailable
21
BOLT, CAP
5XC-23111-01-00
Unavailable
22
GASKET
2HH-23158-L0-00
Unavailable
23
GASKET
276-23114-01-00
Unavailable
24
PROTECTER GUIDE COMP., 1
5XC-2314F-00-00
Unavailable
25
FRONT FORK ASSY (R.H)
2S2-23103-A0-00
Unavailable
26
. TUBE, OUTER (RIGHT)
2S2-23136-00-00
Unavailable
27
. INNER TUBE COMP 1
2S2-23110-00-00
Unavailable
40
O-RING
1C3-23188-R1-00
Unavailable
41
O-RING
1W4-23114-L0-00
Unavailable
42
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
43
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
44
SPRING, FRONT FORK(K=4.6N/MM)
1C3-23141-H1-00
Unavailable
45
BOLT, CAP
5XC-23111-01-00
Unavailable
46
GASKET
2HH-23158-L0-00
Unavailable
47
GASKET
276-23114-01-00
Unavailable
48
PROTECTER GUIDE COMP., 1
5XC-2314F-00-00
Unavailable
49
UNDER BRACKET COMP.
2S2-23340-10-00
Unavailable
50
BEARING(4SR)
93332-00081-00
Unavailable
51
BOLT, FLANGE
90105-08154-00
Unavailable
52
PROTECTOR 1
5XC-2315H-00-00
Unavailable
53
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
54
PROTECTOR 2
5XC-2315J-00-00
Unavailable
55
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
56
BOLT
90109-06232-00
Unavailable
57
CLAMP
5XC-23466-L0-00
Unavailable
58
CLAMP
5XC-23467-L0-00
Unavailable
59
NUT, FLANGE
95702-06500-00
Unavailable
60
FORK SEAL KIT (TWO FORKS)
1C3-W003B-00-00
Unavailable
