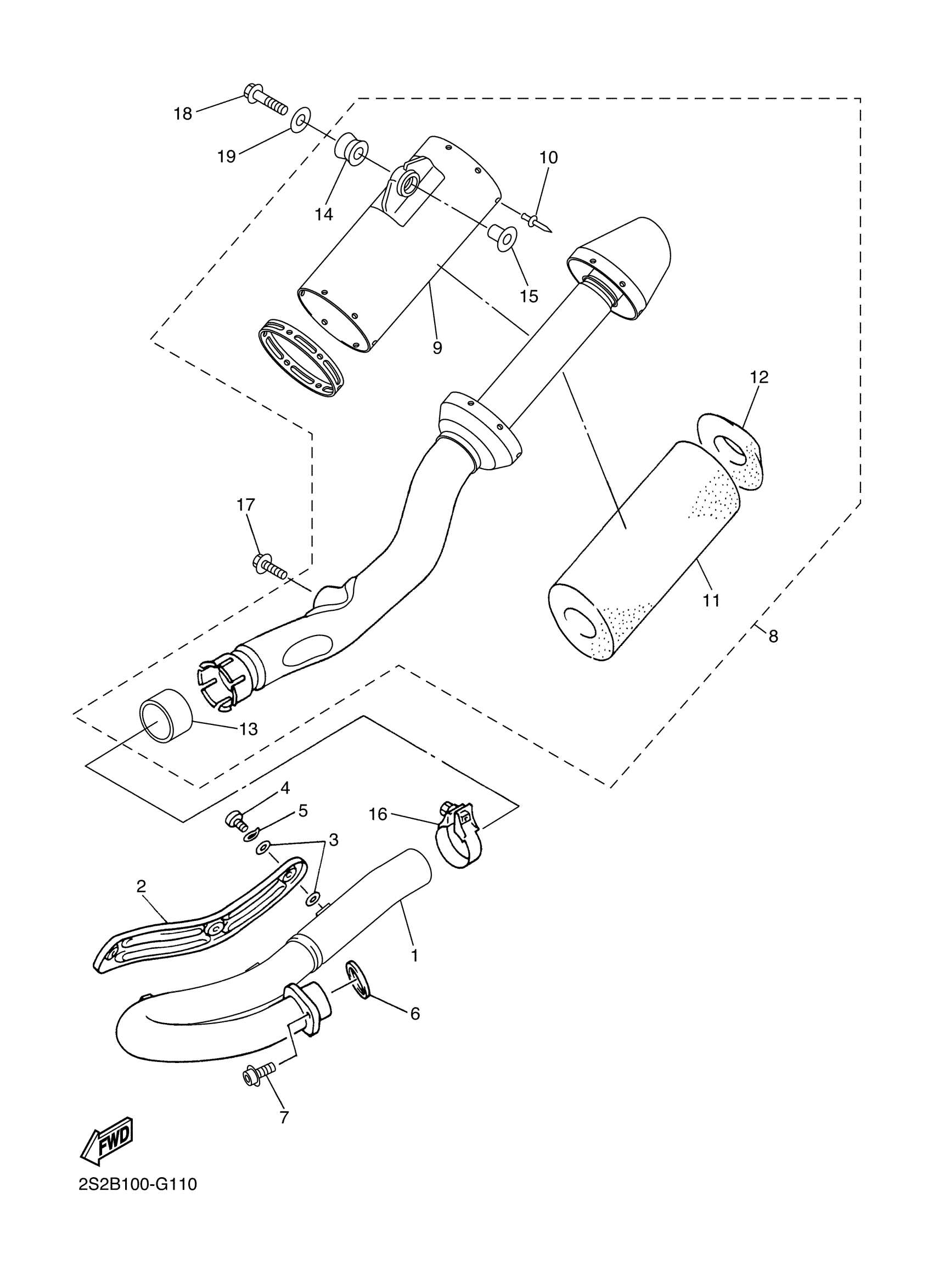

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2S2-14611-30-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5TA-14628-00-00

Unavailable

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

WASHER, WAVE(3RW)

90206-06090-00

$4.89

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$9.15

7

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

$5.75

8

SILENCER ASSY

2S2-14750-B0-00

Unavailable

9

BODY, SILENCER

2S2-1466G-B0-00

$322.29

10

. RIVET, BLIND

90267-48084-00

$2.25

11

FIBER, 11

2S2-1478H-B0-00

$129.27

12

FIBER

2S2-1469F-B0-00

Unavailable

13

GASKET, MUFFLER

5VY-14714-00-00

$23.18

14

DAMPER, MUFFLER

5BE-14747-00-00

$7.13

15

COLLAR

90387-08081-00

$6.94

16

BAND, SILENCER

2S2-14788-00-00

Unavailable

17

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

18

BOLT, FLANGE

90105-08137-00

Unavailable

19

WASHER, PLATE

90201-08061-00

Unavailable
