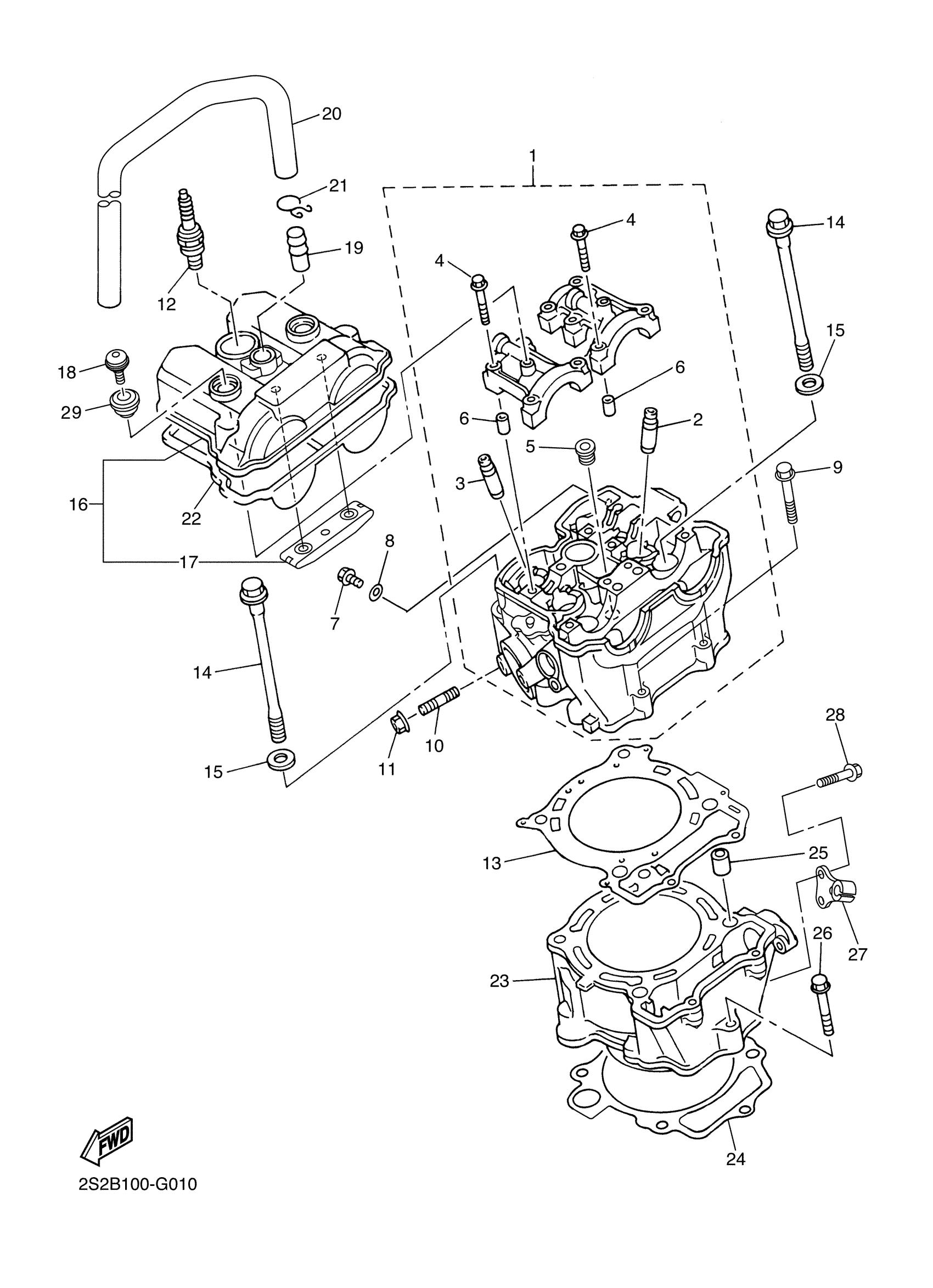

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2S2-11102-11-00

Unavailable

2

GUIDE, INTAKE VALVE

5TA-11133-10-00

$53.99

3

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

BOLT, FLANGE

95022-06010-00

$5.60

8

GASKET 256113960000

90430-06014-00

Unavailable

9

BOLT, FLANGE

95022-06035-00

$3.55

10

BOLT, STUD

90116-08022-00

$7.49

11

NUT,FLANGE(J10)

95702-08500-00

$1.43

12

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

12

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

13

GASKET, CYLINDER HEAD 1

2S2-11181-00-00

$53.99

14

BOLT, FLANGE

90105-10163-00

$10.49

15

WASHER, PLATE

90201-10025-00

Unavailable

16

COVER, CYLINDER HEAD 1

2S2-11190-10-00

Unavailable

17

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

18

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

19

PIPE, BREATHER 2

371-11167-01-00

Unavailable

20

PIPE, BREATHER 1

2S2-11166-00-00

Unavailable

21

CLIP

90467-140A4-00

Unavailable

22

GASKET, HEAD COVER 1

2S2-11193-00-00

Unavailable

23

CYLINDER 1

2S2-11311-11-00

Unavailable

24

GASKET, CYLINDER

2S2-11351-00-00

Unavailable

25

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

26

BOLT, FLANGE

95022-06035-00

$3.55

27

HOLDER, CLUTCH CABLE

2S2-15441-00-00

Unavailable

28

BOLT, FLANGE

95022-06016-00

Unavailable

29

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable
