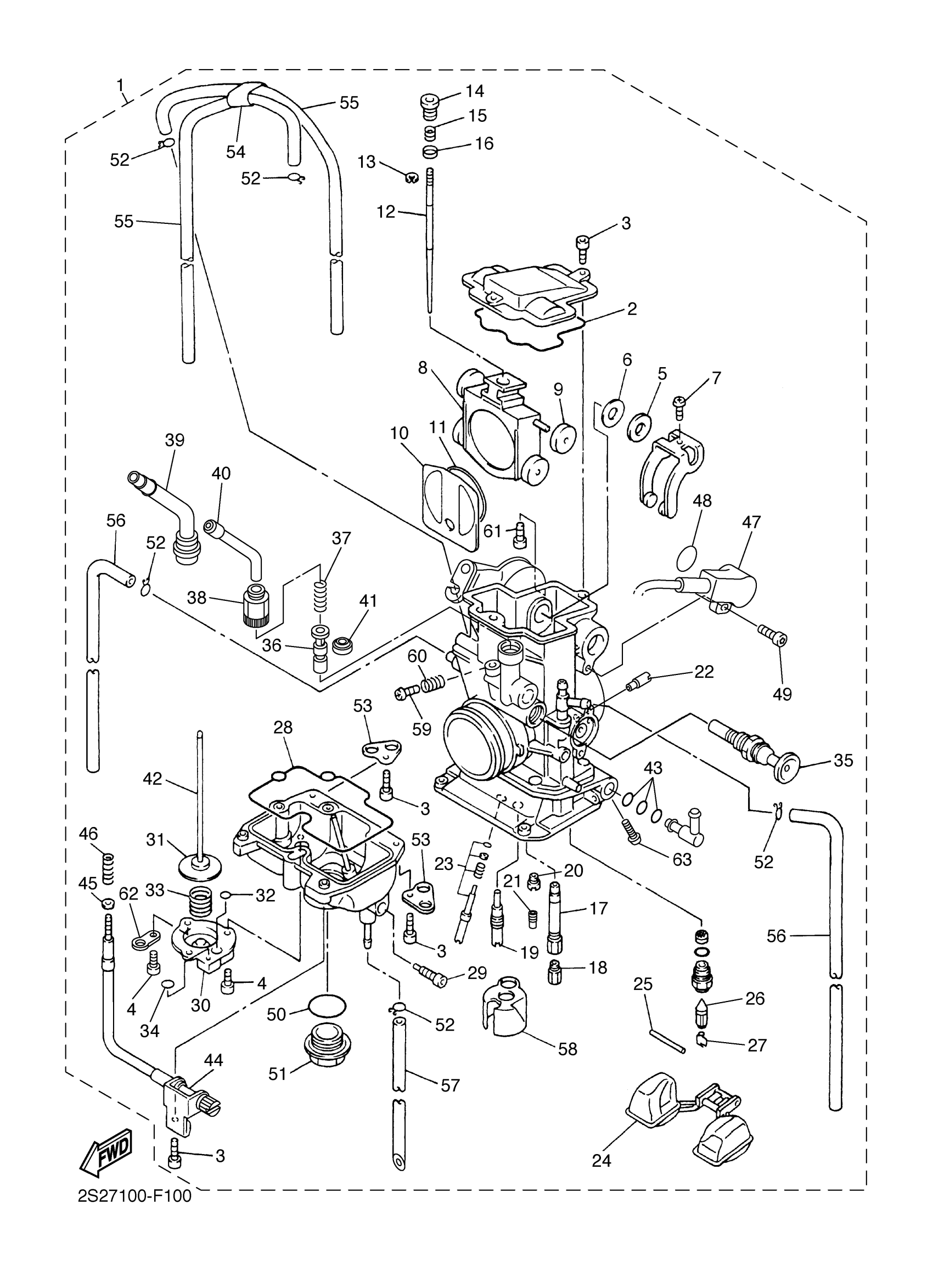

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
2S2-14101-B0-00
Unavailable
8
VALVE, VACUUM CONTROL
2S2-14388-00-00
Unavailable
12
NEEDLE
5TA-14916-LN-00
Unavailable
12
NEEDLE
5TA-14916-LP-00
Unavailable
12
NEEDLE
5TA-14916-LS-00
Unavailable
12
NEEDLE
5TA-14916-LT-00
Unavailable
12
NEEDLE
5TA-14916-LU-00
Unavailable
12
NEEDLE
5TA-14916-P1-00
Unavailable
12
NEEDLE
5TA-14916-PN-00
Unavailable
12
NEEDLE
5TA-14916-PP-00
Unavailable
12
NEEDLE
5TA-14916-PR-00
Unavailable
12
NEEDLE
5TA-14916-PS-00
Unavailable
12
NEEDLE
5TA-14916-PT-00
Unavailable
12
NEEDLE
5TA-14916-PU-00
Unavailable
13
CLIP
3TJ-14159-40-00
Unavailable
14
SCREW, ADJUST
5JG-14521-00-00
Unavailable
15
SPRING
5JG-14275-00-00
Unavailable
16
COLLAR
5JG-14264-00-00
Unavailable
17
JET, NEEDLE
5XD-14947-00-00
Unavailable
18
JET, MAIN (#150)
4MX-14943-37-00
Unavailable
18
JET, MAIN (#155)
4MX-14943-38-00
Unavailable
18
JET, MAIN (#160)
4MX-14943-39-00
Unavailable
18
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
18
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
18
JET, MAIN (#148)
4MX-14943-87-00
Unavailable
18
. JET, MAIN (#152)
4MX-14943-88-00
Unavailable
18
JET, MAIN (#158)
4MX-14943-89-00
Unavailable
18
JET, MAIN (#162)
4MX-14943-90-00
Unavailable
18
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
18
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
19
JET, SLOW (#38)
4MX-14948-02-00
Unavailable
19
JET (#40)
4MX-14948-03-00
Unavailable
19
JET, PILOT (#42)
4MX-14948-04-00
Unavailable
19
JET, PILOT (#45)
4MX-14948-05-00
Unavailable
19
JET, PILOT (#48)
4MX-14948-06-00
Unavailable
19
JET, PILOT (#50)
4MX-14948-07-00
Unavailable
19
JET, PILOT (#52)
4MX-14948-08-00
Unavailable
20
JET
3TJ-1494F-14-00
Unavailable
20
JET
3TJ-1494F-15-00
Unavailable
20
JET
3TJ-1494F-16-00
Unavailable
20
JET
3TJ-1494F-17-00
Unavailable
20
JET (#78)
3TJ-1494F-18-00
Unavailable
21
JET
4JT-1494F-05-00
Unavailable
21
JET (#50)
4JT-1494F-07-00
Unavailable
21
JET (#55)
4JT-1494F-09-00
Unavailable
21
JET (#60)
4JT-1494F-11-00
Unavailable
21
JET (#65)
4JT-1494F-13-00
Unavailable
22
JET,SAJ (#100)
5TA-14943-27-00
Unavailable
23
PILOT SCREW SET
5NL-14105-00-00
Unavailable
24
FLOAT
4SR-14985-00-00
Unavailable
25
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
26
VALVE, NEEDLE
4MX-14392-00-00
Unavailable
27
CLIP
633-14159-00-00
Unavailable
28
GASKET, FLOAT CHAMBER
5JG-14984-00-00
Unavailable
29
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
30
COVER 1
3TJ-14293-40-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-16-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-17-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-18-00
Unavailable
32
GASKET
3TJ-14536-40-00
Unavailable
33
SPRING, DIAPHRAGM
3TJ-14933-40-00
Unavailable
34
. O-RING
6H4-14561-00-00
Unavailable
35
PLUNGER, STARTER
5XC-14171-00-00
Unavailable
36
PLUNGER, STARTER
5TA-14371-00-00
Unavailable
37
SPRING, PLUNGER
5TA-14335-00-00
Unavailable
38
SCREW
5TA-14991-00-00
Unavailable
39
CAP, PLUNGER
2S2-14374-00-00
Unavailable
40
GUIDE, CABLE
5TA-14155-00-00
Unavailable
41
SEAL
5TA-14997-00-00
Unavailable
42
ROD, STARTER
5JG-14379-00-00
Unavailable
43
O-RING
3TJ-14564-40-00
Unavailable
44
SCREW, THROTTLE
5XC-14922-00-00
Unavailable
45
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
46
SPRING, THROTTLE STOP
5TA-14934-00-00
Unavailable
47
THROTTLE SENSOR ASSY
5XC-85885-00-00
Unavailable
48
O-RING
33D-14562-00-00
Unavailable
49
SCREW
1DX-14216-00-00
Unavailable
50
O-RING
4MX-14561-00-00
Unavailable
51
PLUG, SCREW
4MX-14115-00-00
Unavailable
52
CLIP
3TJ-14137-40-00
Unavailable
53
PLATE
5BE-14146-00-00
Unavailable
54
HOLDER
5TA-14261-00-00
Unavailable
55
PIPE
5UL-14196-00-00
Unavailable
56
PIPE
5TA-14197-00-00
Unavailable
57
HOSE
5TJ-14987-00-00
Unavailable
58
PLATE
5JG-14346-00-00
Unavailable
59
SCREW
5JG-14565-00-00
Unavailable
60
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
61
SCREW
5JG-14591-09-00
Unavailable
62
. PLATE
5PA-14146-00-00
Unavailable
63
SCREW, PAN HEAD
5XD-14325-09-00
Unavailable
