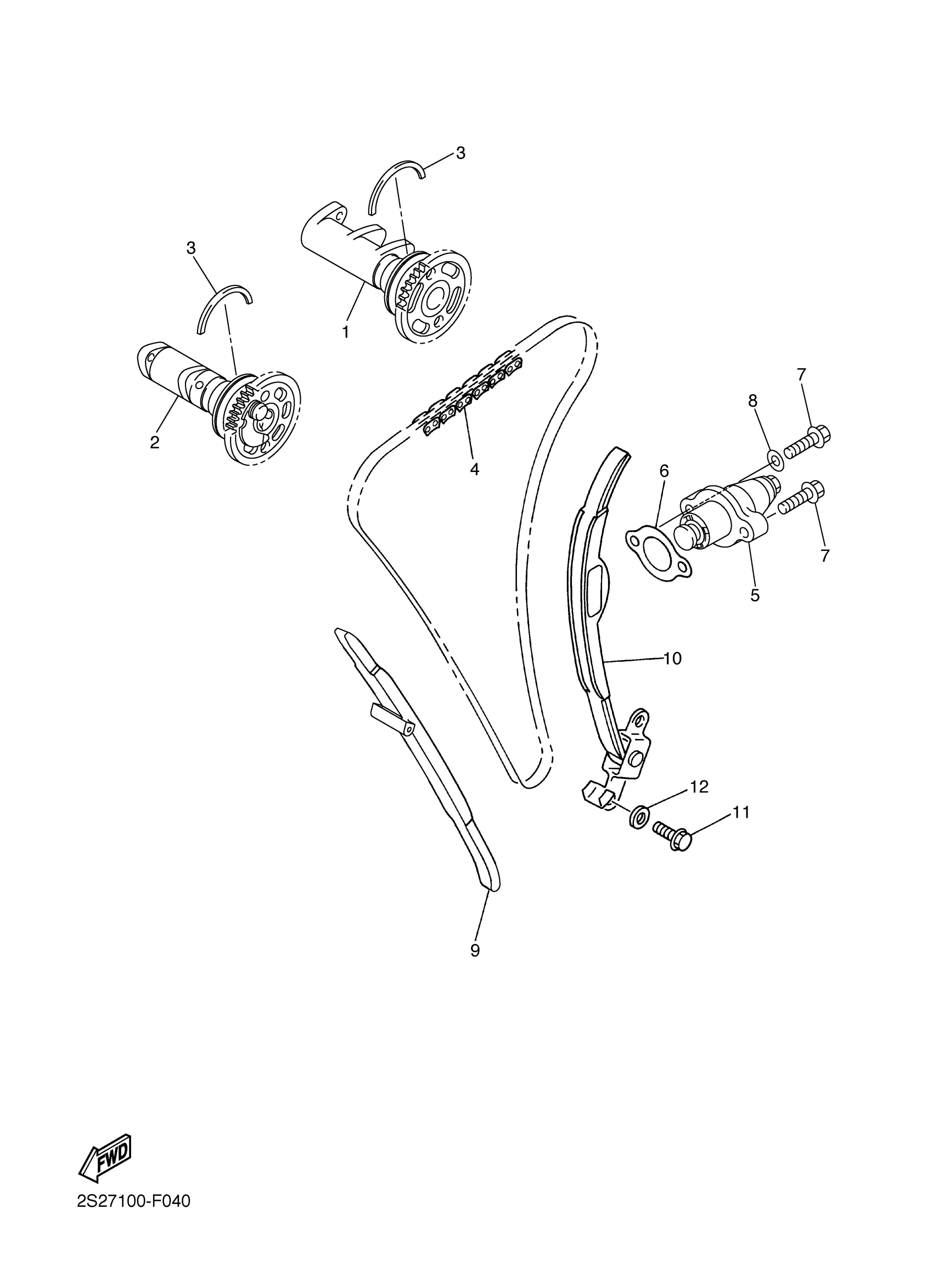

Yamaha YZ450FXW (YZ450F) 2S2B0 2008 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

2S2-12170-00-00

$362.99

CAMSHAFT ASSY 2

2S2-12180-00-00

Unavailable

CIRCLIP

93440-41178-00

$3.98

CHAIN

94591-57118-00

$35.99

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$135.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT, FLANGE

95022-06025-00

$3.62

GASKET 256113960000

90430-06014-00

Unavailable

DAMPER, CHAIN 1

2S2-12251-00-00

$35.99

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80
