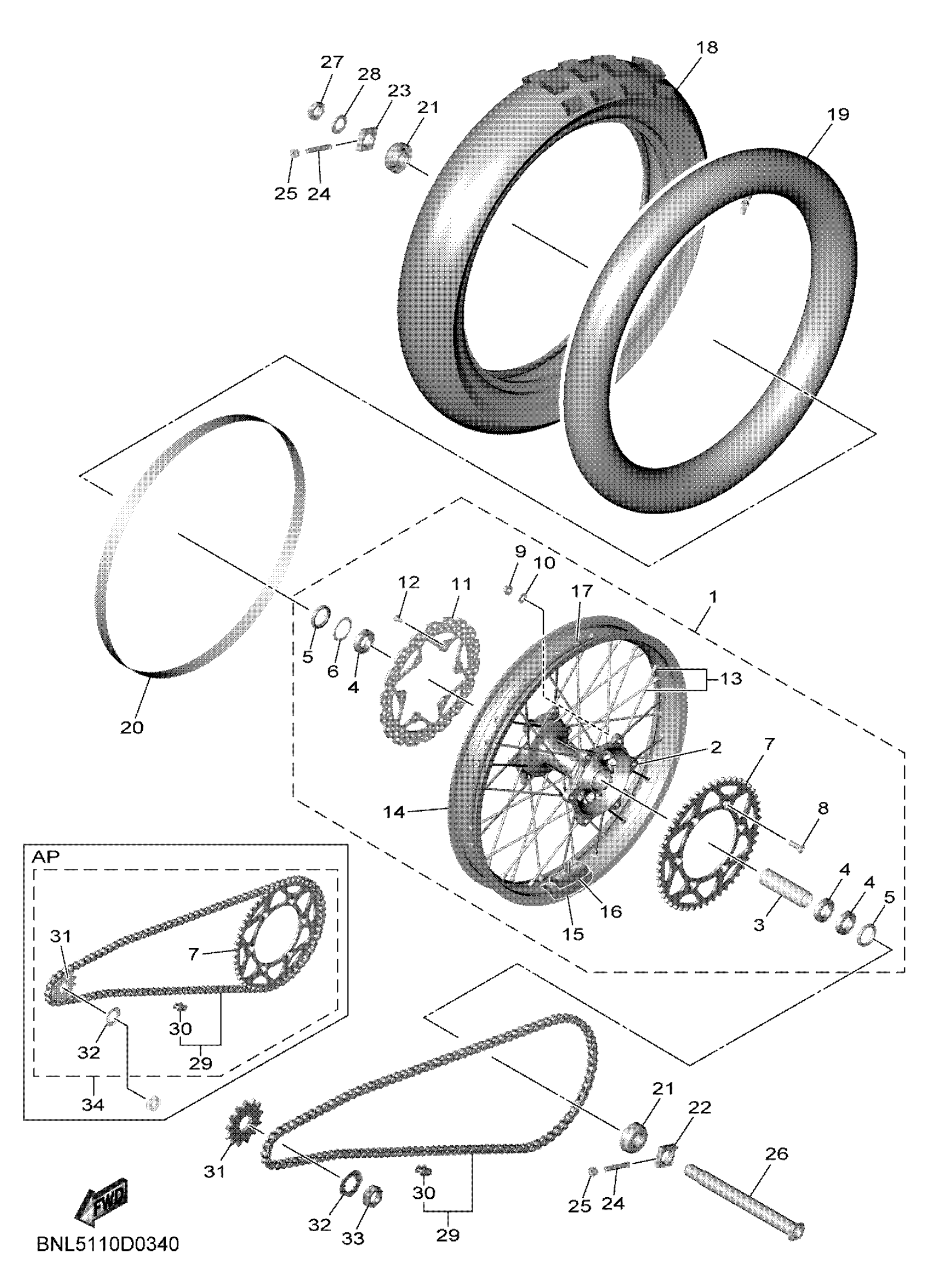

Yamaha YZ450FXS (YZ450FX) BNL5 2025 REAR WHEEL Diagram
#
Description
Price
7
SPROCKET, DRIVEN (51T)
B2W-25451-00-00
Unavailable
8
BOLT(3RB)
90109-081G1-00
Unavailable
11
DISK, REAR BRAKE 2
B2W-2582W-00-00
Unavailable
12
SCREW, COUNTERSUNK
90151-06079-00
Unavailable
13
SPOKE SET, REAR
BNK-25304-00-00
Unavailable
14
RIM (2.15-18)
94421-18048-00
Unavailable
15
SPACER, BEAD
3JE-25394-00-00
Unavailable
16
DAMPER
4XM-25364-00-00
Unavailable
17
GROMMET (397)
90480-10068-00
Unavailable
18
TIRE (120/90-18 65M MX33)
94112-18054-00
Unavailable
19
TUBE (5A8)
94212-18188-00
Unavailable
20
BAND, RIM (2J4)
94340-18086-00
Unavailable
21
COLLAR ASSY
BR9-2530S-01-00
Unavailable
22
PULLER, CHAIN 1
1SL-25388-00-00
Unavailable
23
PULLER, CHAIN 2
1SL-25389-00-00
Unavailable
24
BOLT
90101-08006-00
Unavailable
25
NUT
90179-08019-00
Unavailable
26
AXLE, WHEEL
17D-25381-00-00
Unavailable
27
NUT, SELF-LOCKING
90185-22011-00
Unavailable
28
WASHER, PLATE
90201-22023-00
Unavailable
29
CHAIN
9Y582-50113-00
Unavailable
30
JOINT, CHAIN
94682-50021-00
Unavailable
31
SPROCKET, DRIVE (13T)
9383E-13233-00
Unavailable
32
WASHER, LOCK
90215-21003-00
Unavailable
33
NUT
90179-20018-00
Unavailable
34
CHAIN & SPROCKET KIT
BEX-W001A-10-00
Unavailable
