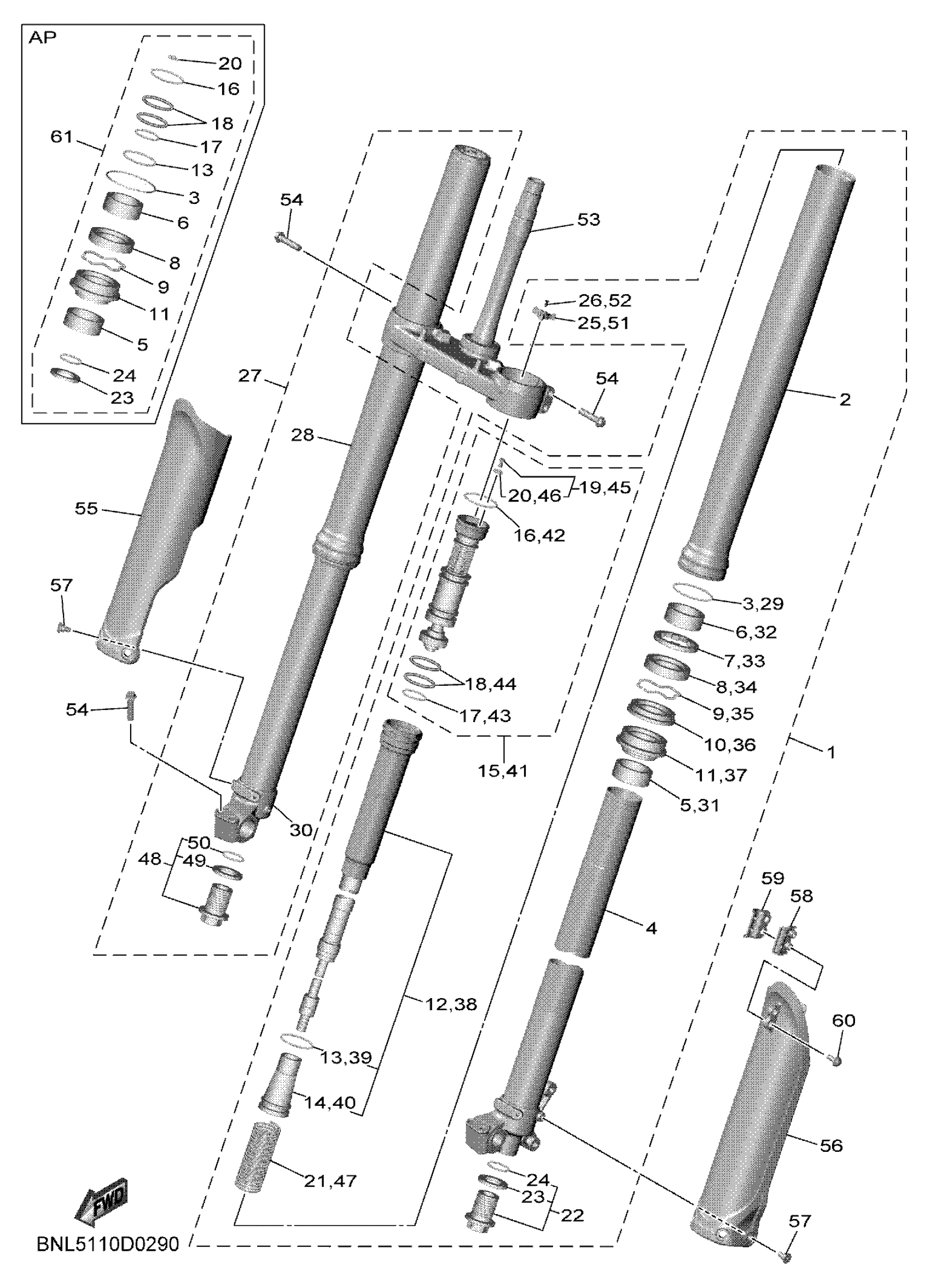

Yamaha YZ450FXS (YZ450FX) BNL5 2025 FRONT FORK Diagram
#
16
O-RING
1C3-23188-L2-00
Unavailable
17
O-RING
1C3-23188-P0-00
Unavailable
18
O-RING
1AE-23147-01-00
Unavailable
19
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
20
O-RING
1C3-23188-R1-00
Unavailable
21
SPRING, FRONT FORK (K=4.8)
BR9-23141-50-00
Unavailable
22
BOLT, CAP
5XC-23111-01-00
Unavailable
23
GASKET
2HH-23158-L0-00
Unavailable
24
GASKET
276-23114-02-00
Unavailable
25
CAP
BHR-2319W-00-00
Unavailable
26
SCREW
1MC-23119-10-00
Unavailable
27
DAMPER ASSY. (R)
BNL-23103-00-00
Unavailable
30
INNER TUBE COMP.1
BNK-23110-00-00
Unavailable
42
O-RING
1C3-23188-L2-00
Unavailable
43
O-RING
1C3-23188-P0-00
Unavailable
44
O-RING
1AE-23147-01-00
Unavailable
45
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
46
O-RING
1C3-23188-R1-00
Unavailable
47
SPRING, FRONT FORK (K=4.8)
BR9-23141-50-00
Unavailable
48
BOLT, CAP
5XC-23111-01-00
Unavailable
49
GASKET
2HH-23158-L0-00
Unavailable
50
GASKET
276-23114-02-00
Unavailable
51
CAP
BHR-2319W-00-00
Unavailable
52
SCREW
1MC-23119-10-00
Unavailable
53
UNDER BRACKET COMP.
B7R-23340-00-00
Unavailable
54
BOLT, FLANGE DEEP RECESS
95E34-08035-00
Unavailable
55
PROTECTOR 2
BHR-2315J-00-00
Unavailable
56
PROTECTOR 1
BHR-2315H-00-00
Unavailable
57
BOLT
90109-06232-00
Unavailable
58
CLAMP
BHR-23466-00-00
Unavailable
59
CLAMP
BHR-23467-00-00
Unavailable
60
BOLT, FLANGE
90105-06170-00
Unavailable
61
FORK SEAL KIT (ONE FORK)
BHR-W003B-00-00
Unavailable
