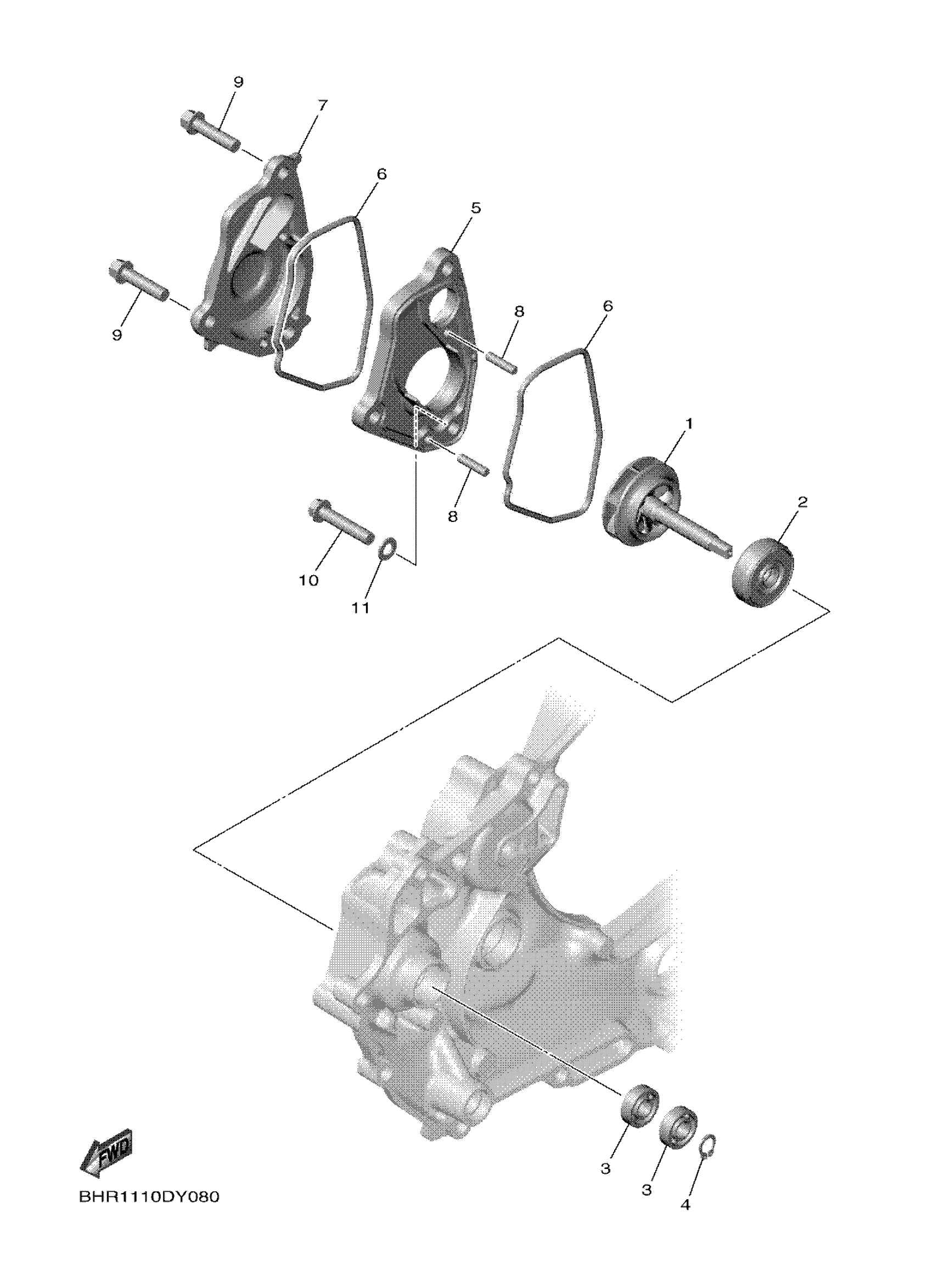

Yamaha YZ450FXR (YZ450FX) BNL1 2024 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

BHR-12450-00-00

$49.51

2

SEAL

BHR-12223-00-00

$29.25

3

BEARING(XA1)

93300-69824-00

$18.69

4

CIRCLIP

99009-08400-00

$1.37

5

HOUSING, WATER PUM

BHR-12421-00-00

$67.39

6

O-RING

BHR-12439-00-00

$5.42

7

COVER, HOUSING

BHR-12422-00-00

$51.99

8

PIN, DOWEL (26H)

93604-17198-00

$1.15

9

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.46

10

BOLT, FLANGE

95022-06030-00

$1.31

11

GASKET 256113960000

90430-06014-00

Unavailable
