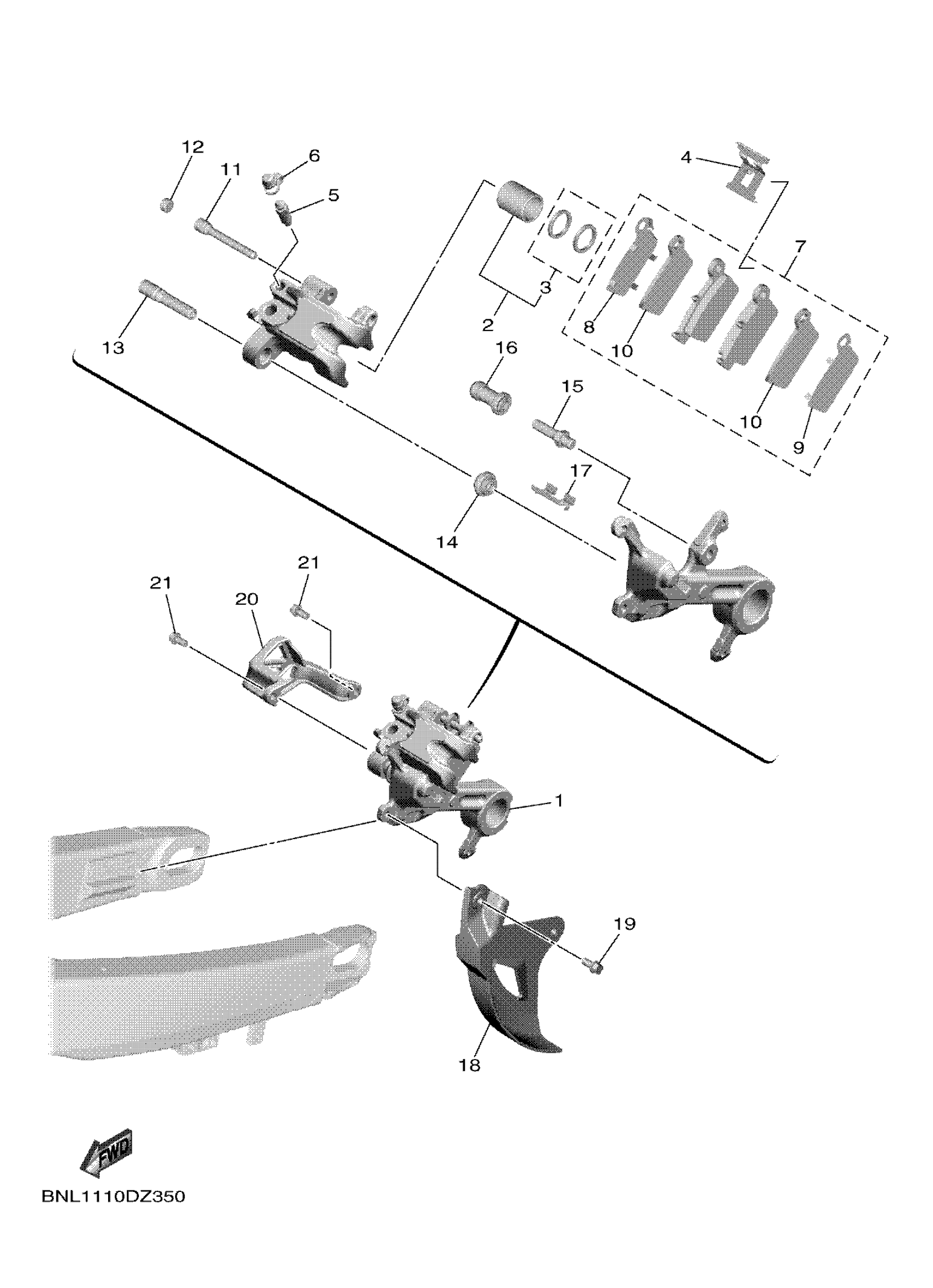

Yamaha YZ450FXR (YZ450FX) BNL1 2024 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 2

BNK-2580W-00-00

$383.99

2

PISTON ASSY, CALIPER

5UN-W0057-50-00

$57.99

3

CALIPER SEAL KIT

5UN-W0047-50-00

$16.49

4

SUPPORT, PAD

5DH-25919-50-00

$20.99

5

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

6

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

7

BRAKE PAD KIT 2

1C3-W0046-B0-00

$44.99

8

.. SHIM, CALIPER

5UN-25828-60-00

Unavailable

9

SHIM, CALIPER

5UN-25827-60-00

$15.49

10

INSULATOR, HEAT

5UN-22898-60-00

$19.99

11

PIN, PAD

8CR-25924-00-00

$14.49

12

PLUG

5DH-25916-00-00

$9.99

13

PIN, SLIDE

5DH-25914-50-00

$22.99

14

BOOT, CALIPER

3JD-25917-00-00

$8.99

15

PIN, SLIDE

5UN-25914-00-00

$14.49

16

BOOT 2

1UY-25937-51-00

Unavailable

17

RETAINER

5UN-25913-00-00

Unavailable

18

PROTECTOR, DISK BRAKE

17D-25718-50-00

Unavailable

19

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

20

PROTECTOR, CALIPER 2

B2W-2583E-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable
