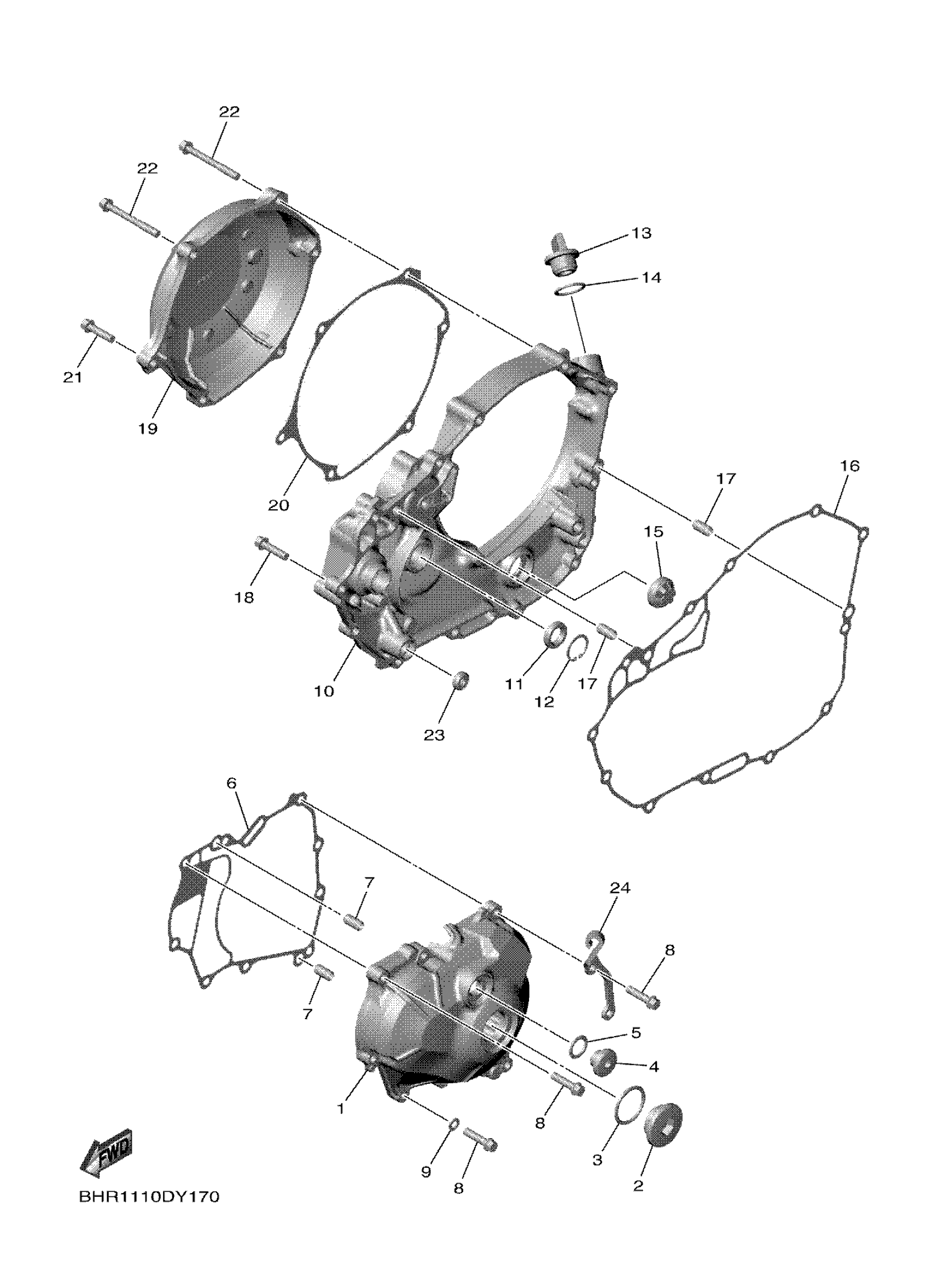

Yamaha YZ450FXR (YZ450FX) BNL1 2024 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

BHR-15411-00-00

$144.99

2

PLUG, STRAIGHT SCREW

90340-27009-00

$37.99

3

O-RING(1KT)

93210-27778-00

$8.49

4

PLUG, STRAIGHT SCREW

90340-14021-00

$31.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE

BHR-15451-00-00

Unavailable

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

9

GASKET 256113960000

90430-06014-00

Unavailable

10

COVER, CRANKCASE 3

BHR-15431-00-00

$161.99

11

OIL SEAL(4GY)

93101-14164-00

$11.49

12

CIRCLIP

99009-22500-00

$8.49

13

PLUG, OIL

3Y1-15363-10-00

$18.49

14

O-RING (646)

93210-19123-00

Unavailable

15

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

16

GASKET, CRANKCASE

BHR-15462-00-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$8.49

18

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

19

COVER, 1

BHR-15415-00-00

Unavailable

20

GASKET

BHR-15453-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

22

BOLT, FLANGE DEEP

95E32-06055-00

Unavailable

23

SEAT, CHECK BALL

583-13113-00-00

Unavailable

24

HOLDER, CLUTCH CAB

BHR-15441-00-00

Unavailable
