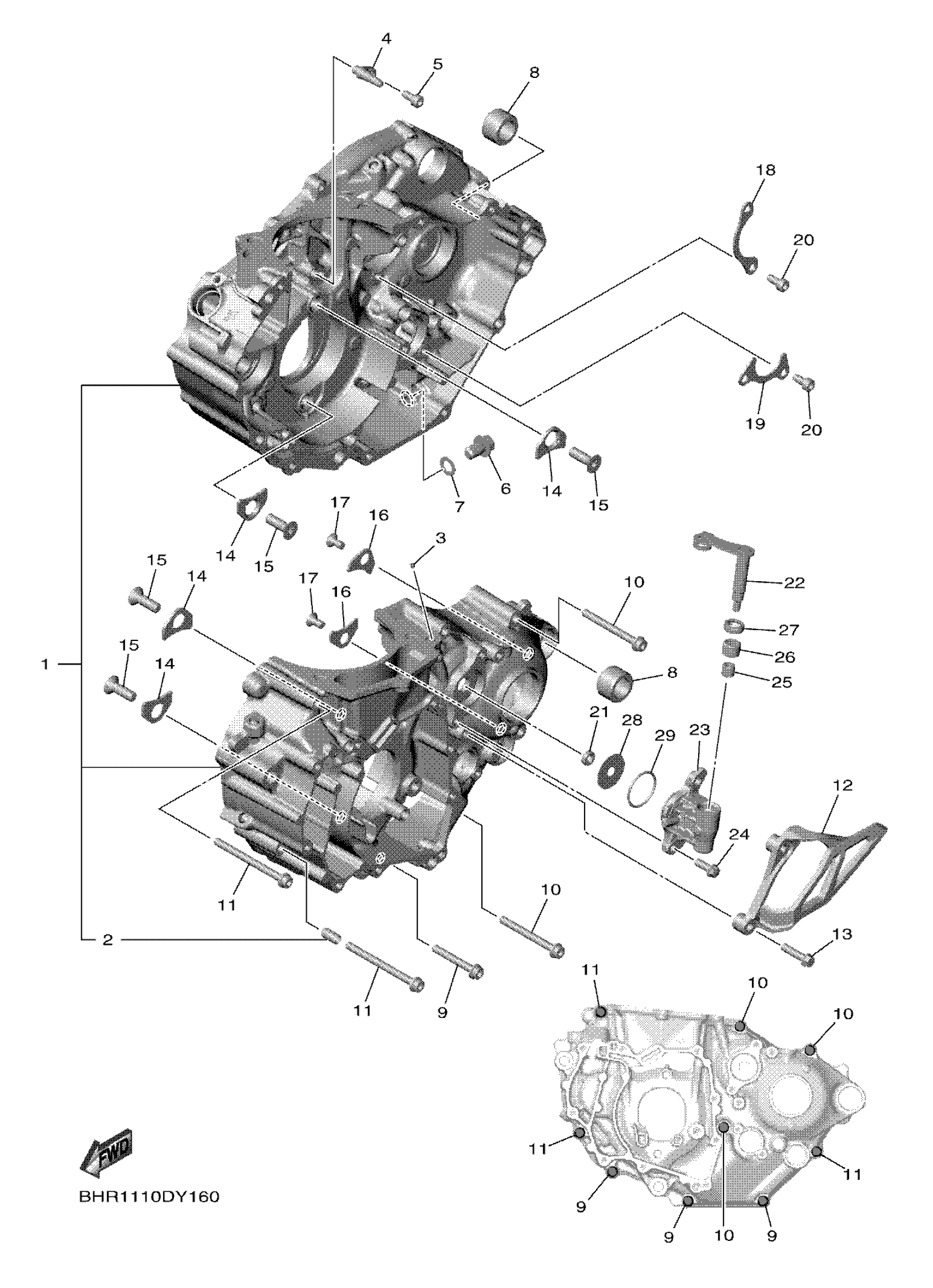

Yamaha YZ450FXR (YZ450FX) BNL1 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

BHR-15100-08-00

$1,653.99

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

NOZZLE 2

BHR-15148-00-00

$5.60

4

NOZZLE 3

BHR-15155-00-00

$28.99

5

BOLT,SOCKET

91317-06012-00

$8.49

6

BOLT, FLANGE DEEP RECESS

95E32-10016-00

$1.49

7

GASKET

90430-10188-00

$6.99

8

COLLAR

90387-17020-00

$17.99

9

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

$2.12

10

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

$3.35

11

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

$3.76

12

COVER, CRANKCASE 2

BHR-15421-01-00

$21.99

13

BOLT, FLANGE

90105-06189-00

$8.49

14

PLATE, BEARING COVER

18P-15383-00-00

$7.99

15

SCREW, COUNTERSUNK

90151-08003-00

$7.49

16

PLATE, BEARING COVER

4JT-15381-01-00

Unavailable

17

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

18

PLATE, BEARING COVER

5NL-15388-00-00

Unavailable

19

PLATE, STOPPER 2

33D-18562-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

$8.49

21

OIL SEAL (6X12X4-821)

93104-06033-00

Unavailable

22

PUSH LEVER COMP.

BHR-16381-00-00

Unavailable

23

PIECE, CLUTH PUSH

BHR-16386-00-00

Unavailable

24

BOLT, FLANGE

95022-06016-00

Unavailable

25

BEARING

93317-106B4-00

Unavailable

26

BEARING

93317-11096-00

Unavailable

27

OIL SEAL

93102-10008-00

Unavailable

28

WASHER, PLATE

90201-08037-00

Unavailable

29

O-RING

93210-28543-00

Unavailable
