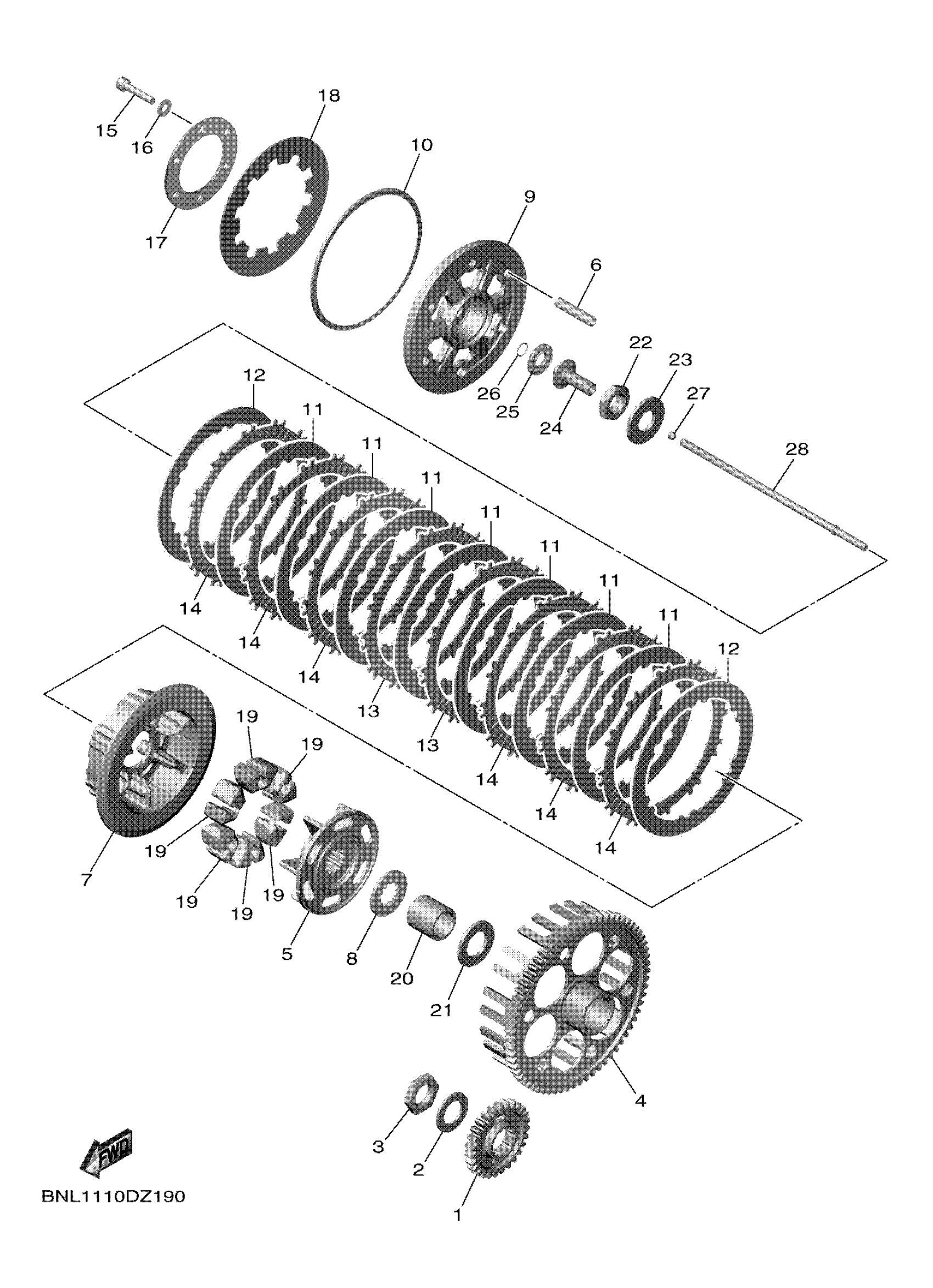

Yamaha YZ450FXR (YZ450FX) BNL1 2024 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

BHR-16111-00-00

$121.47

2

WASHER, PLATE(1HX)

90201-204K8-00

$6.81

3

NUT

90170-20014-00

$12.68

4

GEAR, PRIMARY DRIVEN

BHR-16151-00-00

$886.00

5

BOSS, CLUTCH

BHR-16371-00-00

$124.79

6

COLLAR

90387-0514T-00

$13.88

7

SLEEVE

BHR-16172-00-00

$247.99

8

WASHER

BHR-16144-00-00

$10.98

9

PLATE, PRESSURE 1

BHR-16351-00-00

$81.79

10

HOUSING, SPRING

BHR-16335-00-00

$9.58

11

PLATE, CLUTCH 1

BHR-16324-00-00

$7.77

12

PLATE, CLUTCH 2

BHR-16325-00-00

$7.64

13

PLATE, FRICTION

BNK-16321-00-00

$37.91

14

PLATE, FRICTION 2

BNK-16330-00-00

$36.77

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

RING,PRESSURE

BHR-16718-00-00

Unavailable

18

SPRING, CLUTCH 2

BHR-16334-00-00

Unavailable

19

ABSORBER

BHR-16165-00-00

Unavailable

20

COLLAR 1

BHR-16116-00-00

Unavailable

21

WASHER, THRUST 1

BHR-16113-00-00

Unavailable

22

NUT

90179-18016-00

Unavailable

23

WASHER, THRUST 1

BHR-16148-00-00

Unavailable

24

ROD, PUSH 1

BHR-16356-00-00

Unavailable

25

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

26

CIRCLIP (4G0)

93440-10085-00

Unavailable

27

BALL

93501-04011-00

Unavailable

28

ROD, PUSH 2

BHR-16357-00-00

Unavailable
