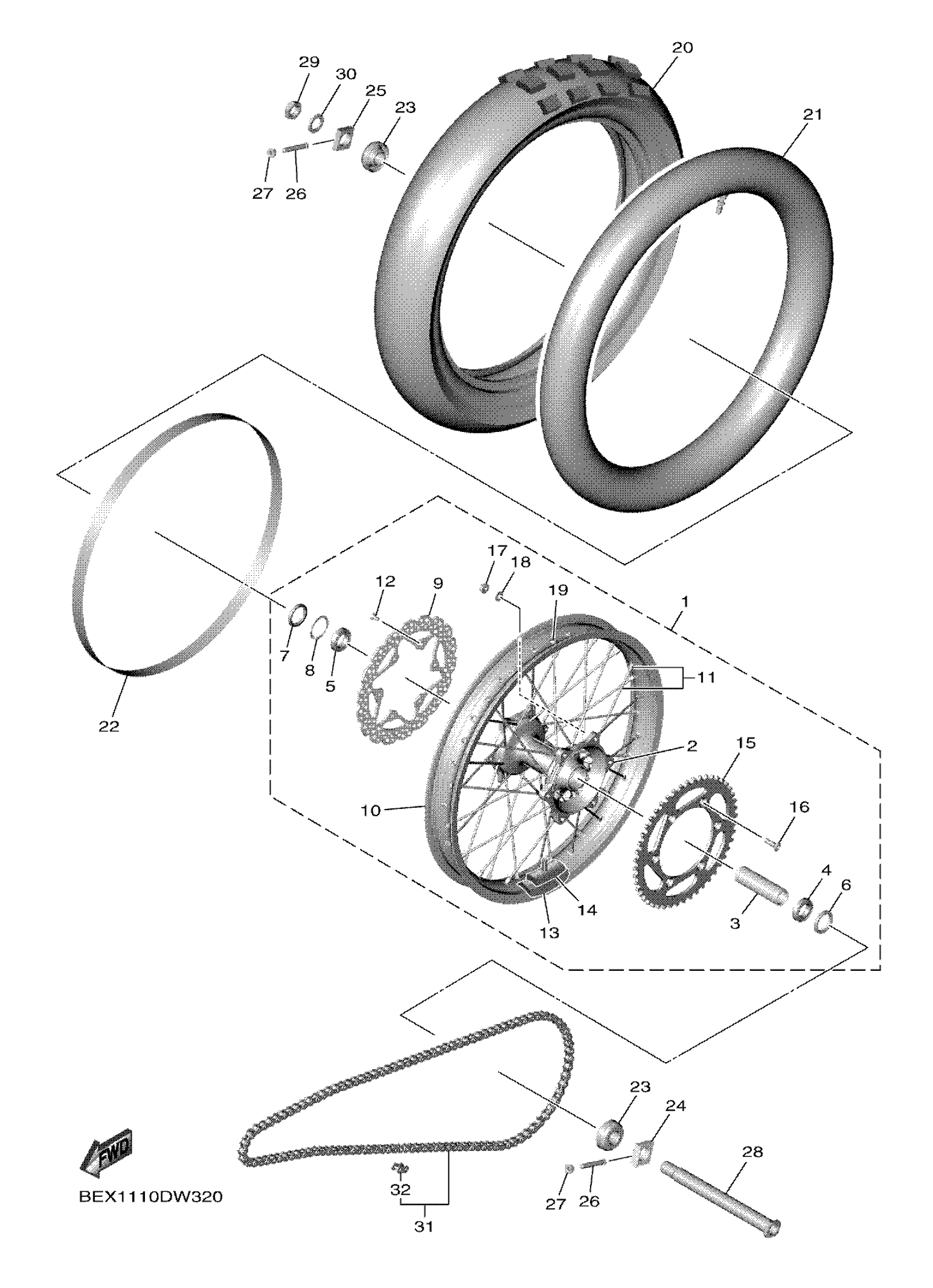

Yamaha YZ450FXM (YZ450FX) BEX1 2021 REAR WHEEL Diagram
#
Description
Price
1
REAR WHEEL SUB-ASSY
BEX-25302-00-00
Unavailable
10
RIM (2.15-18)
94421-18045-00
Unavailable
15
SPROCKET, DRIVEN (48T)
17D-25448-50-00
Unavailable
15
SPROCKET, DRIVEN (49T)
17D-25449-50-00
Unavailable
15
SPROCKET, DRIVEN (50T)
17D-25450-50-00
Unavailable
15
SPROCKET, DRIVEN (51T)
17D-25451-50-00
Unavailable
15
SPROCKET, DRIVEN (52T)
17D-25452-50-00
Unavailable
16
BOLT(3RB)
90109-081G1-00
Unavailable
17
NUT, SELF-LOCKING
90185-08008-00
Unavailable
18
WASHER, PLATE
90201-08043-00
Unavailable
19
GROMMET (397)
90480-10068-00
Unavailable
20
TIRE (120/90-18 65M MX33)
94112-18054-00
Unavailable
21
TUBE (5A8)
94212-18188-00
Unavailable
22
BAND, RIM (2J4)
94340-18086-00
Unavailable
23
COLLAR ASSY
1DX-2530S-01-00
Unavailable
24
PULLER, CHAIN 1
1C3-25388-H0-00
Unavailable
25
PULLER, CHAIN 2
1C3-25389-H0-00
Unavailable
26
BOLT
90101-08006-00
Unavailable
27
NUT
90179-08019-00
Unavailable
28
AXLE, WHEEL
1C3-25381-90-00
Unavailable
29
NUT, SELF-LOCKING
90185-20002-00
Unavailable
30
WASHER, PLATE
90201-20020-00
Unavailable
31
CHAIN
9Y582-50113-00
Unavailable
32
JOINT, CHAIN
94682-50021-00
Unavailable
