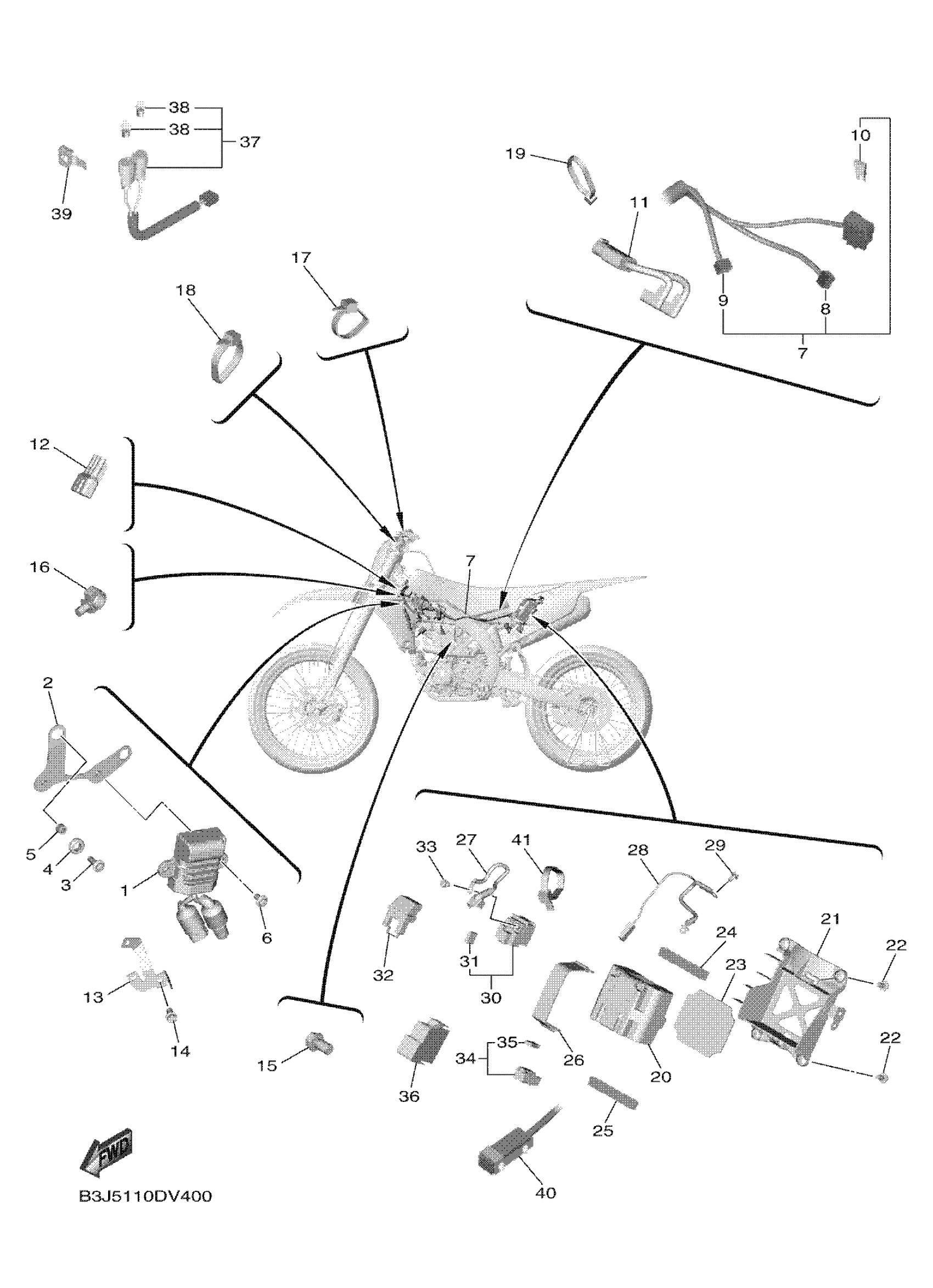

Yamaha YZ450FXM (YZ450FX) BEX1 2021 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

B7B-81960-00-00

$125.96

2

BRACKET, REGULATOR

B7B-21287-00-00

$11.67

3

BOLT, FLANGE

90105-06219-00

$1.73

4

GROMMET

90480-13025-00

$3.03

5

COLLAR (8H6)

90387-07573-00

$7.11

6

BOLT, FLANGE

90105-06064-00

$2.49

7

WIRE HARNESS ASSY

BEX-82590-00-00

$380.26

8

DIODE ASSY

4WA-81980-00-00

$24.23

9

DIODE ASSY

3WP-81980-00-00

$17.59

10

FUSE (5A)

67F-82151-20-00

$5.57

11

WIRE, SUB LEAD

1SL-82309-00-00

$24.04

12

CONNECTOR

33D-82378-00-00

$14.79

13

PLATE

B7B-82388-00-00

$7.79

14

BOLT, FLANGE

90105-06110-00

$5.84

15

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.73

16

CLAMP

90464-17003-00

Unavailable

17

CLAMP

90464-13077-00

Unavailable

18

CLAMP(4FM)

90464-15195-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

BATTERY ASSY

BR9-82100-48-00

$698.99

21

BRACKET, BATTERY

B3J-82128-00-00

Unavailable

22

BOLT, WITH WASHER

90119-06133-00

Unavailable

23

DAMPER

2GB-82176-00-00

Unavailable

24

DAMPER, RADIATOR

3VD-12465-00-00

Unavailable

25

DAMPER, FOOTREST 2

5GM-27424-00-00

Unavailable

26

BAND, BATTERY

8CY-82131-00-00

Unavailable

27

WIRE, PLUS LEAD

BR9-82115-00-00

Unavailable

28

WIRE, MINUS LEAD

BR9-82116-00-00

Unavailable

29

BOLT, FLANGE

90105-06064-00

$2.49

30

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

31

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

32

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

33

BOLT, FLANGE

95022-06008-00

Unavailable

34

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

35

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

36

COVER 1

B7R-8246B-00-00

Unavailable

37

PILOT LIGHT ASSY

B29-83530-00-00

Unavailable

38

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

39

BRACKET, INDICATOR LIGHT 1

B29-83574-00-00

Unavailable

40

RESISTOR ASSY

2GB-82718-00-00

Unavailable

41

CLAMP

90465-10098-00

$1.68
