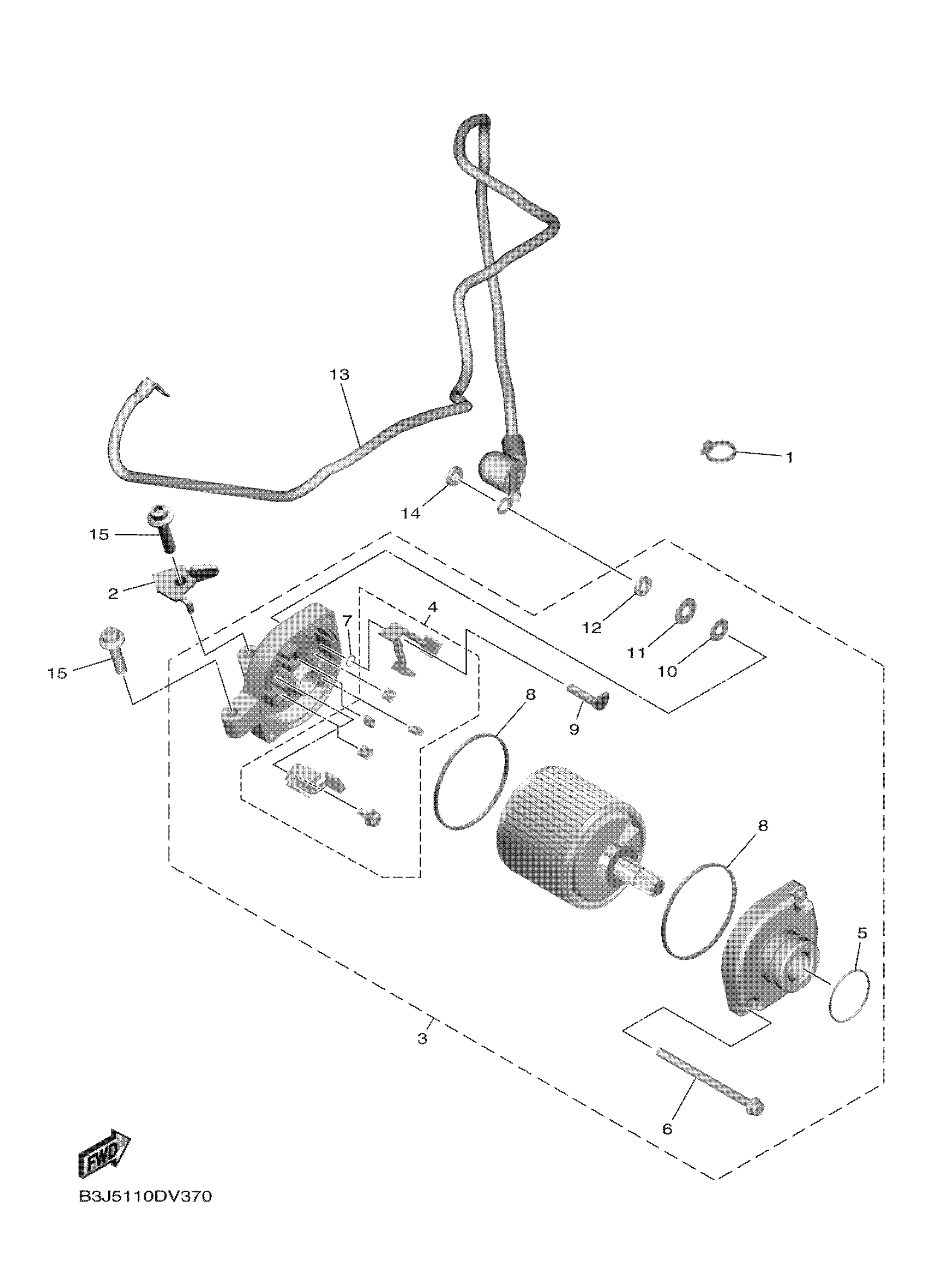

Yamaha YZ450FXL1 (YZ450FX) B3J5 2020 STARTING MOTOR Diagram

#

Description
Price

1

CLAMP

90465-10098-00

$1.68

2

COVER

B3J-15413-00-00

Unavailable

3

MOTOR ASSY

B3J-81890-00-00

$386.32

4

BRUSH SET

2CR-81801-10-00

Unavailable

5

O-RING(1RL)

93210-25711-00

$5.59

6

SCREW

BR9-81846-00-00

Unavailable

7

O-RING 1

BR9-8182L-00-00

Unavailable

8

GASKET

BR9-81861-00-00

Unavailable

9

SCREW 2

2CR-81828-10-00

$5.83

10

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

11

WASHER

1D7-81835-00-00

$1.47

12

NUT(650)

95380-06700-00

$5.75

13

CORD COMP.

BR9-8183G-00-00

$172.45

14

NUT(650)

95380-06700-00

$5.75

15

BOLT, HEXAGON SOCKET HEAD

90110-06349-00

$2.24
