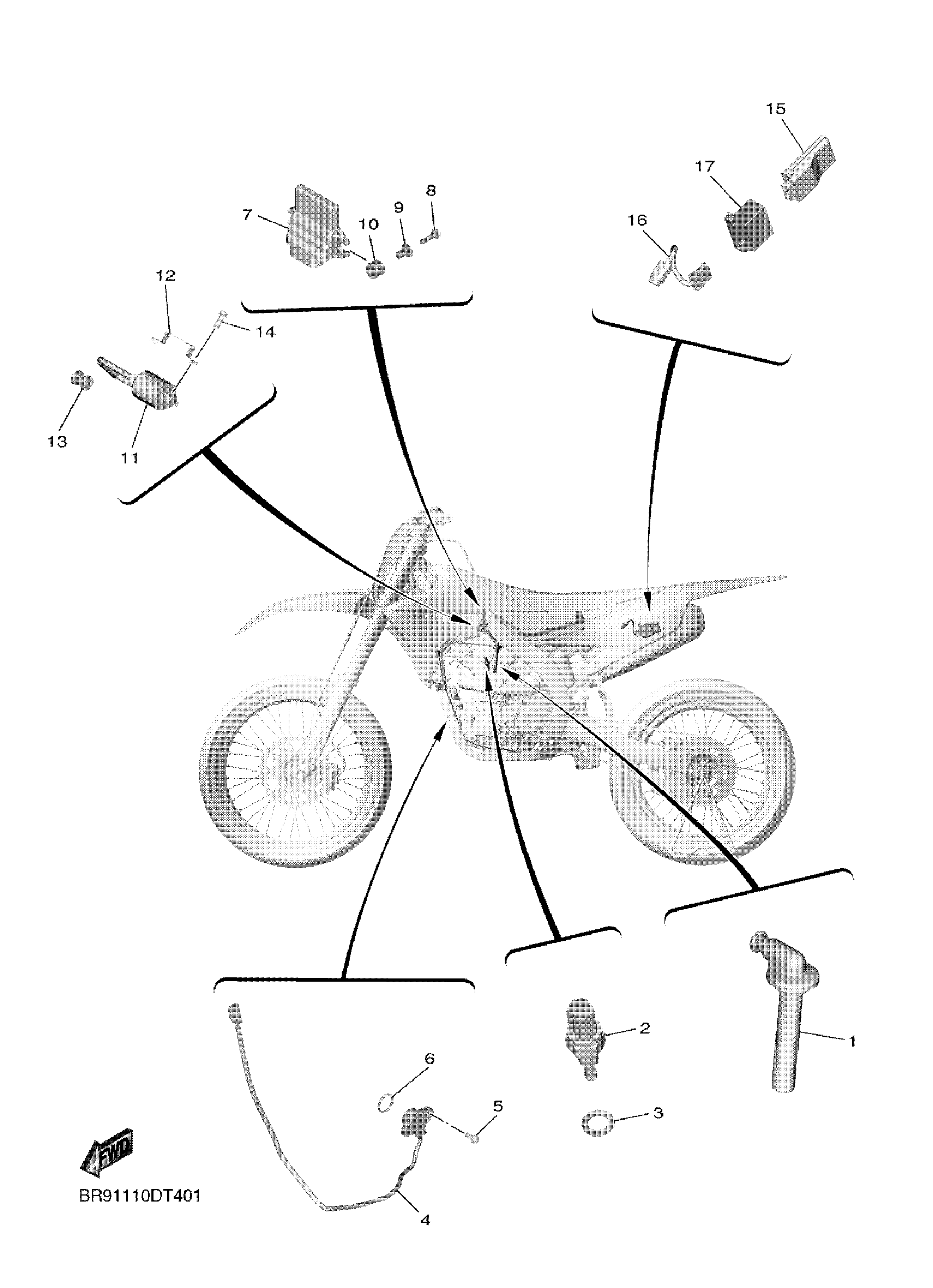

Yamaha YZ450FXL1 (YZ450FX) B3J5 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

33D-82370-00-00

$89.65

2

THERMO UNIT

52B-H3591-00-00

Unavailable

3

GASKET

90430-10004-00

$5.55

4

NEUTRAL SWITCH ASSY

B11-82540-01-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$5.86

6

O-RING

93210-21001-00

$4.46

7

ENGINE CONTROL UNIT ASSY

B3J-8591A-30-00

Unavailable

8

BOLT, FLANGE

90105-05005-00

$0.79

9

COLLAR

90387-05048-00

$5.03

10

GROMMET

90480-13029-00

$4.47

11

IGNITION COIL ASSY

BR9-82310-03-00

$48.09

12

CORE, SIDE

BR9-8231U-00-00

$19.14

13

GROMMET

90480-11015-00

$3.32

14

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.56

15

COMMUNICATION CONT. UNIT ASSY

BR9-85810-02-00

$493.83

16

WIRE, LEAD

BR9-85721-00-00

Unavailable

17

BAND

BR9-85546-00-00

Unavailable
