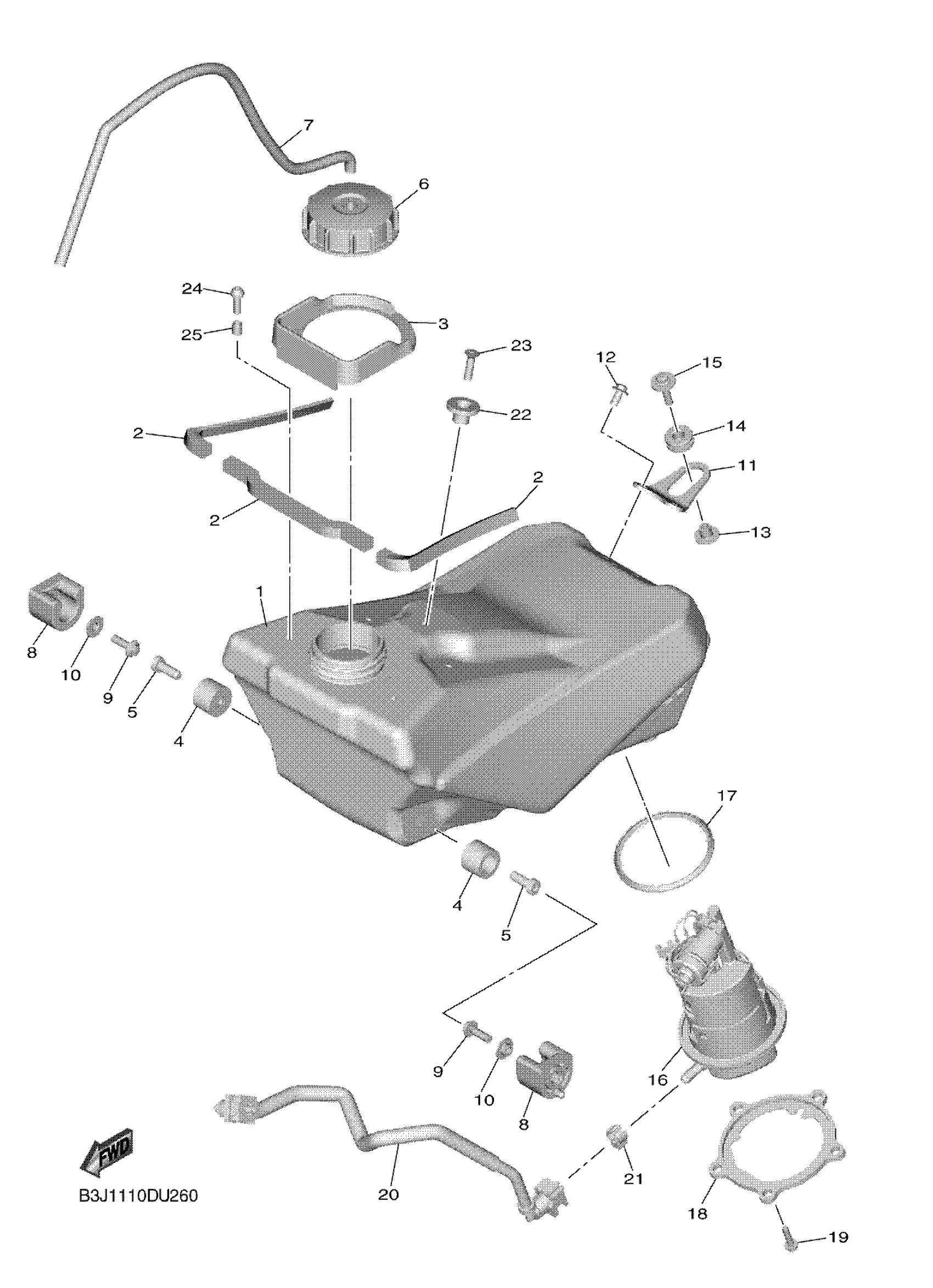

Yamaha YZ450FXK (YZ450FX) B3J1 2019 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

B3J-24110-00-00

Unavailable

2

DAMPER, PLATE 6

2D1-2414R-00-00

$7.99

3

MOLD, FUEL TANK

BR9-24188-01-00

$31.99

4

BOSS

B3J-2417G-00-00

$17.99

5

BOLT(3MA)

91312-06016-00

$5.60

6

CAP ASSY

BR9-24610-00-00

$68.99

7

HOSE

90445-098B3-00

$12.49

8

BRACKET, FUEL TANK 1

BR9-24191-00-00

$10.49

9

BOLT, FLANGE

90105-06203-00

$2.17

10

COLLAR

90387-06170-00

$8.49

11

HOLDER

BR9-2419A-00-00

$7.49

12

BOLT, FLANGE

90105-06064-00

Unavailable

13

COLLAR(4BH)

90387-066Y6-00

$9.49

14

GROMMET (4N0)

90480-10289-00

$8.49

15

BOLT, WITH WASHER

90119-06271-00

$3.23

16

FUEL PUMP COMP.

B3J-13907-02-00

Unavailable

17

SEAL

B3J-2414G-00-00

Unavailable

18

BRACKET, FUEL PUMP

B3J-24491-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

Unavailable

20

PIPE, FUEL 1

B3J-13971-02-00

Unavailable

21

CLAMP 1

33D-24135-00-00

Unavailable

22

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

23

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06171-00

Unavailable

25

COLLAR

90387-06284-00

Unavailable
