Description

Price

1

IMPELLER SHAFT ASSY

BR9-12450-00-00

$42.99

2

. SHAFT, IMPELLER

BR9-12458-00-00

Unavailable

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

OIL SEAL

93102-08004-00

$9.49

5

OIL SEAL (30X)

93102-08307-00

$7.49

6

BEARING

93300-60801-00

$21.99

7

COLLAR

1SL-11917-00-00

$16.49

8

CIRCLIP

93440-07182-00

$3.78

9

COVER, HOUSING

33D-12422-00-00

$100.99

10

GASKET, HOUSING COVER 1

33D-12427-00-00

$7.99

11

PIN,DOWEL (603)

93604-10011-00

$8.49

12

BOLT, FLANGE

95022-06025-00

$3.62

13

BOLT, FLANGE

95022-06010-00

$5.60

14

GASKET 256113960000

90430-06014-00

Unavailable

15

PIPE, WATER

5BE-12564-00-00

$11.99

16

O-RING(M01)

93210-19758-00

Unavailable

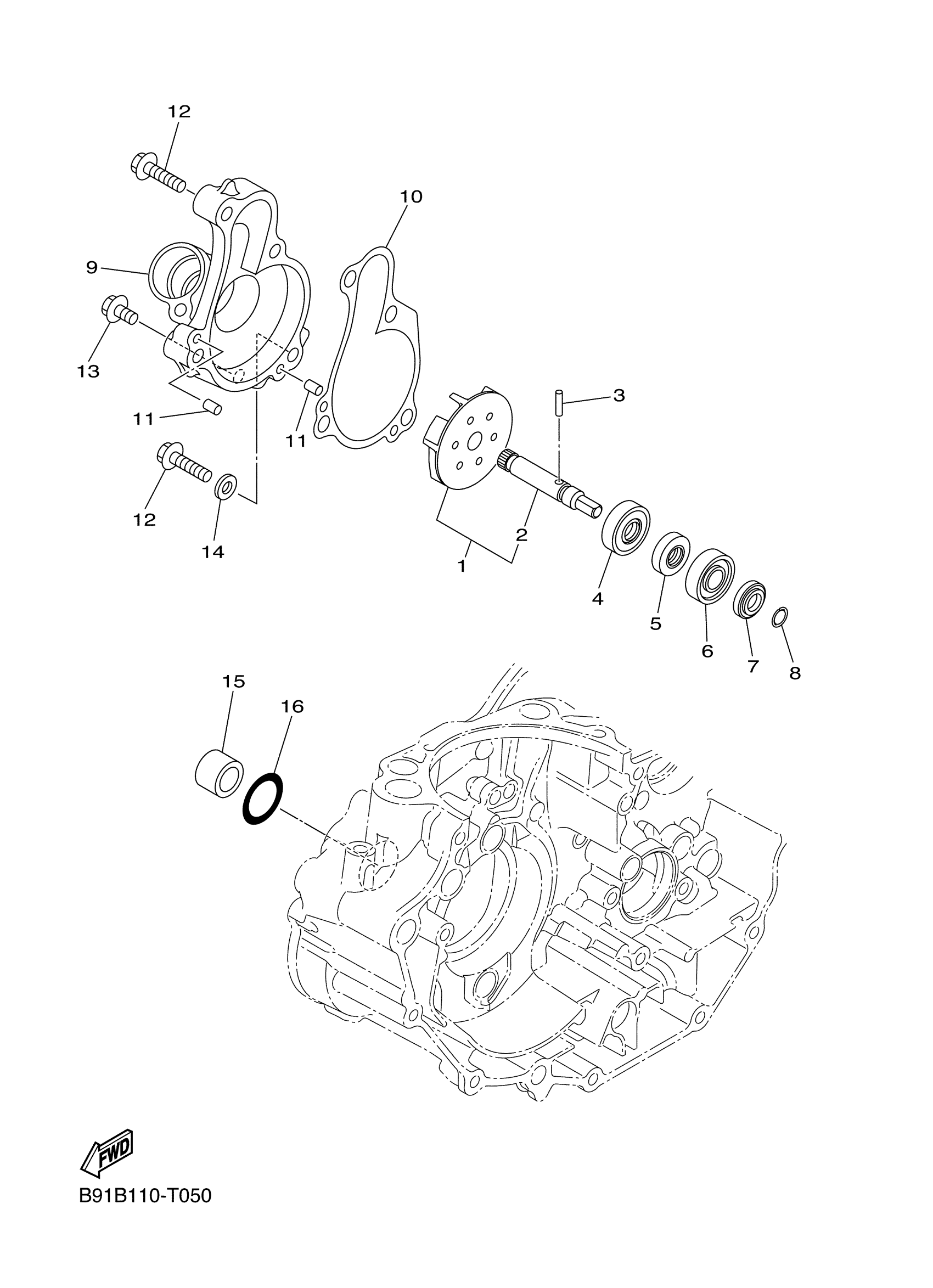

Yamaha YZ450FXJ (YZ450FX) B91B 2018 WATER PUMP Diagram

IMPELLER SHAFT ASSY

. SHAFT, IMPELLER

PIN,DOWEL (137)

OIL SEAL

OIL SEAL (30X)

BEARING

COLLAR

CIRCLIP

COVER, HOUSING

GASKET, HOUSING COVER 1

PIN,DOWEL (603)

BOLT, FLANGE

BOLT, FLANGE

GASKET 256113960000

PIPE, WATER

O-RING(M01)
