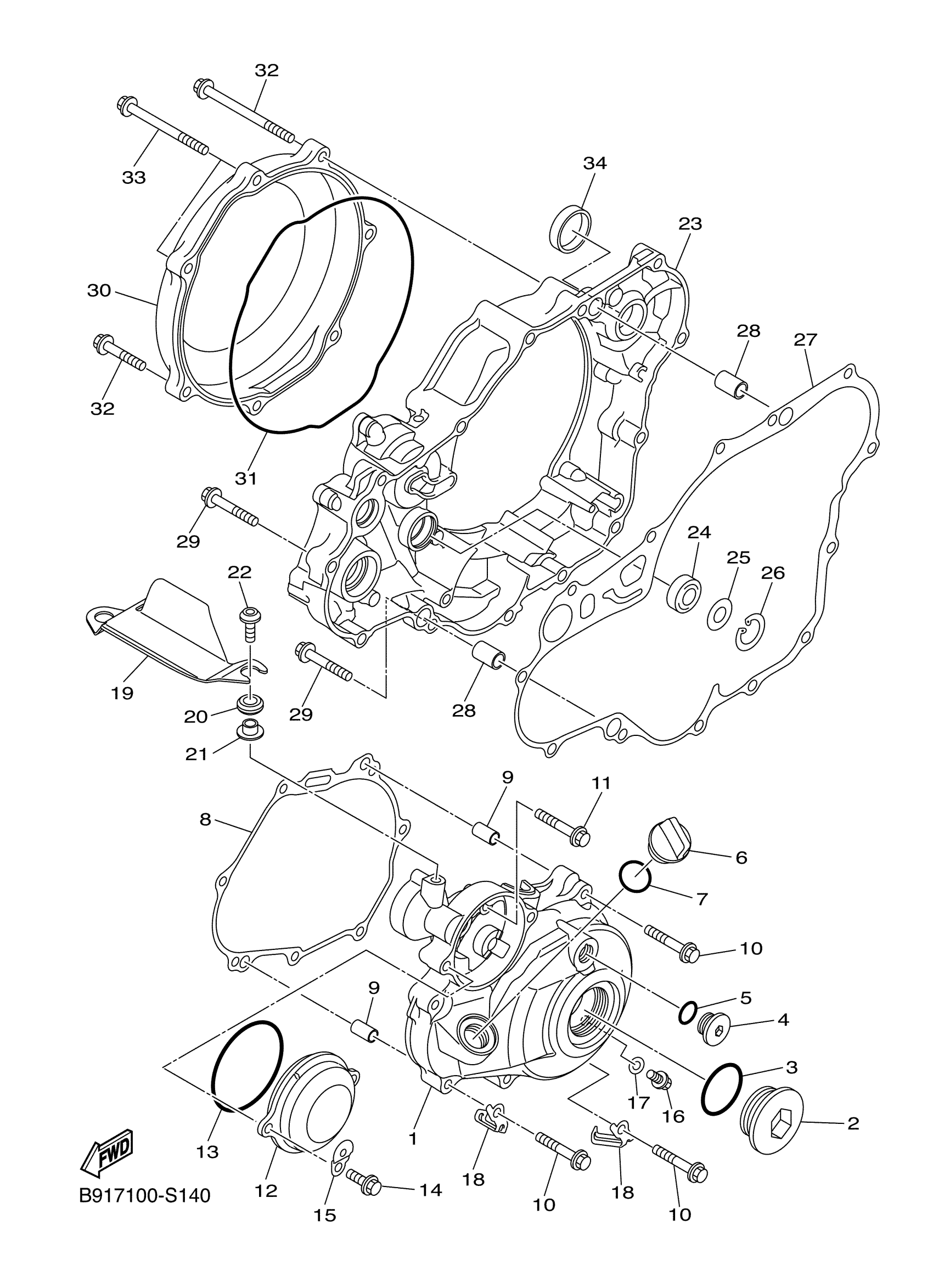

Yamaha YZ450FXJ (YZ450FX) B91B 2018 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2GC-15411-10-00

$131.39

2

PLUG, STRAIGHT SCREW

90340-36007-00

$20.85

3

O-RING

93210-35804-00

$0.46

4

PLUG, STRAIGHT SCREW

90340-14021-00

$25.03

5

O-RING (2H9)

93210-14369-00

$5.42

6

PLUG, OIL

3Y1-15363-10-00

$15.94

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

1SL-15451-00-00

$10.41

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

BOLT, FLANGE

95022-06030-00

$1.31

11

BOLT, FLANGE

95022-06020-00

$3.11

12

COVER ASSY 2

5TJ-1549B-40-00

$60.56

13

O-RING (1J7)

93210-58346-00

$8.45

14

BOLT, FLANGE

95022-06014-00

$2.46

15

BRACKET

2GC-15199-00-00

$4.15

16

BOLT, FLANGE

95022-06012-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

CLAMP

90465-08062-00

Unavailable

19

COVER, STARTING MOTOR

2GC-15436-00-00

Unavailable

20

GROMMET(4FW)

90480-12581-00

Unavailable

21

COLLAR

90387-06142-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

23

COVER, CRANKCASE 3

1SL-15431-00-00

Unavailable

24

OIL SEAL(4GY)

93101-14164-00

Unavailable

25

WASHER (566)

90201-15701-00

Unavailable

26

CIRCLIP

99009-22500-00

Unavailable

27

GASKET, CRANKCASE COVER 3

1SL-15462-00-00

Unavailable

28

PIN, DOWEL

99530-12016-00

Unavailable

29

BOLT, FLANGE

95022-06030-00

$1.31

30

COVER, 1

33D-15415-20-00

Unavailable

31

GASKET

33D-15453-00-00

Unavailable

32

BOLT, FLANGE

95022-06025-00

Unavailable

33

BOLT, FLANGE

95022-06070-00

Unavailable

34

PLUG (3L3)

90338-30096-00

Unavailable
