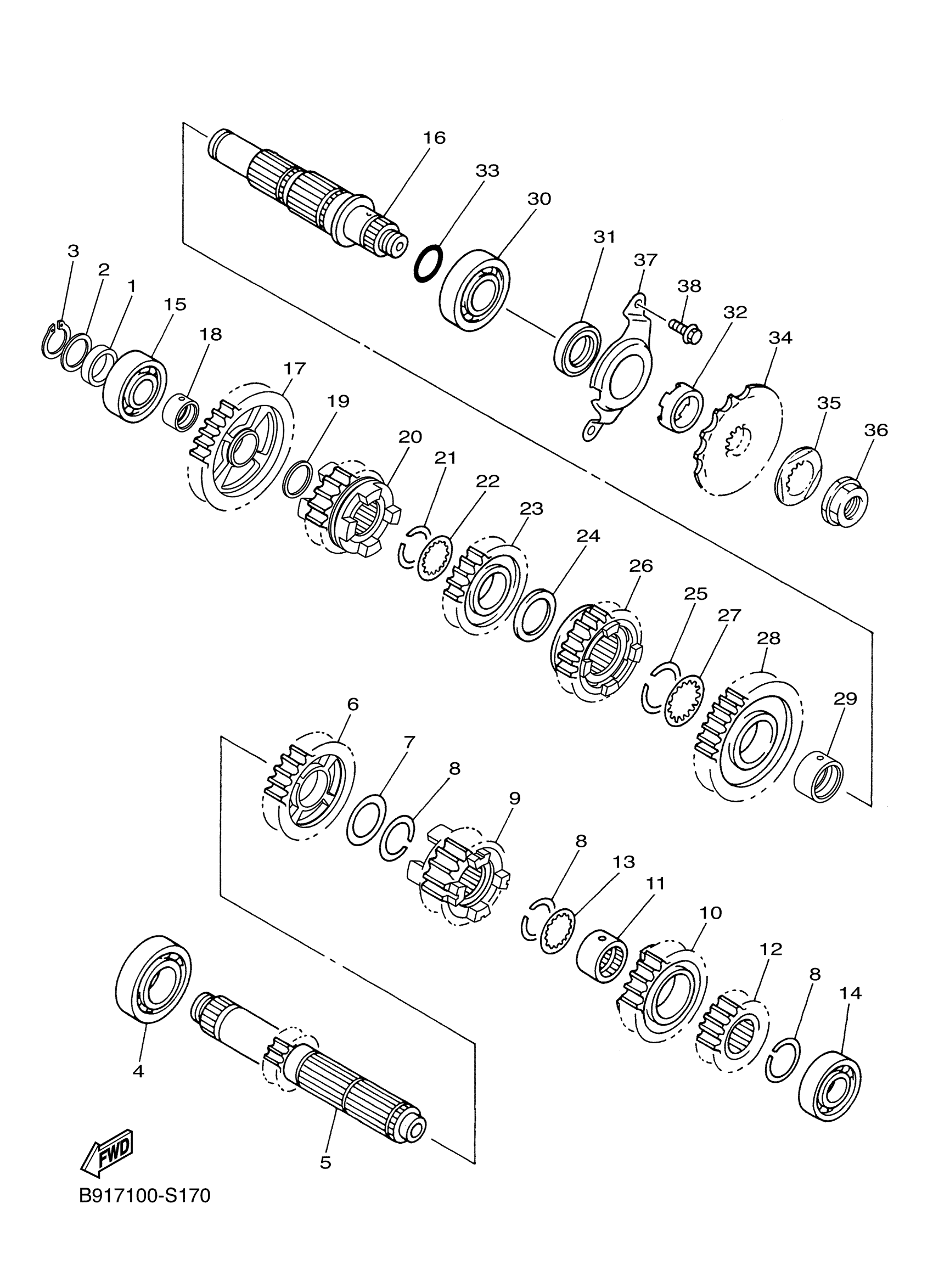

Yamaha YZ450FXH (YZ450FX) B916 2017 TRANSMISSION Diagram

#

Description
Price

1

COLLAR

90387-20031-00

$10.62

2

WASHER PLATE 820473590000

90201-20272-00

$5.79

3

CIRCLIP(1AR)

99009-20400-00

$5.75

4

BEARING

93306-20532-00

$53.79

5

AXLE, MAIN

5TJ-17411-30-00

$164.88

6

GEAR, 5TH PINION

5TJ-17151-21-00

$52.23

7

WASHER, PLATE(59W)

90201-253K0-00

$5.76

8

CIRCLIP (4L0)

93440-25084-00

$3.81

9

GEAR, 3RD PINION

2GC-17131-00-00

Unavailable

10

GEAR, 4TH PINION

5TJ-17141-20-00

$73.20

11

COLLAR

90387-21005-00

$23.85

12

GEAR, 2ND PINION

5TJ-17121-30-00

Unavailable

13

WASHER(3VD)

90209-21332-00

$6.29

14

BEARING

93306-00447-00

$33.34

15

BEARING (5Y1)

93306-00426-00

$34.16

16

DRIVE AXLE ASSY

1SL-17402-00-00

Unavailable

17

GEAR, 1ST WHEEL

5TJ-17211-20-00

Unavailable

18

COLLAR

90387-20028-00

Unavailable

19

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

20

GEAR, 5TH WHEEL

2GC-17251-00-00

Unavailable

21

CIRCLIP (4L0)

93440-25084-00

$3.81

22

WASHER

90209-22008-00

Unavailable

23

GEAR, 3RD WHEEL

B3J-17231-00-00

Unavailable

24

WASHER, PLATE(59W)

90201-253K0-00

$5.76

25

CIRCLIP (2H7)

93440-28062-00

Unavailable

26

GEAR, 4TH WHEEL

5TJ-17241-20-00

Unavailable

27

WASHER

90209-26348-00

Unavailable

28

GEAR, 2ND WHEEL

5TJ-17221-30-00

Unavailable

29

COLLAR

90387-28012-00

Unavailable

30

BEARING

93306-205A5-00

Unavailable

31

OIL SEAL

93102-32014-00

Unavailable

32

COLLAR

90387-2513F-00

Unavailable

33

O-RING

93210-22298-00

Unavailable

34

SPROCKET, DRIVE (13T)

9383E-13233-00

Unavailable

35

WASHER, LOCK

90215-21003-00

Unavailable

36

NUT

90179-20001-00

Unavailable

37

PLATE, COVER

1SL-17471-00-00

Unavailable

38

BOLT, FLANGE

95022-06012-00

Unavailable
