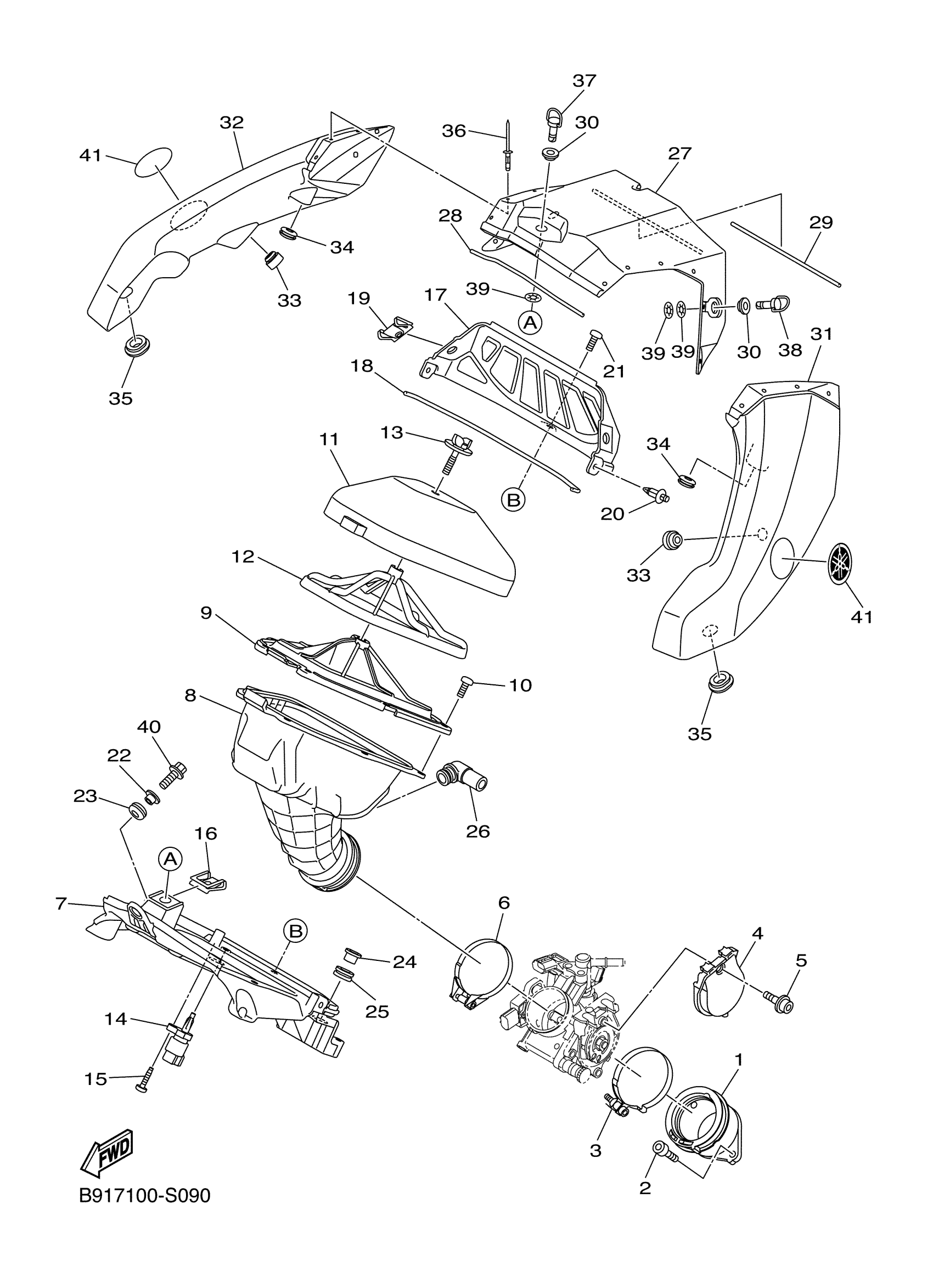

Yamaha YZ450FXH (YZ450FX) B916 2017 INTAKE Diagram
#
Description
Price
8
JOINT, AIR CLEANER 1
2GC-14453-00-00
Unavailable
12
GUIDE
1SL-14458-00-00
Unavailable
16
PLATE, SPRING
4XV-2177L-01-00
Unavailable
17
CAP, CLEANER CASE 2
1SL-14422-00-00
Unavailable
18
SEAL
1SL-14462-00-00
Unavailable
19
PLATE, SPRING
4XV-2177L-01-00
Unavailable
20
RIVET
90269-06008-00
Unavailable
22
COLLAR(50M)
90387-087L0-00
Unavailable
23
GROMMET (2T4)
90480-12237-00
Unavailable
24
SPACER
1SL-14442-00-00
Unavailable
25
GROMMET
90480-01027-00
Unavailable
26
PIPE
5TJ-14419-00-00
Unavailable
27
CAP, CLEANER CASE 1
1SL-14412-01-00
Unavailable
28
SEAL
1SL-14452-00-00
Unavailable
29
SEAL
1SL-14457-00-00
Unavailable
30
COLLAR
90387-07045-00
Unavailable
31
DUCT
1SL-14437-01-00
Unavailable
32
DUCT
1SL-1443A-01-00
Unavailable
33
GROMMET (8M6)
90480-11298-00
Unavailable
34
GROMMET (2T4)
90480-12237-00
Unavailable
35
GROMMET(4DN)
90480-01558-00
Unavailable
36
RIVET, BLIND
90267-41004-00
Unavailable
37
HEAD
3FV-28386-00-00
Unavailable
38
HEAD
1SL-28386-00-00
Unavailable
39
WASHER, SPECIAL 1
5TJ-21757-00-00
Unavailable
40
BOLT, FLANGE
90105-06203-00
Unavailable
41
Tuning Fork Mark
1SL-2175C-01-00
Unavailable
