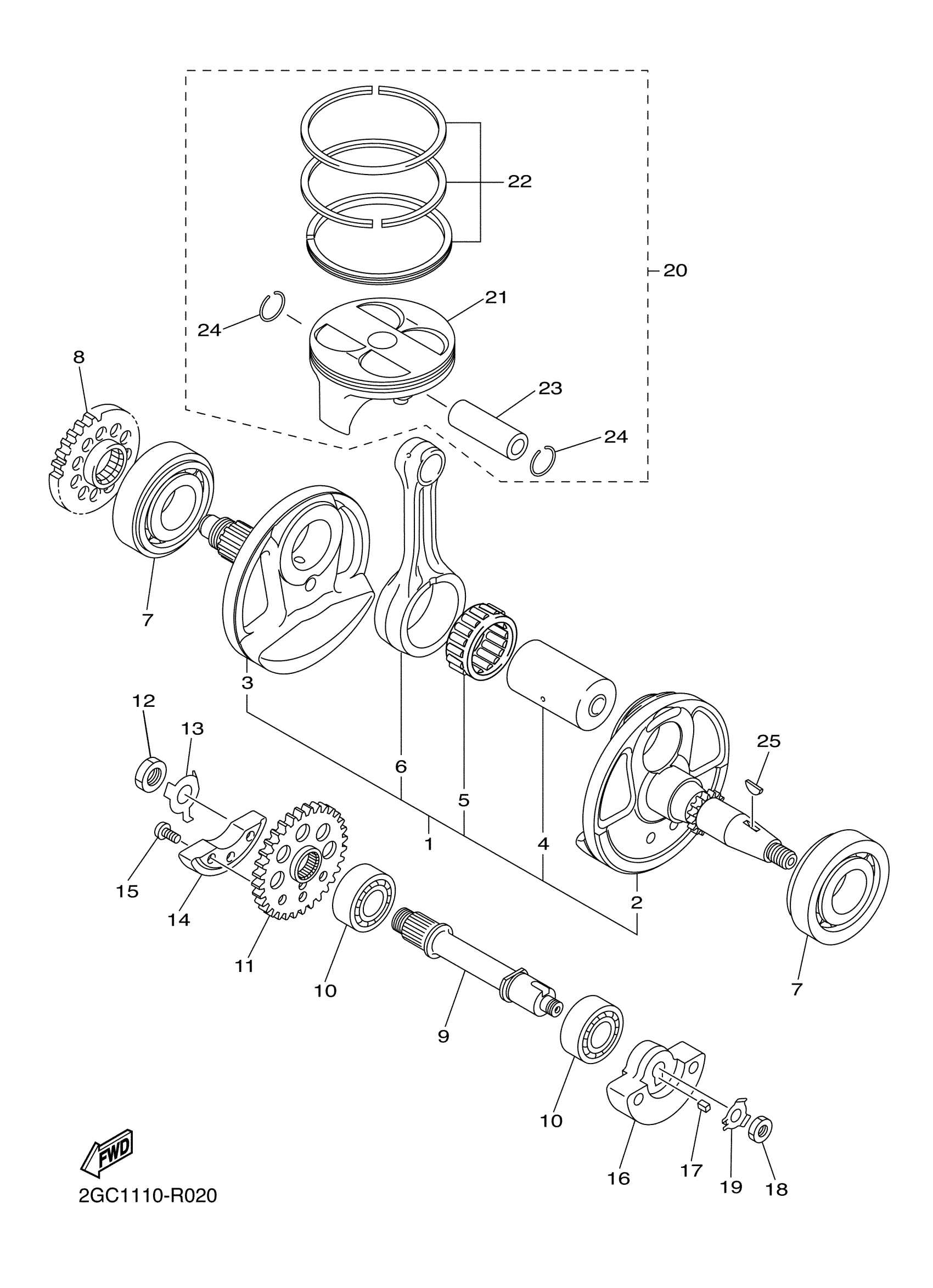

Yamaha YZ450FXH (YZ450FX) B916 2017 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

2GC-11400-00-00

$513.99

2

CRANK 1

2GC-11412-00-00

Unavailable

3

CRANK 2

2GC-11422-00-00

$238.99

4

PIN, CRANK 1

5TG-11681-01-00

$83.99

5

BEARING

93310-63458-00

Unavailable

6

ROD, CONNECTING

33D-11651-03-00

$129.99

7

BEARING

93306-30633-00

$101.99

8

GEAR, DRIVE

1SL-11536-00-00

Unavailable

9

SHAFT 1

33D-11455-00-00

Unavailable

10

BEARING

93304-20310-00

$111.99

11

GEAR, BALANCE WEIGHT

2S2-11531-00-00

$124.99

12

NUT, HEXAGON

90170-14171-00

$9.49

13

WASHER, LOCK(4GA)

90215-14287-00

$5.60

14

WEIGHT 1

2GC-11454-00-00

Unavailable

15

BOLT (33M)

91312-06014-00

$5.60

16

WEIGHT 2

2S2-11464-00-00

Unavailable

17

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

18

NUT(4BA)

90170-10405-00

Unavailable

19

WASHER, LOCK

90215-10009-00

Unavailable

20

PISTON ASSY

1SL-116A0-00-00

Unavailable

21

PISTON (STD)

1SL-11631-00-00

Unavailable

22

PISTON RING SET (STD)

33D-11603-00-00

Unavailable

23

PIN, PISTON

33D-11633-00-00

Unavailable

24

CIRCLIP (2F1)

93450-19052-00

Unavailable

25

KEY, WOODRUFF

90280-03006-00

Unavailable
