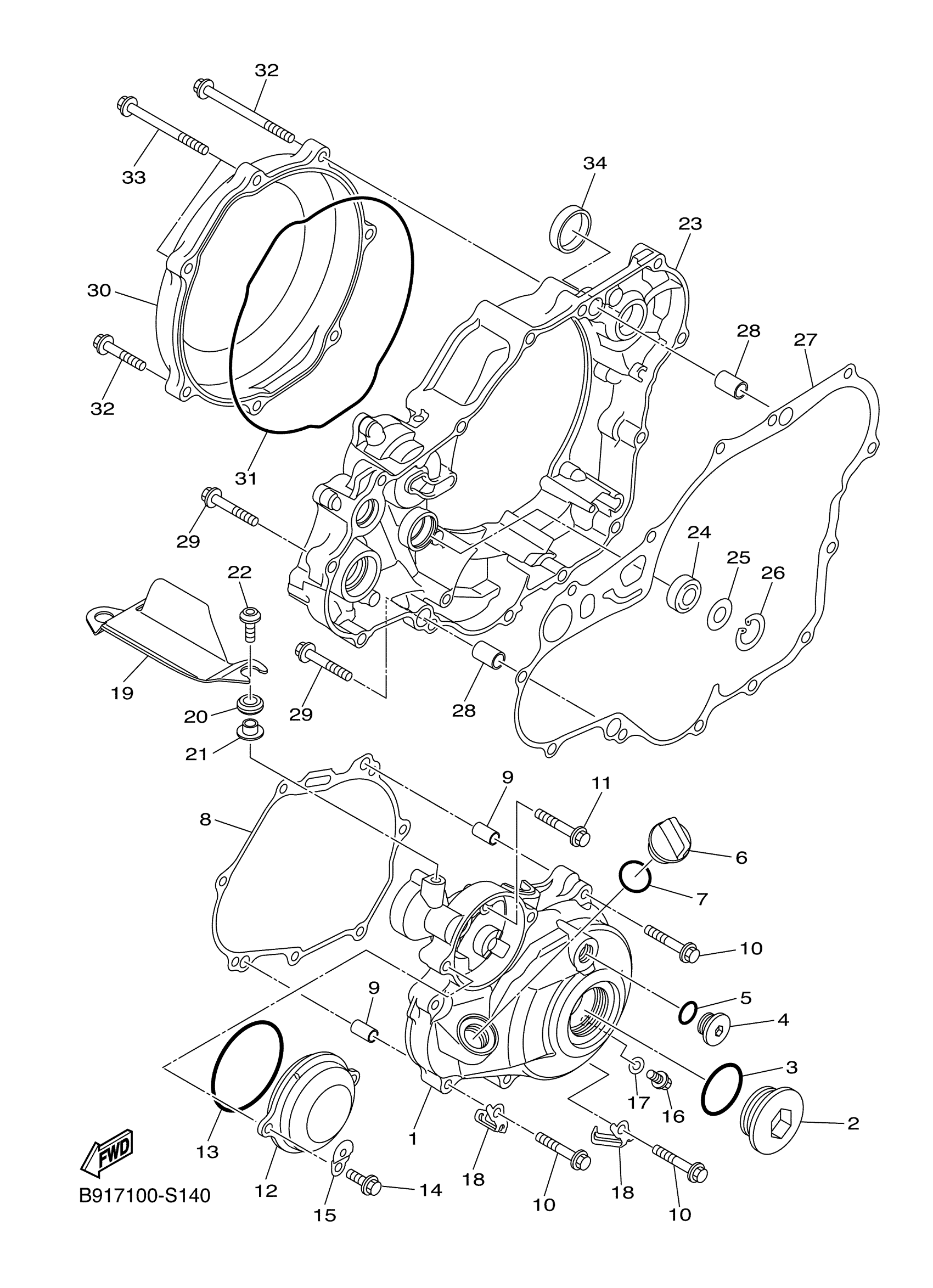

Yamaha YZ450FXH (YZ450FX) B916 2017 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2GC-15411-00-00

$137.99

2

PLUG, STRAIGHT SCREW

90340-36002-00

$15.99

3

O-RING

93210-35804-00

$0.48

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

1SL-15451-00-00

$14.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, FLANGE

95022-06030-00

$3.72

11

BOLT, FLANGE

95022-06020-00

$3.62

12

COVER ASSY 2

5TJ-1549B-30-00

Unavailable

13

O-RING (1J7)

93210-58346-00

$10.49

14

BOLT, FLANGE

95022-06014-00

$3.14

15

BRACKET

2GC-15199-00-00

$4.63

16

BOLT, FLANGE

95022-06012-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

CLAMP

90465-08062-00

Unavailable

19

COVER, STARTING MOTOR

2GC-15436-00-00

Unavailable

20

GROMMET(4FW)

90480-12581-00

Unavailable

21

COLLAR

90387-06142-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

23

COVER, CRANKCASE 3

1SL-15431-00-00

Unavailable

24

OIL SEAL(4GY)

93101-14164-00

Unavailable

25

WASHER (566)

90201-15701-00

Unavailable

26

CIRCLIP

99009-22500-00

Unavailable

27

GASKET, CRANKCASE COVER 3

1SL-15462-00-00

Unavailable

28

PIN, DOWEL

99530-12016-00

Unavailable

29

BOLT, FLANGE

95022-06030-00

$3.72

30

COVER, GENERATOR

33D-15415-10-00

Unavailable

31

GASKET

33D-15453-00-00

Unavailable

32

BOLT, FLANGE

95022-06025-00

Unavailable

33

BOLT, FLANGE

95022-06070-00

Unavailable

34

PLUG (3L3)

90338-30096-00

Unavailable
