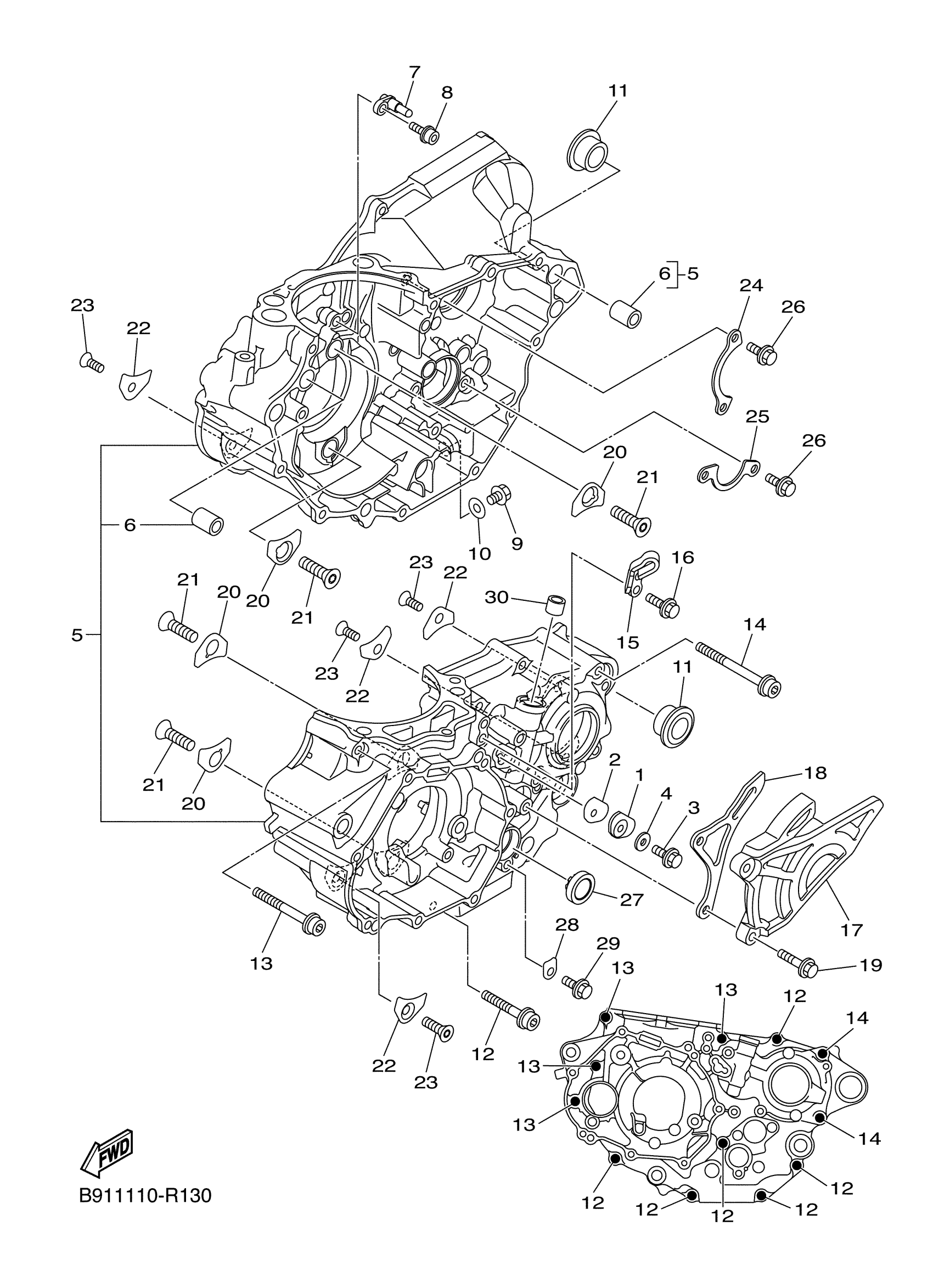

Yamaha YZ450FXH (YZ450FX) B916 2017 CRANKCASE Diagram

#

Description
Price

1

PLATE

BR9-13371-00-00

$11.49

2

GASKET

1SL-13475-00-00

$12.99

3

BOLT, FLANGE

90105-06203-00

$2.17

4

GASKET (4V2)

90430-06166-00

$3.76

5

CRANKCASE ASSY

1SL-15100-09-00

Unavailable

6

PIN, DOWEL

99530-14016-00

$3.80

7

NOZZLE 3

1SL-15155-00-00

Unavailable

8

BOLT (33M)

91312-06014-00

$5.60

9

BOLT, FLANGE

95022-10016-00

$8.49

10

GASKET

90430-10188-00

$6.99

11

COLLAR

90387-17015-00

$25.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

$2.12

13

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

$3.35

14

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

$3.76

15

HOLDER, CLUTCH CABLE

2GC-15441-00-00

Unavailable

16

BOLT, FLANGE

90105-06100-00

Unavailable

17

COVER, CRANKCASE 2

1SL-15421-00-00

Unavailable

18

GUIDE, CHAIN

1SL-17466-00-00

Unavailable

19

BOLT, FLANGE

90105-06189-00

Unavailable

20

PLATE, BEARING COVER

18P-15383-00-00

Unavailable

21

SCREW, COUNTERSUNK

90151-08003-00

Unavailable

22

PLATE, BEARING COVER

4JT-15381-01-00

Unavailable

23

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

24

PLATE, BEARING COVER

1SL-15388-00-00

Unavailable

25

PLATE, STOPPER 2

1SL-18562-00-00

Unavailable

26

BOLT, FLANGE

95022-06012-00

Unavailable

27

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

28

HOLDER

5XC-15118-00-00

Unavailable

29

BOLT, FLANGE

95022-06010-00

Unavailable

30

BUSH, BIMETAL FORMED

90384-06003-00

Unavailable
