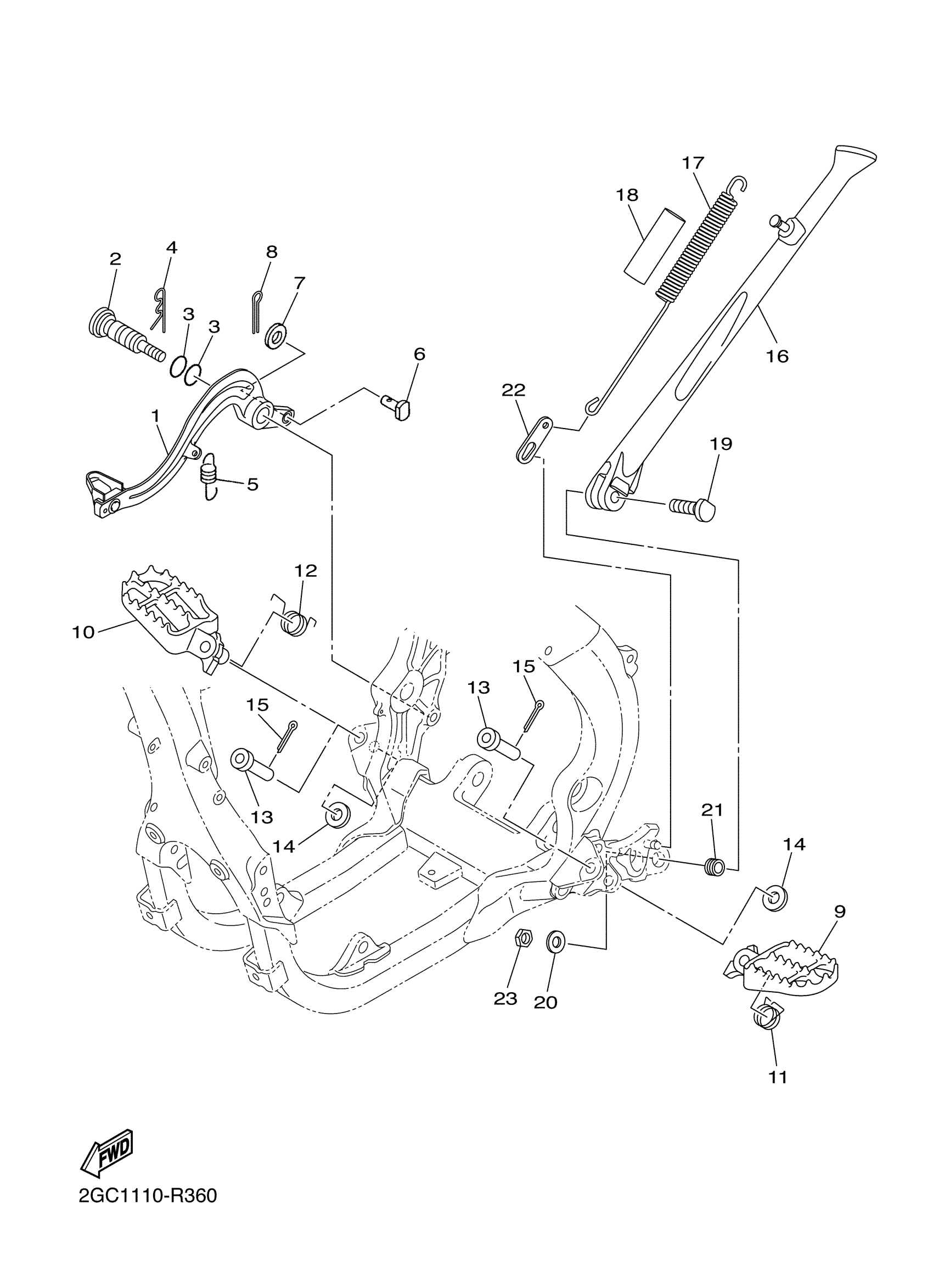

Yamaha YZ450FXG (YZ450FX) B911 2016 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

33D-27200-01-00

$130.99

2

BOLT

17D-27217-00-00

$24.44

3

O-RING (P95)

93210-11073-00

$5.39

4

CLIP

90468-16001-00

$4.21

5

SPRING, TENSION

90506-18019-00

$10.46

6

PIN, CLEVIS(2VM)

90240-08120-00

$10.02

7

WASHER, PLATE

90201-08044-00

$5.75

8

PIN, COTTER (648)

91490-20015-00

$1.72

9

FOOTREST 1

5XC-27411-M2-00

$114.11

10

FOOTREST 2

5XC-27421-M2-00

Unavailable

11

SPRING, TORSION

90508-28015-00

$7.35

12

SPRING, TORSION

90508-28018-00

$5.59

13

PIN, CLEVIS

90240-10004-00

$11.69

14

WASHER, PLATE

90201-10032-00

$1.02

15

PIN, COTTER

91490-25020-00

$2.73

16

STAND, SIDE

5UM-27311-E1-00

Unavailable

17

SPRING, TENSION

90506-30005-00

Unavailable

18

HOSE (L95)

90445-212G3-00

Unavailable

19

BOLT

90109-10026-00

Unavailable

20

WASHER, PLATE

90201-10045-00

Unavailable

21

COLLAR(3XP)

90387-1003G-00

Unavailable

22

LINK, SIDE STAND

5UM-27315-E0-00

Unavailable

23

NUT, SELF-LOCKING

90185-10018-00

Unavailable
