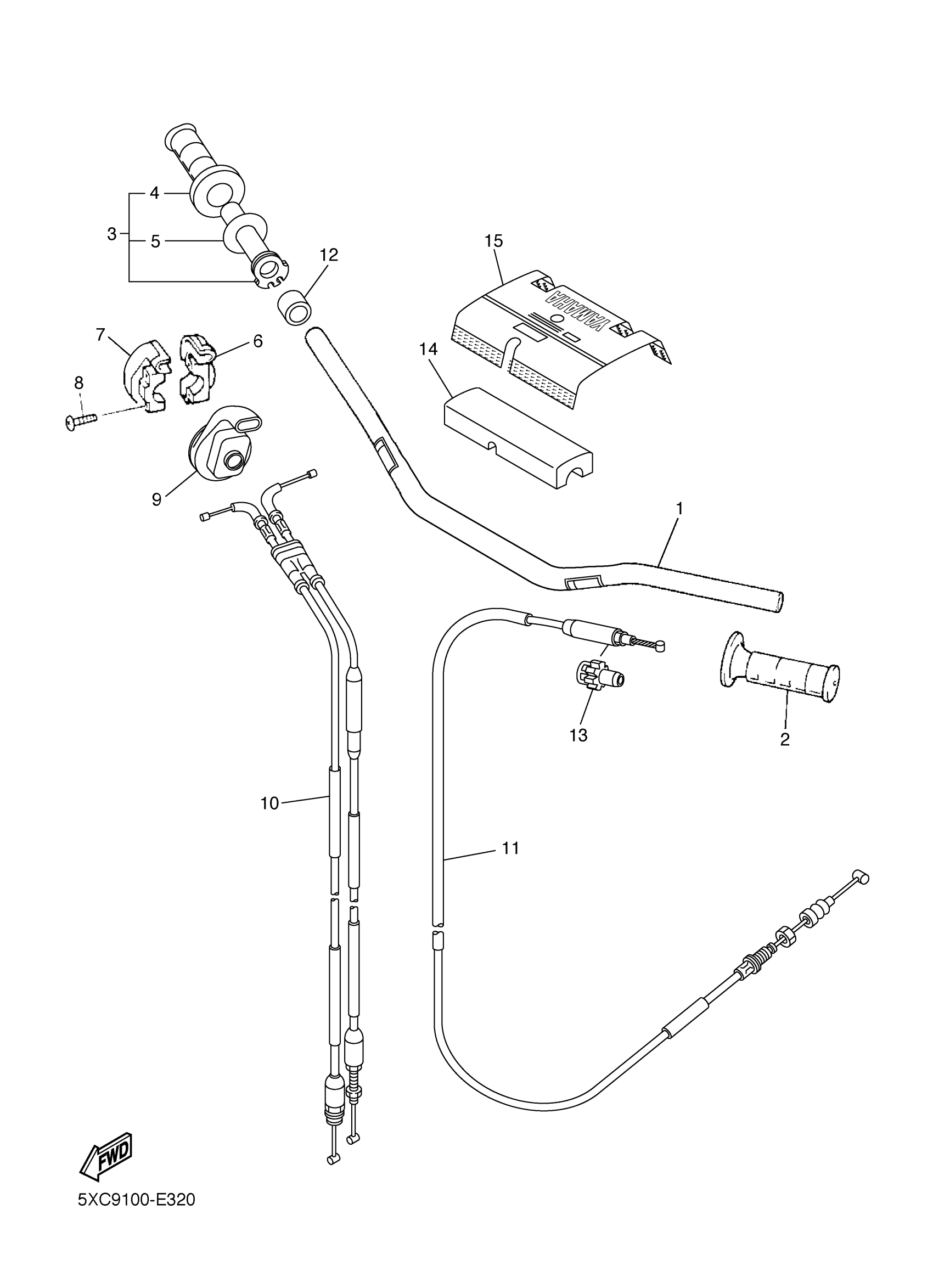

Yamaha YZ450FW (YZ450F) 2S27 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5XC-26111-L2-00

Unavailable

2

GRIP (LEFT)

4GY-26241-00-00

$23.96

3

GRIP ASSY

5TJ-26240-C0-00

$59.27

4

GRIP (RIGHT)

4GY-26242-00-00

$23.96

5

RING, LEAF

3Y1-26249-00-00

$7.96

6

CAP, GRIP UPPER

5BE-26281-01-00

$50.01

7

CAP, GRIP LOWER

5BE-26282-00-00

$32.49

8

SCREW, PAN HEAD

98517-05020-00

$1.26

9

COVER, CAP GRIP

5SF-26287-11-00

$13.83

10

THROTTLE CABLE ASSY

2S2-26302-00-00

$74.27

11

WIRE, CLUTCH

2S2-26335-71-00

Unavailable

12

COLLAR(1TG)

90387-225N2-00

$18.47

13

BOOT, CABLE

1C3-26342-50-00

$9.71

14

PROTECTOR, HANDLEBAR

5XC-26124-90-00

$34.37

15

COVER, HANDLEBAR UPPER 1

2S2-26143-70-00

Unavailable

15

COVER, HANDLEBAR UPPER 1

5XC-26143-90-00

Unavailable
