Description

Price

1

SIDE COVER ASSY 1

5XC-21710-90-00

$29.99

2

BOLT, FLANGE

90105-06103-00

$4.88

3

BOLT, WITH WASHER

90119-08095-00

$8.49

4

SIDE COVER ASSY 2

5XC-21720-90-00

$33.99

5

BOLT, FLANGE

90105-06103-00

$4.88

6

BOLT, WITH WASHER

90119-08095-00

$8.49

7

SIDE COVER ASSY 3 (INDIGO) (INDIGO) (PURPLISH WHITE SOLID 1)

2S2-21730-70-00

Unavailable

7

SIDE COVER ASSY 3

5XC-21730-90-00

$32.99

8

GRAPHIC SET 1 (PURPLISH WHITE SOLID 1)

2S2-2173L-00-00

Unavailable

8

GRAPHIC 1

5XC-2173E-10-00

$126.99

9

BOLT, FLANGE

90105-06064-00

$3.81

10

PANEL 1

2S2-2172A-70-00

$40.99

11

SIDE COVER ASSY 4

2S2-21740-70-00

$39.99

11

SIDE COVER ASSY 4

5XC-21740-90-00

$29.99

12

GRAPHIC SET 2 (PURPLISH WHITE SOLID 1)

2S2-2174L-00-00

Unavailable

12

GRAPHIC 2 (DEEP PURPLISH BLUE SOLID E)

5XC-2173F-10-00

Unavailable

13

BOLT, FLANGE

90105-06064-00

$3.81

14

PANEL 1

2S2-2172A-80-00

Unavailable

15

COLLAR

5BE-21749-00-00

Unavailable

16

COLLAR

90387-06009-00

Unavailable

17

COLLAR

5TA-21749-00-00

Unavailable

18

COLLAR

5XC-21749-90-00

Unavailable

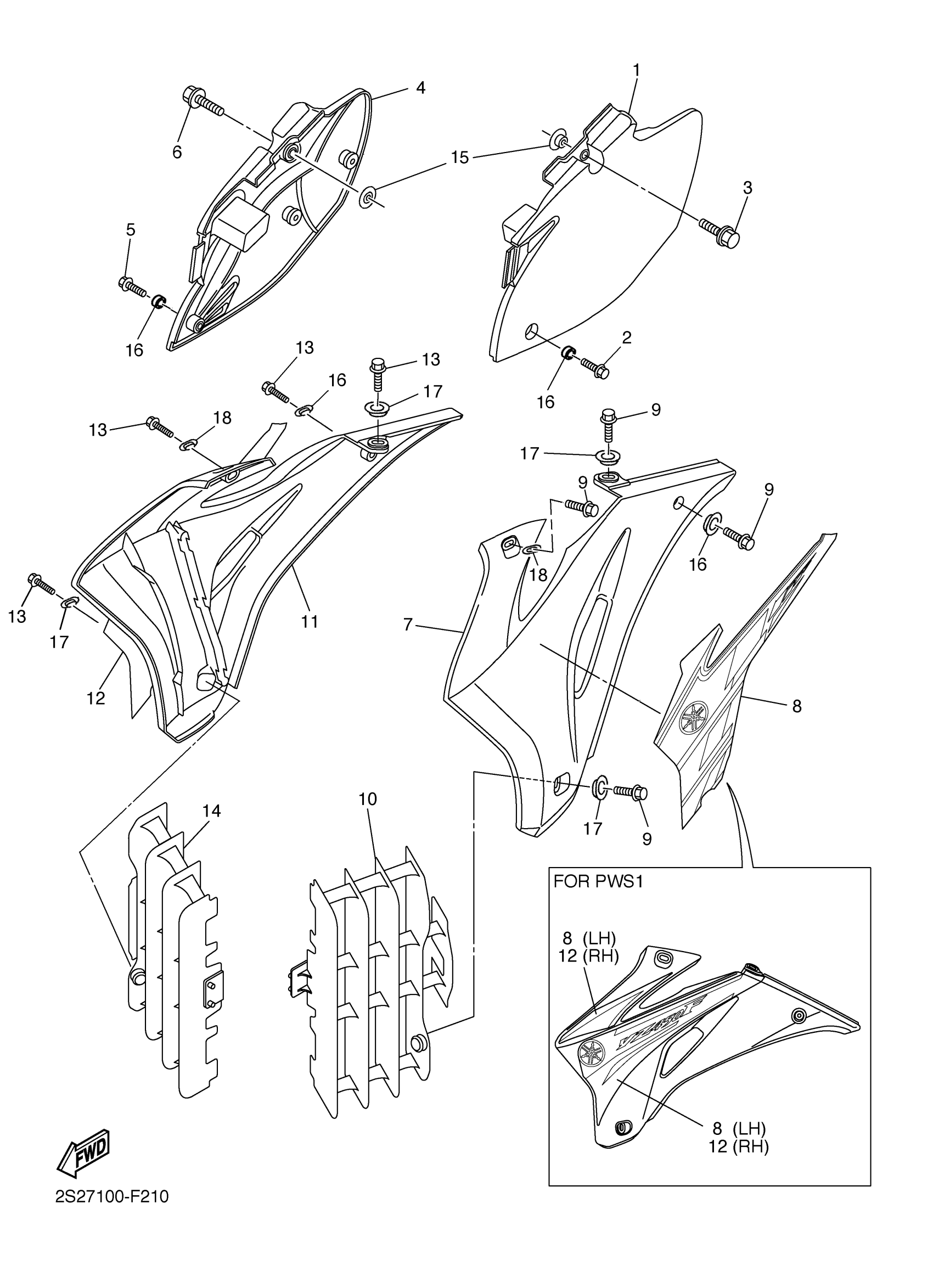

Yamaha YZ450FW (YZ450F) 2S27 2007 SIDE COVER Diagram

SIDE COVER ASSY 1

BOLT, FLANGE

BOLT, WITH WASHER

SIDE COVER ASSY 2

BOLT, FLANGE

BOLT, WITH WASHER

SIDE COVER ASSY 3 (INDIGO) (INDIGO) (PURPLISH WHITE SOLID 1)

SIDE COVER ASSY 3

GRAPHIC SET 1 (PURPLISH WHITE SOLID 1)

GRAPHIC 1

BOLT, FLANGE

PANEL 1

SIDE COVER ASSY 4

SIDE COVER ASSY 4

GRAPHIC SET 2 (PURPLISH WHITE SOLID 1)

GRAPHIC 2 (DEEP PURPLISH BLUE SOLID E)

BOLT, FLANGE

PANEL 1

COLLAR

COLLAR

COLLAR

COLLAR
