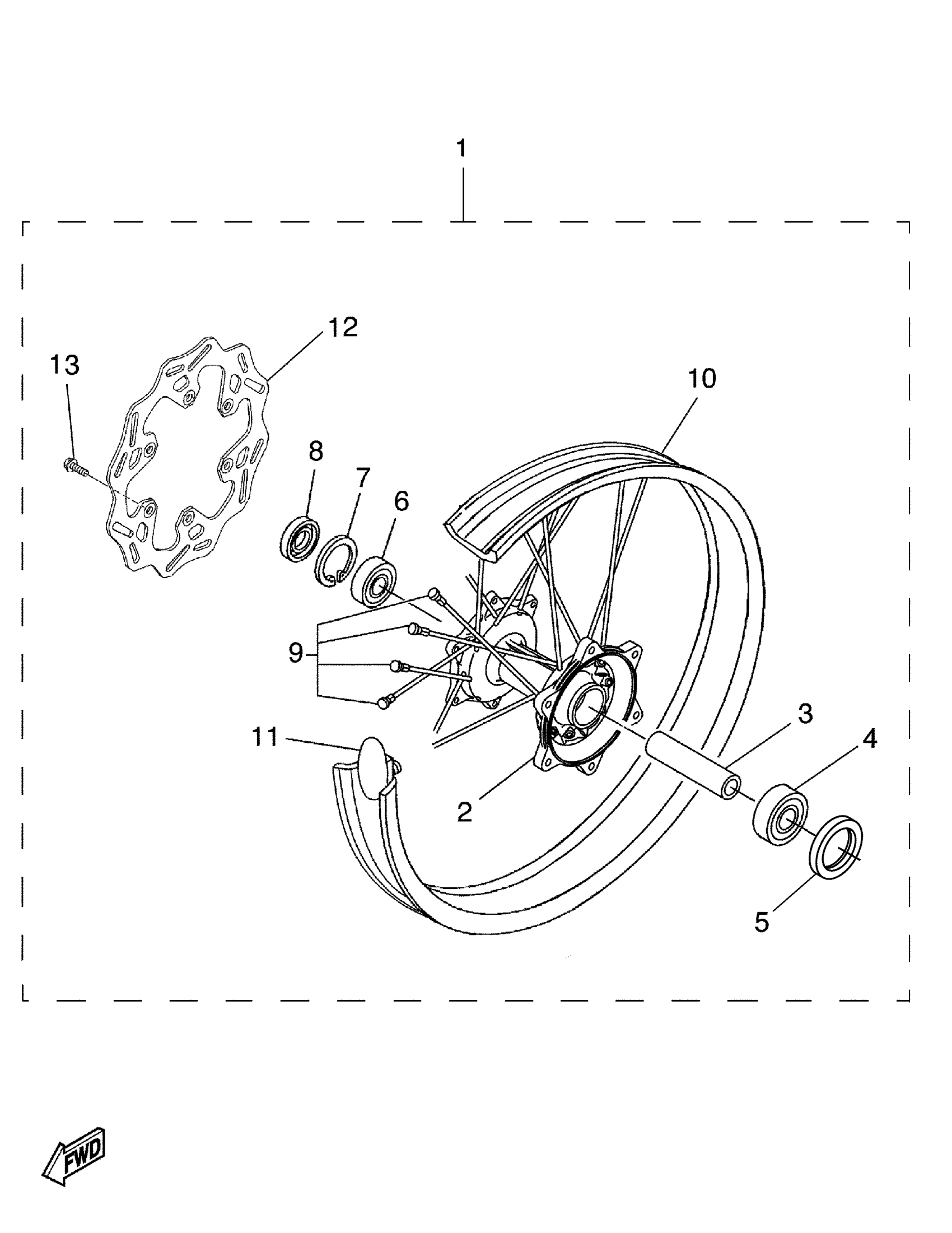

Yamaha YZ450FW (YZ450F) 2S27 2007 REAR WHEEL KIT Diagram

#

Description
Price

1

REAR WHEEL ASSY. - YZ

1P8-W2539-H0-00

Unavailable

2

HUB, REAR

5ET-25311-00-00

$249.71

3

SPACER, BEARING

5ET-25317-00-00

$40.00

4

BEARING

93306-27212-00

$61.49

5

OIL SEAL

93106-30001-00

$9.34

6

BEARING(85G)

93306-07202-00

$31.48

7

CIRCLIP

99009-45500-00

$2.33

8

OIL SEAL

93106-30045-00

$7.40

9

SPOKE SET, REAR

5HD-25304-00-00

$219.95

10

RIM (2.15-19)

94421-19005-00

Unavailable

11

SPACER, BEAD

3JE-25394-00-00

$31.11

12

DISK, REAR BRAKE 2

B11-2582W-00-00

$161.11

13

BOLT, FLANGE

90105-06109-00

$5.87
