Description

Price

1

OIL PUMP ASSY

2S2-13300-10-00

$168.99

2

ROTOR ASSY 2

5TA-13320-00-00

$48.99

3

PIN, DOWEL(1HX)

93603-16219-00

$8.49

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

PIN, DOWEL

99530-08012-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

7

SHAFT, IDLE GEAR

2S2-13342-00-00

$27.99

8

SCREW

90149-06068-00

$4.35

9

GEAR, OIL PUMP IDLE

2S2-13341-00-00

$86.99

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

WASHER PLATE 164185720000

90201-12166-00

$9.49

12

HOUSING, STRAINER

2S2-13412-00-00

Unavailable

13

STRAINER, OIL

5BE-13411-00-00

$23.99

14

BOLT, FLANGE

95022-06030-00

$3.72

15

PIN, DOWEL(3VD)

99530-10114-00

$2.55

16

HOSE (L365)

90445-14009-00

Unavailable

17

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

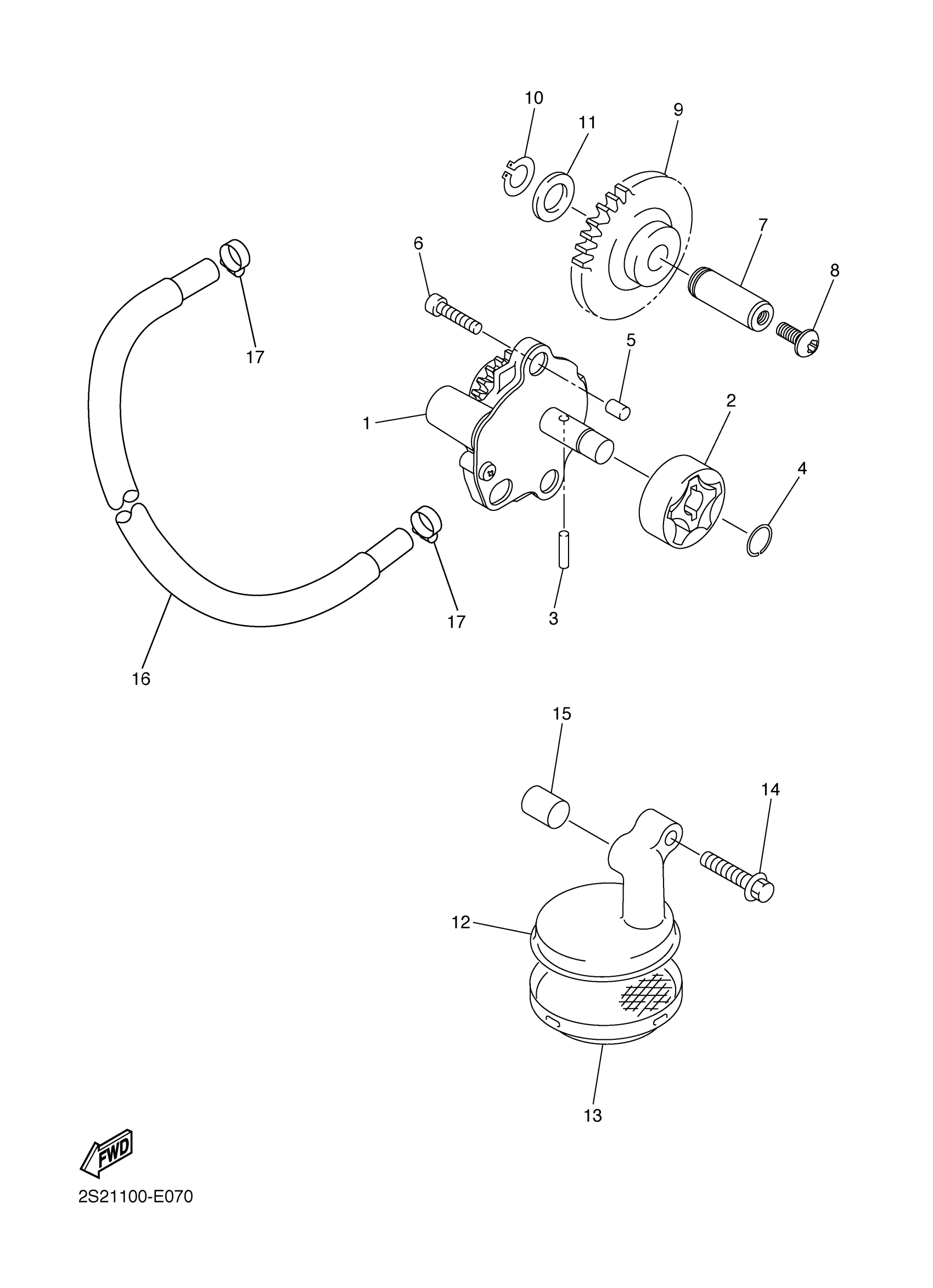

Yamaha YZ450FW (YZ450F) 2S27 2007 OIL PUMP Diagram

OIL PUMP ASSY

ROTOR ASSY 2

PIN, DOWEL(1HX)

CIRCLIP(1WG)

PIN, DOWEL

BOLT, HEXAGON SOCKET HEAD(1VJ)

SHAFT, IDLE GEAR

SCREW

GEAR, OIL PUMP IDLE

CIRCLIP(10Y)

WASHER PLATE 164185720000

HOUSING, STRAINER

STRAINER, OIL

BOLT, FLANGE

PIN, DOWEL(3VD)

HOSE (L365)

HOSE CLAMP ASSY(62T)
