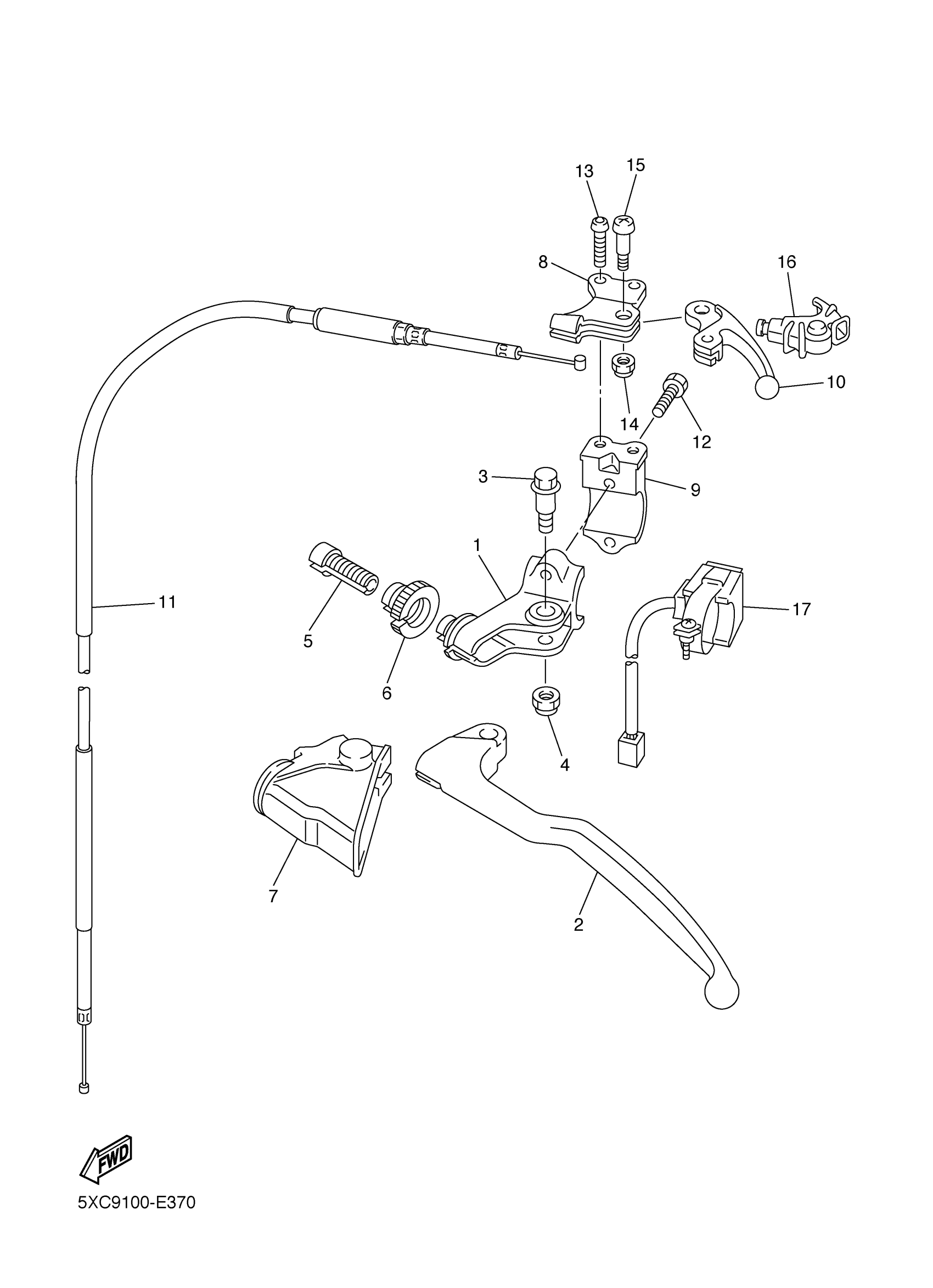

Yamaha YZ450FW (YZ450F) 2S27 2007 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5XE-82911-00-00

$32.99

2

LEVER 1

5MV-83912-01-00

$34.99

3

BOLT

90109-06034-00

$7.49

4

NUT, LENS FITTING

5LP-84126-10-00

$6.99

5

BOLT, ADJUSTING

5HD-26337-00-00

$11.99

6

BOLT, CABLE ADJUST

5HD-83951-01-00

$44.99

7

COVER, HANDLE LEVER 1

5HD-26372-00-00

$17.49

8

HOLDER, STARTER LEVER

5XD-82946-01-00

$31.99

9

HOLDER, LEVER LOWER 1

5XD-82913-01-00

$16.49

10

LEVER, STARTER

5TA-83941-00-00

Unavailable

11

CABLE, STARTER 2

2S2-26334-00-00

$39.99

12

BOLT(6A1)

97095-05016-00

$1.11

13

BOLT, BUTTON HEAD

92012-05012-00

$4.41

14

NUT, U

95617-05100-00

$9.49

15

SCREW (4X4)

90149-05162-00

$9.49

16

BOOT

5TA-26339-00-00

Unavailable

17

SWITCH, HANDLE 1

1C3-83976-02-00

Unavailable
