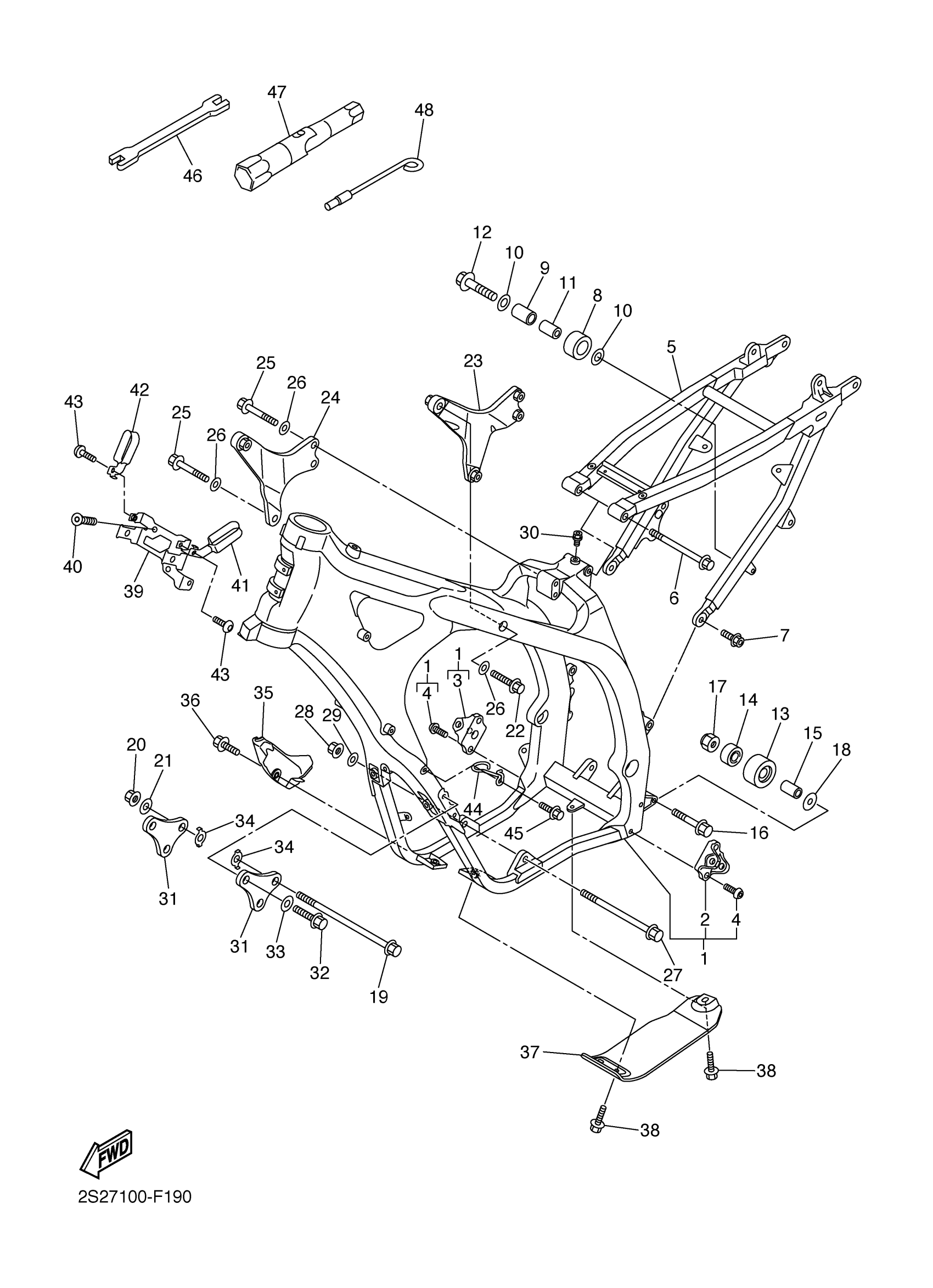

Yamaha YZ450FW (YZ450F) 2S27 2007 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

2S2-21101-00-00

Unavailable

2

BRACKET, FOOTREST

1C3-21447-10-00

$37.99

3

BRACKET, FOOTREST

1C3-21448-10-00

$37.99

4

SCREW

90149-10033-00

$5.60

5

REAR FRAME COMP.

2S2-21190-70-00

Unavailable

6

BOLT, FLANGE

90105-08156-00

$10.49

7

BOLT, WASHER BASED(36Y)

90105-08307-00

$9.49

8

TENSIONER

30X-22178-00-00

$35.99

9

BUSH

4V4-22184-00-00

$4.47

10

WASHER, PLATE

90201-08045-00

$5.60

11

COLLAR

90387-08041-00

$8.49

12

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

13

TENSIONER

3JD-22178-20-00

$43.99

14

BEARING (3X3)

93300-60804-00

$12.49

15

COLLAR(1NL)

90387-086N4-00

$9.49

16

BOLT, FLANGE

90105-08112-00

Unavailable

17

NUT, U

95617-08100-00

Unavailable

18

WASHER, PLATE

90201-08043-00

Unavailable

19

BOLT, FLANGE

90105-10193-00

Unavailable

20

NUT(4KG)

90179-10658-00

Unavailable

21

WASHER, PLATE

90201-10045-00

Unavailable

22

BOLT, FLANGE

90105-10189-00

Unavailable

23

BRACKET, REAR UPPER 1

2S2-21425-70-00

Unavailable

24

BRACKET, REAR UPPER 2

2S2-21426-70-00

Unavailable

25

BOLT, FLANGE

90105-10191-00

Unavailable

26

WASHER, PLATE

90201-10045-00

Unavailable

27

BOLT, FLANGE

90105-10176-00

Unavailable

28

NUT(4KG)

90179-10658-00

Unavailable

29

WASHER, PLATE

90201-10045-00

Unavailable

30

NUT

1C3-21244-20-00

Unavailable

31

BRACKET, FRONT LOWER 1

2S2-21417-00-00

Unavailable

32

BOLT, FLANGE

90105-08143-00

Unavailable

33

. WASHER

92902-08200-00

Unavailable

34

PLATE, PATCH

5XC-21456-90-00

Unavailable

35

PROTECTOR, ENGINE

2S2-21471-00-00

Unavailable

36

BOLT, WITH WASHER

90119-06146-00

Unavailable

37

GUARD, ENGINE 2

2S2-2147E-00-00

Unavailable

38

BOLT, WITH WASHER

90119-06146-00

Unavailable

39

BRACKET, C.D.I. UNIT

5XC-21274-90-00

Unavailable

40

SCREW, COUNTERSUNK

90151-06034-00

Unavailable

41

HOLDER, CLUTCH CABLE

2S2-21163-70-00

Unavailable

42

HOLDER, CABLE

5XC-21164-90-00

Unavailable

43

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

44

GUIDE, CABLE

5XC-21288-90-00

Unavailable

45

BOLT, FLANGE

90105-05014-00

Unavailable

46

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

47

BOX, SPARK PLUG

5TA-2814F-00-00

Unavailable

48

TOOL, SPECIAL

5XC-28116-00-00

Unavailable
