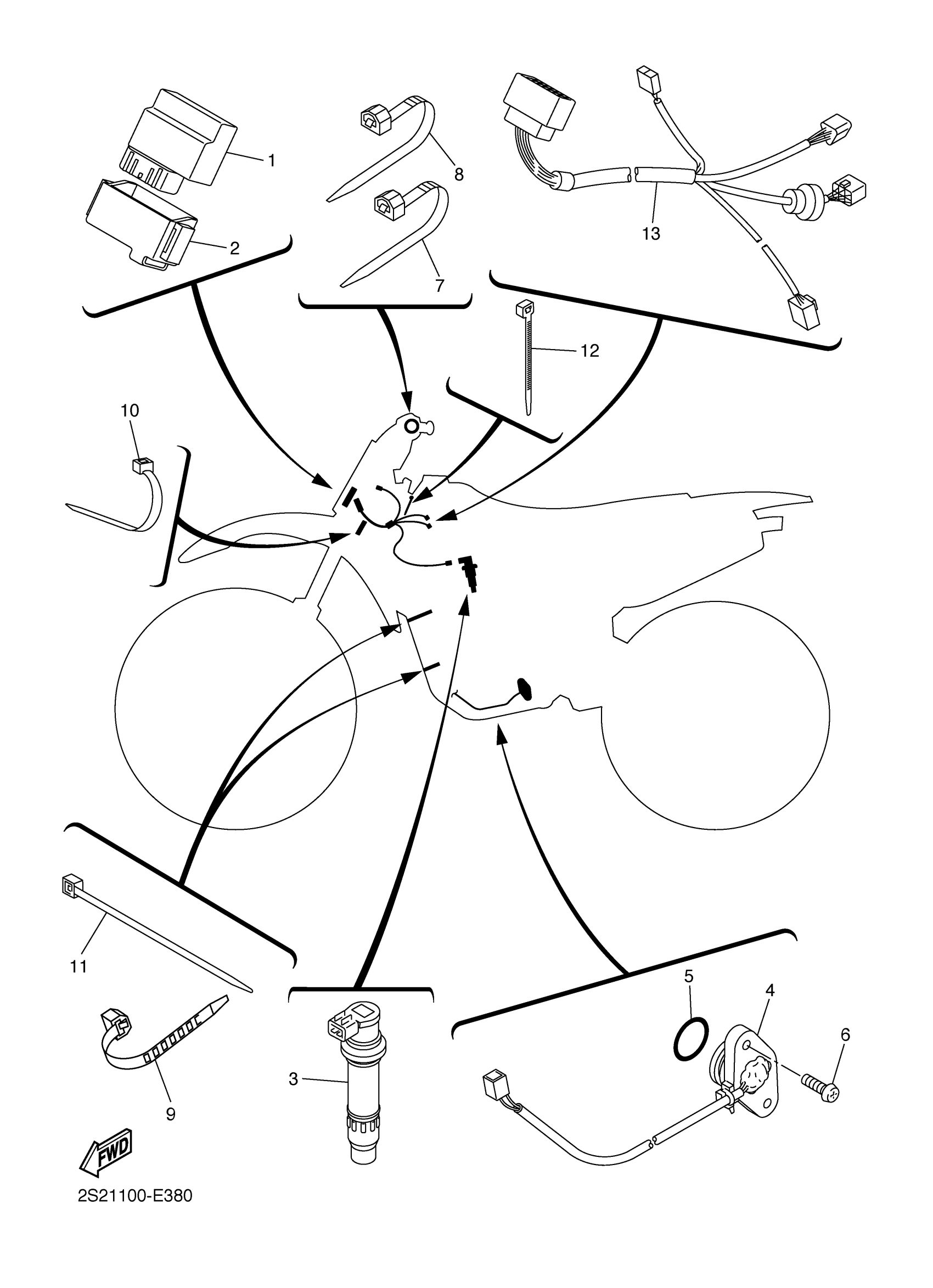

Yamaha YZ450FW (YZ450F) 2S27 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

2S2-85540-70-00

Unavailable

2

BAND

1C3-85546-00-00

Unavailable

3

IGNITION COIL ASSY

5TA-82310-10-00

$202.99

4

NEUTRAL SWITCH ASSY

2S2-82540-01-00

Unavailable

5

O-RING

93210-21001-00

$5.60

6

SCREW, BIND

98902-05014-00

$1.71

7

CLAMP

90464-13077-00

$8.49

8

CLAMP(4FM)

90464-15195-00

$4.41

9

CLAMP(4FM)

90464-15195-00

$4.41

10

CLAMP

5Y9-12491-00-00

$6.99

11

CLAMP(MF1)

90464-15152-00

$5.60

12

CLAMP(MF1)

90464-15152-00

$5.60

13

WIRE, SUB LEAD

2S2-82509-01-00

Unavailable
