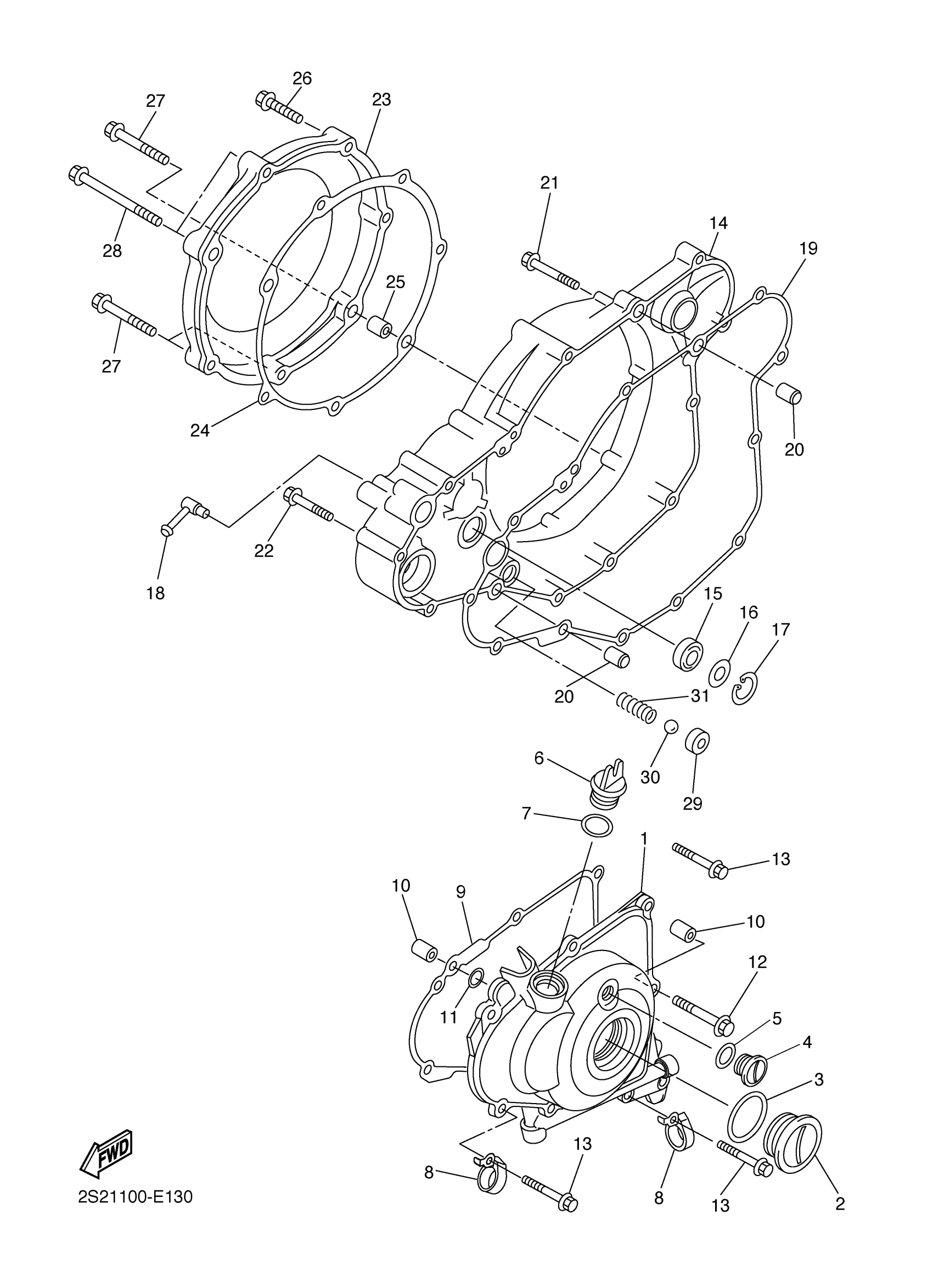

Yamaha YZ450FW (YZ450F) 2S27 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2S2-15411-01-00

$255.99

2

PLUG, STRAIGHT SCREW

90340-27002-00

Unavailable

3

O-RING(1KT)

93210-27778-00

$8.49

4

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

HOLDER

2S2-15378-00-00

$10.99

9

GASKET, CRANKCASE COVER 1

2S2-15451-00-00

$22.99

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

O-RING

93210-08003-00

$9.49

12

BOLT, FLANGE

95022-06040-00

$3.45

13

BOLT, FLANGE

95022-06030-00

$3.72

14

COVER, CRANKCASE 3

1DX-15431-00-00

$427.99

15

OIL SEAL(4GY)

93101-14164-00

$11.49

16

WASHER (566)

90201-15701-00

Unavailable

17

CIRCLIP

99009-22500-00

Unavailable

18

PIPE, BREATHER

5XC-15373-00-00

Unavailable

19

GASKET, CRANKCASE COVER 3

2S2-15462-10-00

Unavailable

20

PIN, DOWEL(J38)

91812-16001-00

Unavailable

21

BOLT, FLANGE

95022-06040-00

$3.45

22

BOLT, FLANGE

95022-06030-00

$3.72

23

COVER, GENERATOR

5TA-15415-10-00

Unavailable

24

GASKET

5TA-15453-00-00

Unavailable

25

PIN, DOWEL(3XW)

91808-16023-00

$8.49

26

BOLT, FLANGE

95022-06030-00

$3.72

27

BOLT, FLANGE

95022-06040-00

$3.45

28

BOLT, FLANGE

95022-06080-00

Unavailable

29

SEAT, CHECK BALL

583-13113-00-00

Unavailable

30

BALL

93503-08007-00

Unavailable

31

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable
