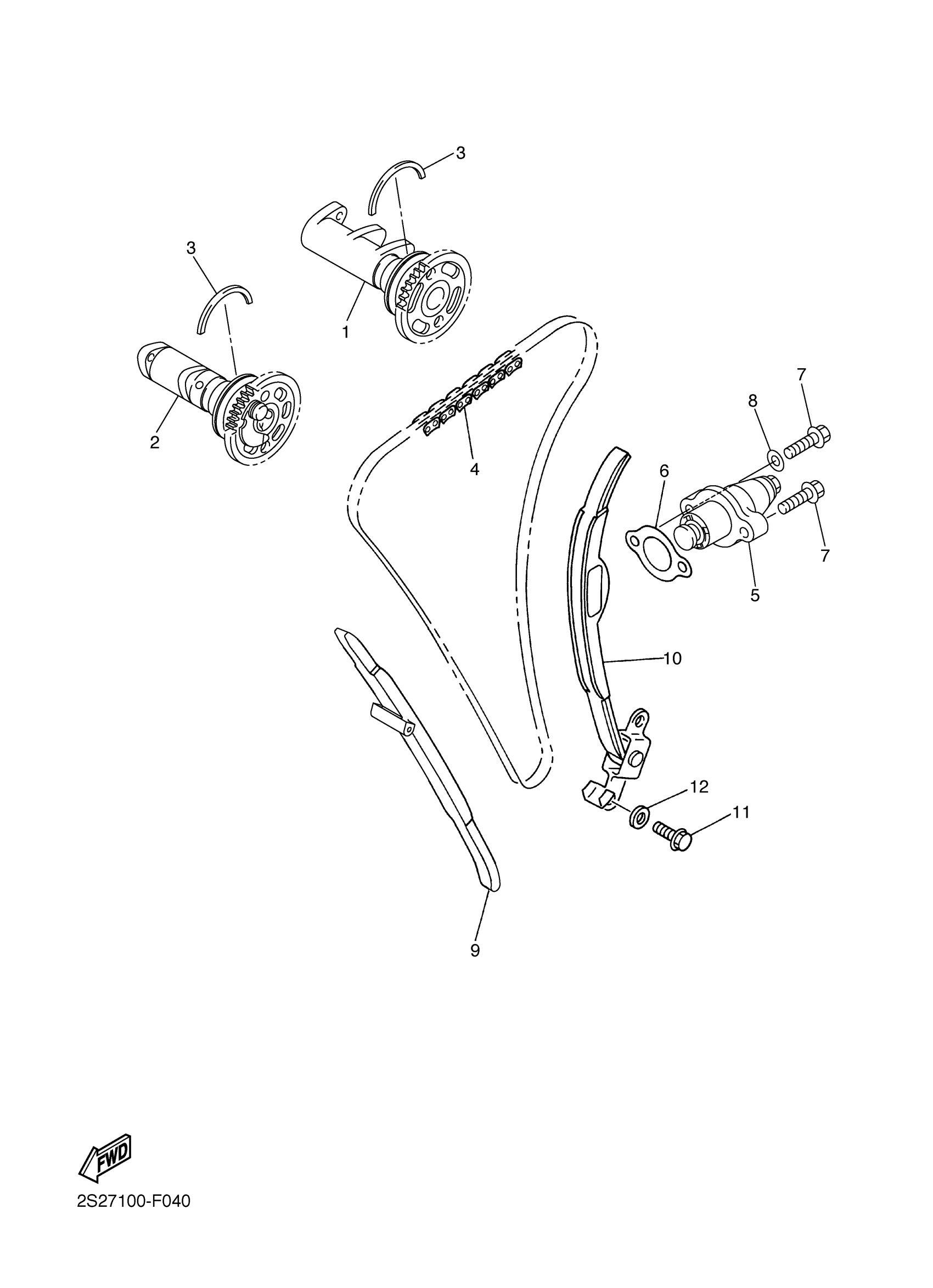

Yamaha YZ450FW (YZ450F) 2S27 2007 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5TA-12170-20-00

Unavailable

2

CAMSHAFT ASSY 2

5TA-12180-20-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-57118-00

$29.63

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$111.71

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

7

BOLT, FLANGE

95022-06025-00

$1.37

8

GASKET 256113960000

90430-06014-00

Unavailable

9

DAMPER, CHAIN 1

2S2-12251-00-00

$28.73

10

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

12

WASHER, PLAIN (646)

92990-06600-00

$1.84
