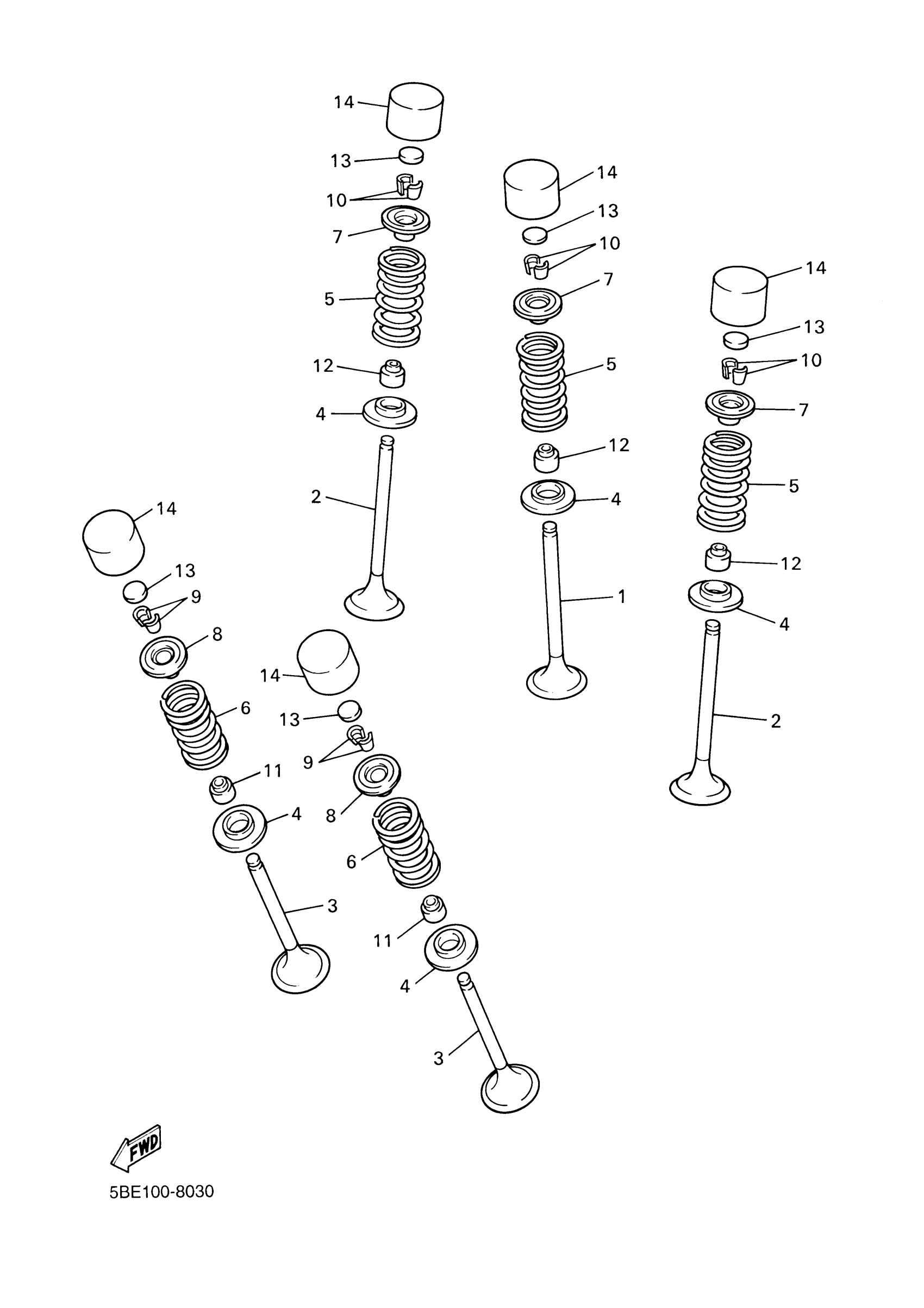

Yamaha YZ450FV (YZ450F) 2S21 2006 VALVE Diagram

VALVE, INTAKE

5TA-12111-00-00

$138.99

VALVE, INTAKE 2

5TA-12112-00-00

$138.99

VALVE, EXHAUST

5TA-12121-00-00

$164.99

SEAT, VALVE SPRING 2

3GM-12126-00-00

$4.47

SPRING, VALVE INNER

5TA-12113-00-00

$23.99

SPRING, VALVE OUTER

5TA-12114-00-00

$20.99

RETAINER, VALVE SPRING

5BE-12117-00-00

$16.49

RETAINER, VALVE SPRING

4GY-12117-00-00

$20.99

COTTER, VALVE

1AA-12118-00-00

$11.99

COTTER, VALVE

1WG-12118-00-00

$8.99

SEAL, VALVE STEM

33M-12119-00-00

$16.49

SEAL, VALVE STEM

4SV-12119-00-00

$24.99

PAD, ADJUSTING

3LD-12168-00-00

$16.49

PAD, ADJUSTING

3LD-12168-20-00

$17.49

PAD, ADJUSTING

3LD-12168-40-00

$17.49

PAD, ADJUSTING (1.35)

3LD-12168-60-00

Unavailable

PAD, ADJUSTING (1.40)

3LD-12168-80-00

Unavailable

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

Unavailable

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

Unavailable

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

Unavailable

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

Unavailable

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

Unavailable

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

PAD, ADJUSTING (2.10)

3LD-12169-90-00

Unavailable

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

Unavailable

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

Unavailable

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

Unavailable

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

Unavailable

LIFTER, VALVE

3FV-12153-19-00

Unavailable
