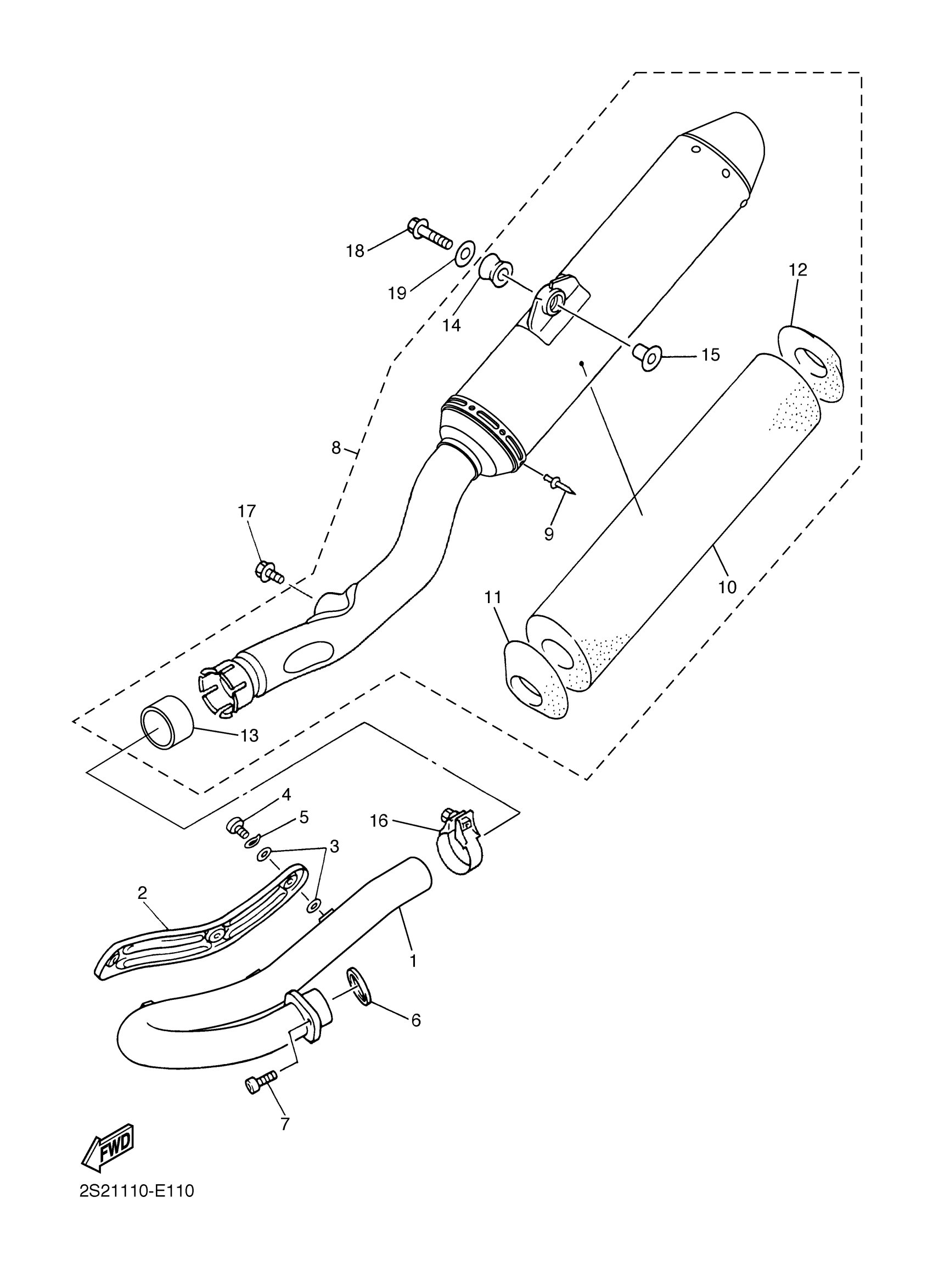

Yamaha YZ450FV (YZ450F) 2S21 2006 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2S2-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5TA-14628-00-00

Unavailable

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

4

SCREW, BIND(2TV)

98980-06008-00

$3.19

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$11.99

7

BOLT,SOCKET

91314-08020-00

$8.49

8

SILENCER ASSY

2S2-14750-00-00

Unavailable

9

. RIVET, BLIND

90267-48084-00

Unavailable

10

. FIBER

2S2-1469A-00-00

Unavailable

11

FIBER

2S2-1469E-00-00

Unavailable

12

FIBER

2S2-1469F-00-00

$30.99

13

GASKET, MUFFLER

5XD-14714-00-00

$30.99

14

DAMPER, MUFFLER

5BE-14747-00-00

$10.99

15

COLLAR

90387-08081-00

$8.49

16

BAND, SILENCER

5BE-14788-00-00

Unavailable

17

BOLT, FLANGE

90105-08085-00

Unavailable

18

BOLT, FLANGE

95817-08035-00

Unavailable

19

WASHER, PLATE

90201-08008-00

Unavailable
