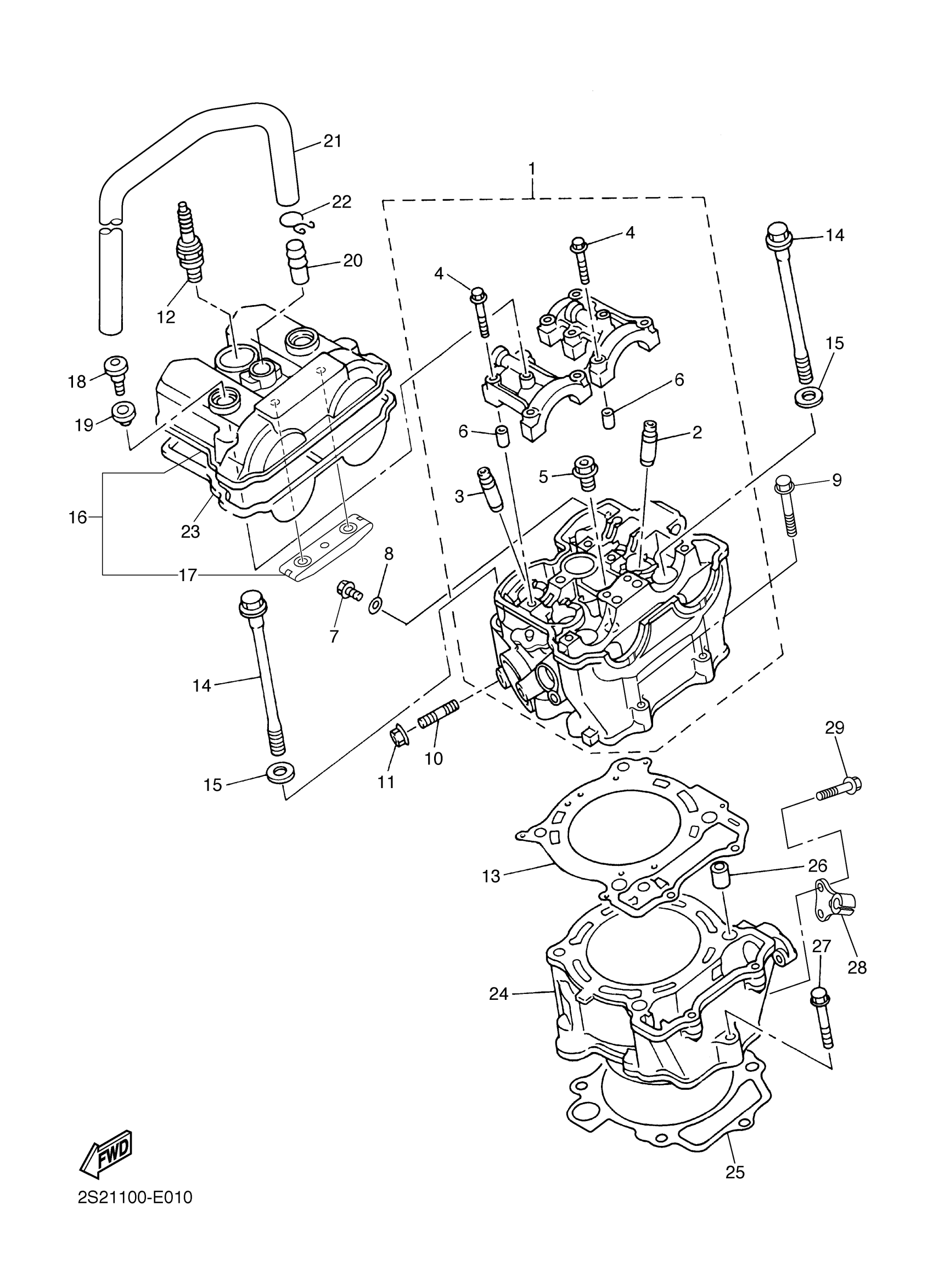

Yamaha YZ450FV (YZ450F) 2S21 2006 CYLINDER Diagram

CYLINDER HEAD ASSY

2S2-11102-00-00

Unavailable

GUIDE, INTAKE VALVE

5TA-11133-10-00

$53.99

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

BOLT, WASHER BASED

90105-06027-00

$7.49

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, FLANGE

95022-06010-00

$5.60

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, FLANGE

95022-06035-00

$3.55

BOLT, STUD

90116-08022-00

$7.49

NUT,FLANGE(J10)

95702-08500-00

$1.43

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

2S2-11181-00-00

$53.99

BOLT, FLANGE

90105-10163-00

$10.49

WASHER, PLATE

90201-10025-00

Unavailable

COVER, CYLINDER HEAD 1

2S2-11190-00-00

Unavailable

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

PIPE, BREATHER 2

371-11167-01-00

Unavailable

PIPE, BREATHER 1

2S2-11166-00-00

Unavailable

CLIP (371)

90467-14015-00

Unavailable

GASKET, HEAD COVER 1

2S2-11193-00-00

Unavailable

CYLINDER 1

2S2-11311-11-00

Unavailable

GASKET, CYLINDER

2S2-11351-00-00

Unavailable

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

BOLT, FLANGE

95022-06035-00

$3.55

HOLDER, CLUTCH CABLE

2S2-15441-00-00

Unavailable

BOLT, FLANGE

95022-06016-00

Unavailable
