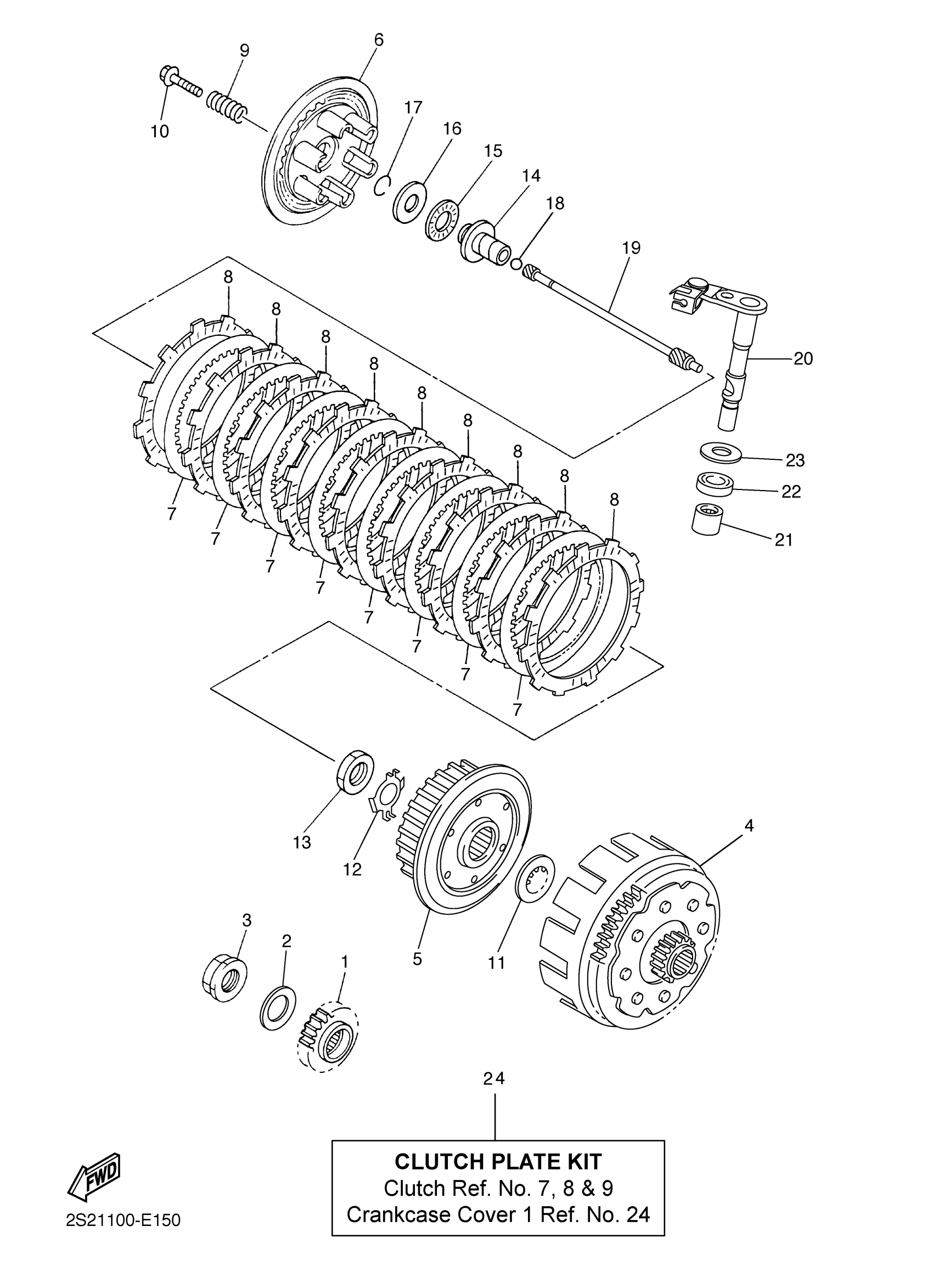

Yamaha YZ450FV (YZ450F) 2S21 2006 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER, CONICAL SPRING(83R)

90208-25045-00

$15.99

3

NUT

90179-20009-00

$20.99

4

PRIMARY DRIVEN GEAR COMP.

5XD-16150-60-00

$589.99

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

5JG-16351-00-00

$90.99

7

PLATE, CLUTCH 2

5JG-16325-10-00

$7.99

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION(1UY)

90501-231E9-00

$11.49

10

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

11

PLATE, THRUST 1

5XD-16154-00-00

$15.49

12

WASHER, LOCK

90215-20005-00

$8.49

13

NUT (34L)

90170-20327-00

$18.99

14

ROD, PUSH 1

5JG-16356-00-00

Unavailable

15

BEARING, THRUST (713)

93340-21505-00

$18.99

16

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

17

CIRCLIP (4G0)

93440-10085-00

Unavailable

18

BALL (498)

93511-32027-00

Unavailable

19

ROD, PUSH 2

2S2-16357-01-00

Unavailable

20

PUSH LEVER ASSY

2S2-16380-00-00

Unavailable

21

BEARING

93317-11287-00

Unavailable

22

OIL SEAL (4G0)

93102-12224-00

Unavailable

23

CIRCLIP(1EV)

99009-20500-00

Unavailable

24

CLUTCH PLATE KIT

2S2-W001G-00-00

Unavailable
