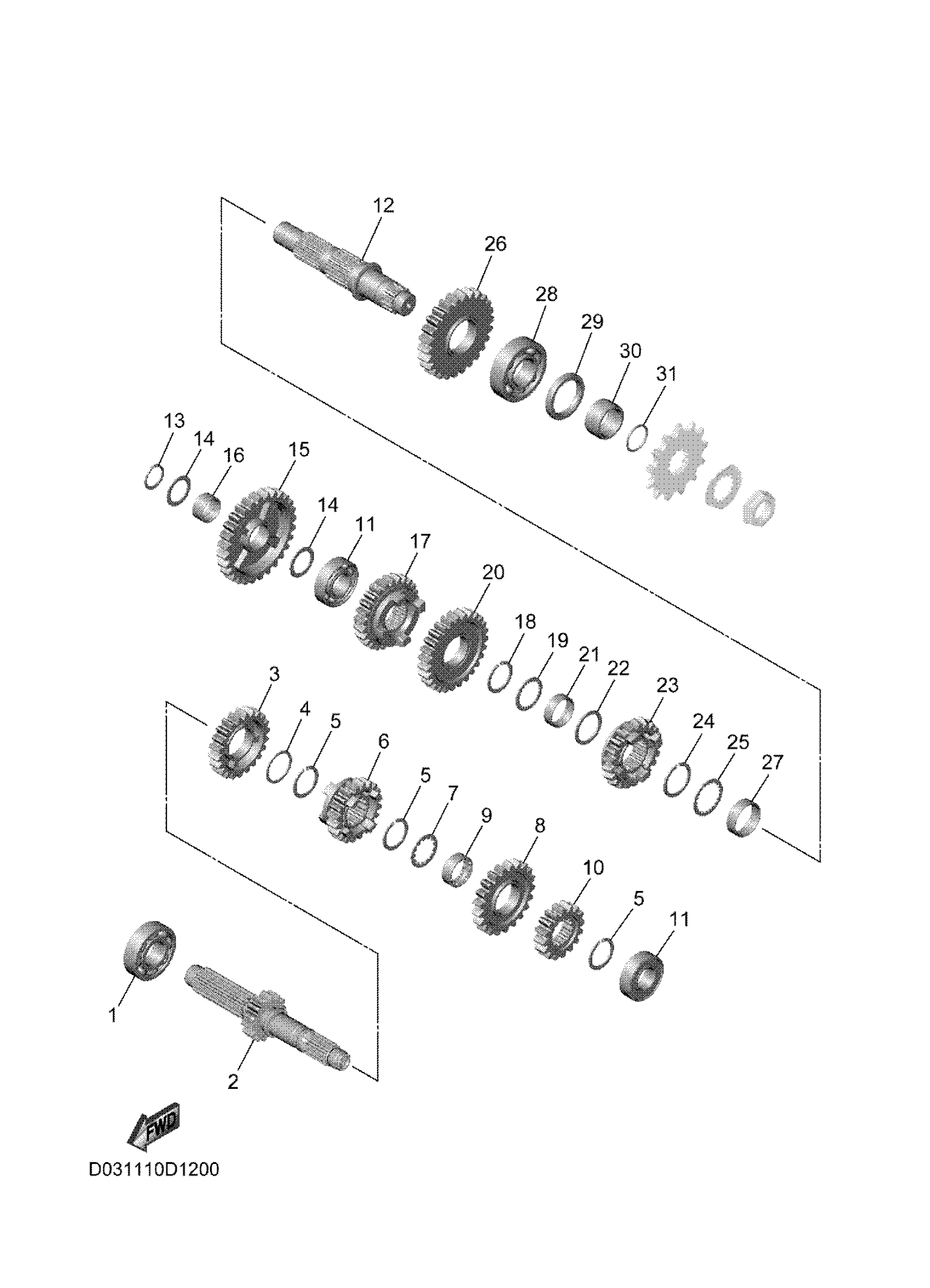

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-27210-00

$24.99

2

MAIN AXLE ASSY

D03-17401-00-00

Unavailable

3

GEAR, 4TH PINION

BHR-17141-11-00

Unavailable

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

D03-17131-00-00

Unavailable

7

WASHER(3VD)

90209-21332-00

$7.49

8

GEAR, 5TH PINION

D03-17151-00-00

Unavailable

9

COLLAR

90387-2113G-00

$40.99

10

GEAR, 2ND PINION

BHR-17121-00-00

$94.99

11

BEARING

93306-00447-00

$40.99

12

DRIVE AXLE ASSY

BHR-17402-00-00

$159.99

13

CIRCLIP (525)

93410-20038-00

$3.76

14

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

15

GEAR, 1ST WHEEL

BHR-17211-00-00

$135.99

16

COLLAR

90387-20028-00

Unavailable

17

GEAR, 4TH WHEEL

BHR-17241-00-00

Unavailable

18

CIRCLIP (4L0)

93440-25084-00

$5.60

19

WASHER, CLAW

90214-23002-00

Unavailable

20

GEAR, 3RD WHEEL

BHR-17231-00-00

Unavailable

21

COLLAR

90387-25041-00

Unavailable

22

WASHER, PLATE

90201-25028-00

Unavailable

23

GEAR, 5TH WHEEL

BHR-17251-00-00

Unavailable

24

CIRCLIP (2H7)

93440-28062-00

Unavailable

25

WASHER

90209-26348-00

Unavailable

26

GEAR, 2ND WHEEL

BHR-17221-00-00

Unavailable

27

COLLAR

90387-28032-00

Unavailable

28

BEARING(43G)

93306-20562-00

Unavailable

29

OIL SEAL

93102-32480-00

Unavailable

30

COLLAR

90387-25042-00

Unavailable

31

O-RING

93210-22298-00

Unavailable
