Description

Price

1

FUEL TANK COMP.

BHR-24110-00-00

$299.99

2

DAMPER, PLATE

90520-10045-00

Unavailable

3

MOLD, FUEL TANK

BHR-24188-00-00

$41.99

4

TUBE, FILLER

BHR-24114-00-00

$14.99

5

CAP ASSY

BR9-24610-00-00

$68.99

6

HOSE

90445-08050-00

$8.49

7

BOLT, WITH WASHER

90119-06262-00

$8.49

8

COLLAR

90387-06065-00

$12.49

9

GROMMET

90480-14037-00

$15.99

10

FUEL PUMP COMP.

BHR-13907-00-00

Unavailable

11

GASKET

3C1-24512-00-00

$22.99

12

FILTER

B3J-13915-00-00

$29.99

13

SEAL

B3J-2414G-00-00

$16.99

14

BRACKET, FUEL PUMP

BHR-24491-00-00

$58.99

15

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

$8.49

16

PIPE, FUEL 1

BHR-13971-01-00

Unavailable

17

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

18

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable

19

SCREW

90149-06021-00

Unavailable

20

COLLAR

90387-06284-00

Unavailable

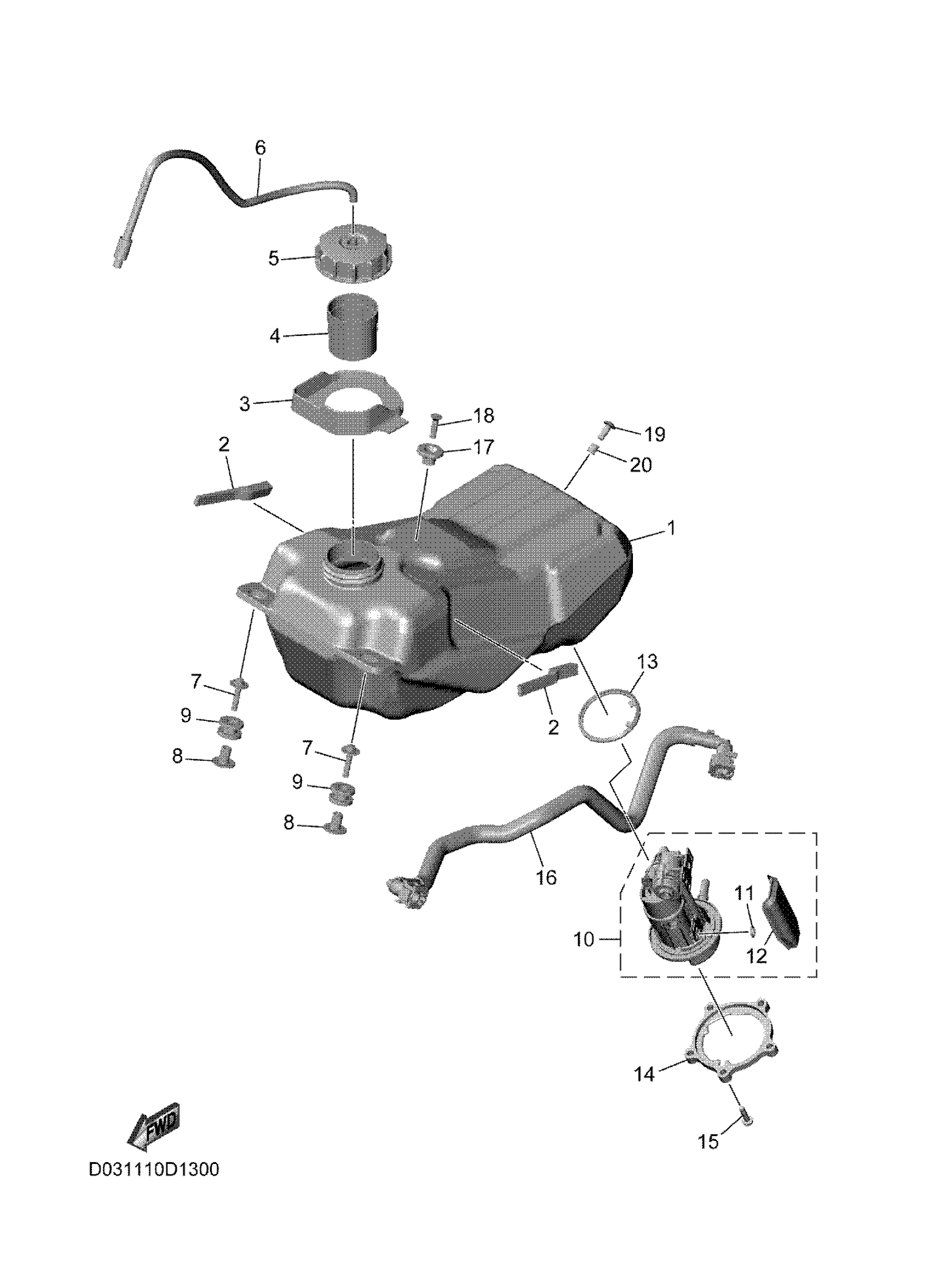

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 FUEL TANK Diagram

FUEL TANK COMP.

DAMPER, PLATE

MOLD, FUEL TANK

TUBE, FILLER

CAP ASSY

HOSE

BOLT, WITH WASHER

COLLAR

GROMMET

FUEL PUMP COMP.

GASKET

FILTER

SEAL

BRACKET, FUEL PUMP

BOLT, HEXAGON SOCKET HEAD

PIPE, FUEL 1

BRACKET, SEAT

SCREW, CROSSRECESS (8G6)

SCREW

COLLAR
