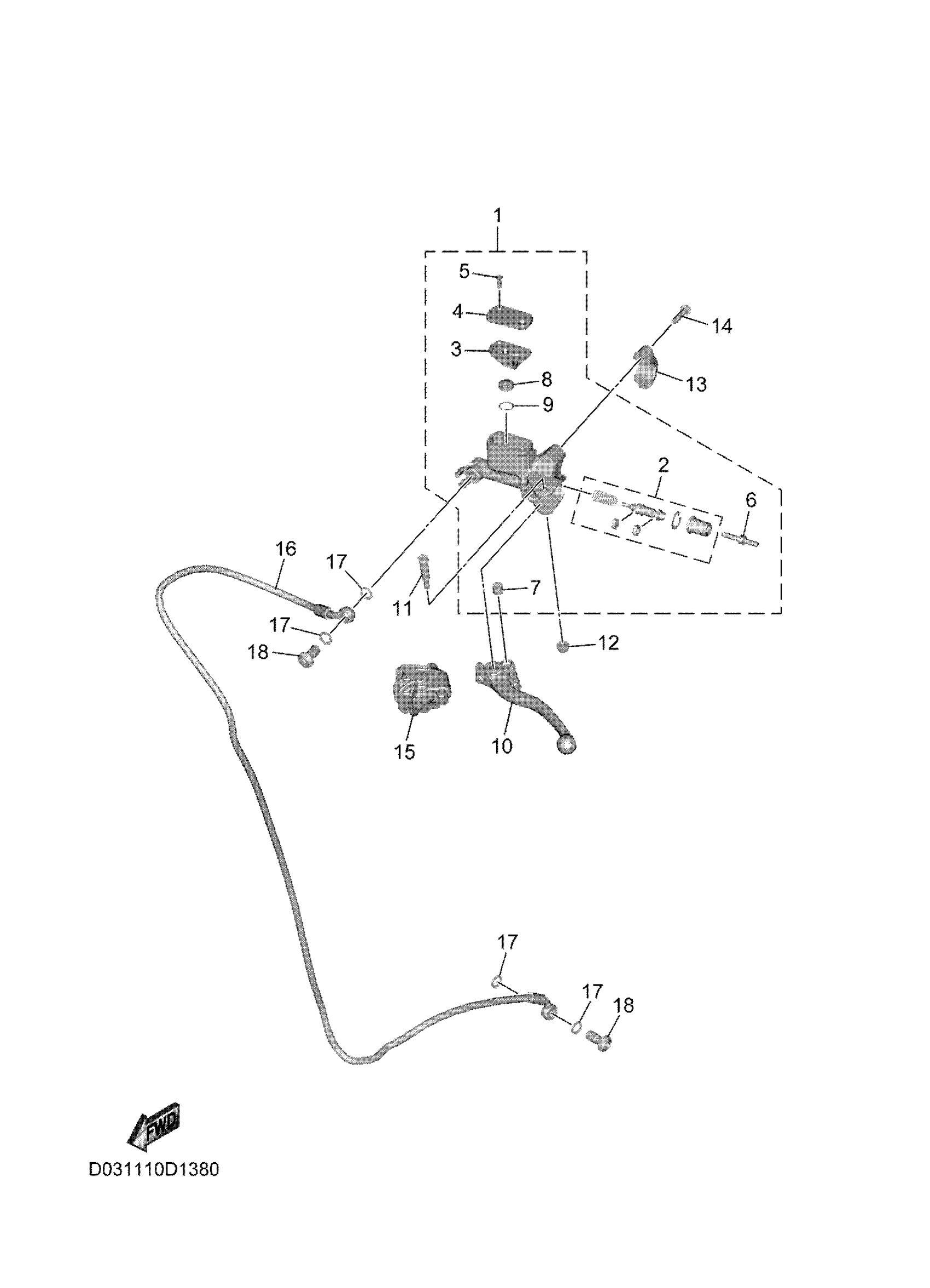

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 FRONT MASTER CYLINDER 2 Diagram

MASTER CYLINDER SUB ASSY

D03-26401-00-00

Unavailable

. CYLINDER KIT, MASTER (CLUTCH)

D03-26402-00-00

Unavailable

DIAPHRAGM, RESERVOIR

D03-25854-00-00

Unavailable

CAP, RESERVOIR

D03-25852-00-00

Unavailable

SCREW, FLAT

98707-04012-00

$2.18

ROD, PUSH

5YU-26464-00-00

Unavailable

. BUSH

D03-26455-00-00

Unavailable

SEPARATOR ASSY

5CG-25715-00-00

$13.49

CIRCLIP

5CG-2585G-00-00

$5.49

LEVER 1

D03-83912-00-00

Unavailable

BOLT, LEVER

3B4-2589F-00-00

Unavailable

NUT, FLANGE

95702-06500-00

$2.39

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

BOLT, FITTING

5MV-25833-00-00

$6.99

COVER, HANDLE LEVE

D03-26372-00-00

Unavailable

HOSE, CLUTCH 1

D03-26472-00-00

Unavailable

GASKET

90430-10005-00

Unavailable

BOLT, UNION

90401-10172-00

Unavailable
