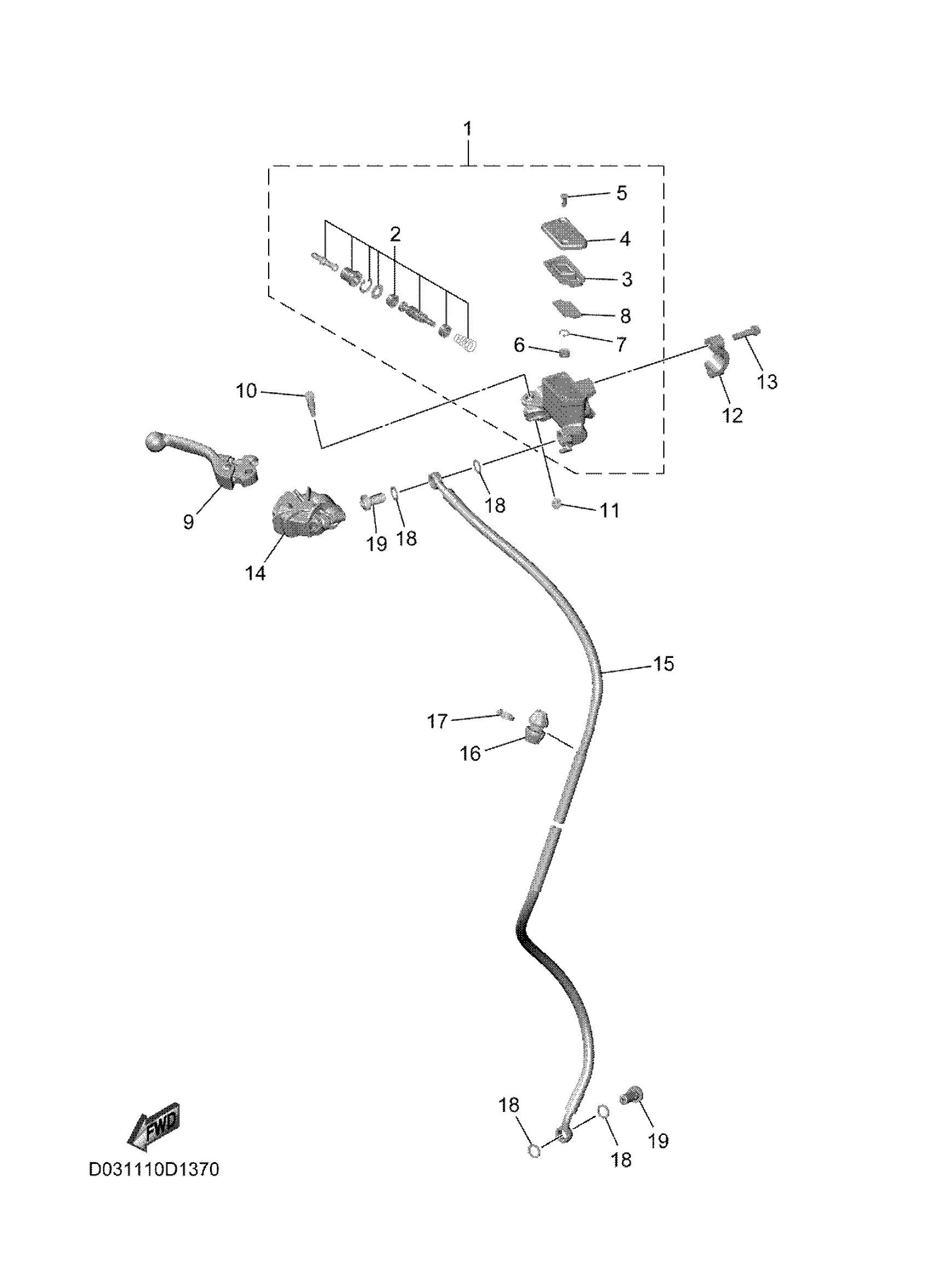

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5XC-W2587-00-00

$296.99

2

CYLINDER KIT, MASTER

5XC-W0041-00-00

$61.99

3

DIAPHRAGM, RESERVOIR

5XC-25854-G0-00

$13.49

4

CAP, RESERVOIR

5XC-25852-G0-00

$23.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

SEPARATOR ASSY

5CG-25715-00-00

$13.49

7

CIRCLIP

5CG-2585G-00-00

$5.49

8

FLOAT, RESERVOIR

5XC-25853-G0-00

$5.49

9

LEVER 2

B2W-83922-00-00

$43.99

10

BOLT, LEVER

5MV-2589F-00-00

$6.99

11

NUT, FLANGE(7NB)

95780-06500-00

$2.60

12

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

13

BOLT, FITTING

5MV-25833-00-00

$6.99

14

COVER, HANDLE LEVER 1

5XC-26372-G0-00

$22.99

15

HOSE, BRAKE 1

BHR-25872-00-00

$222.99

16

PROTECTOR, BRAKE HOSE

BHR-25881-00-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

GASKET

90430-10005-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable
