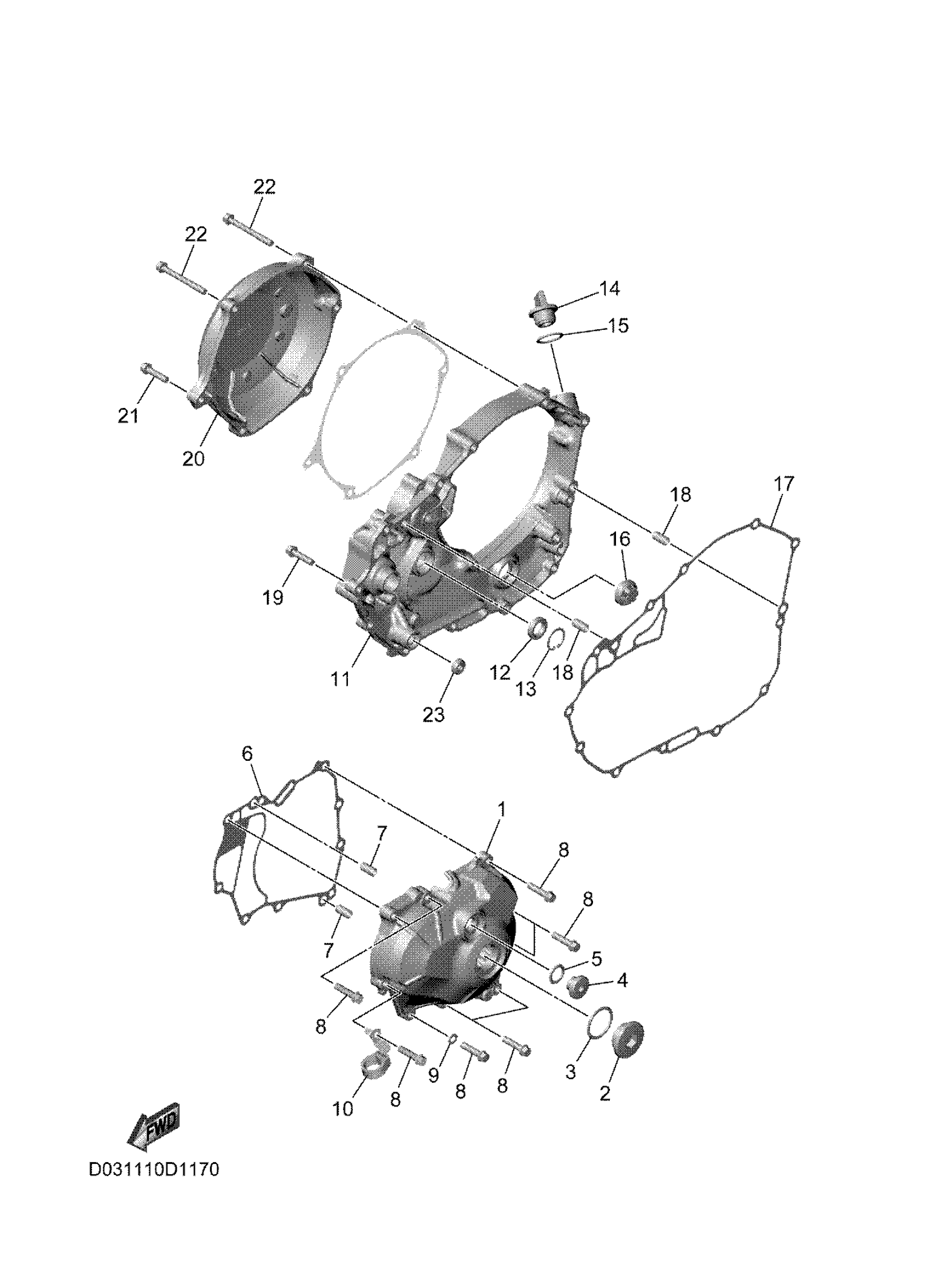

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

BHR-15411-00-00

$144.99

2

PLUG, STRAIGHT SCREW

90340-27007-00

Unavailable

3

O-RING(1KT)

93210-27778-00

$8.49

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE

BHR-15451-00-00

Unavailable

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

9

GASKET 256113960000

90430-06014-00

Unavailable

10

HOLDER

D03-1546C-00-00

Unavailable

11

COVER, CRANKCASE 3

BHR-15431-00-00

$161.99

12

OIL SEAL(4GY)

93101-14164-00

$11.49

13

CIRCLIP

99009-22500-00

$8.49

14

PLUG, OIL

3Y1-15363-10-00

$18.49

15

O-RING (646)

93210-19123-00

Unavailable

16

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

17

GASKET, CRANKCASE

BHR-15462-00-00

Unavailable

18

PIN, DOWEL(3XW)

91808-16023-00

$8.49

19

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

20

COVER, 1

BHR-15415-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

22

BOLT, FLANGE DEEP

95E32-06055-00

Unavailable

23

SEAT, CHECK BALL

583-13113-00-00

Unavailable
